Electrical Diagrams




Automatic Transmission Controls Schematics

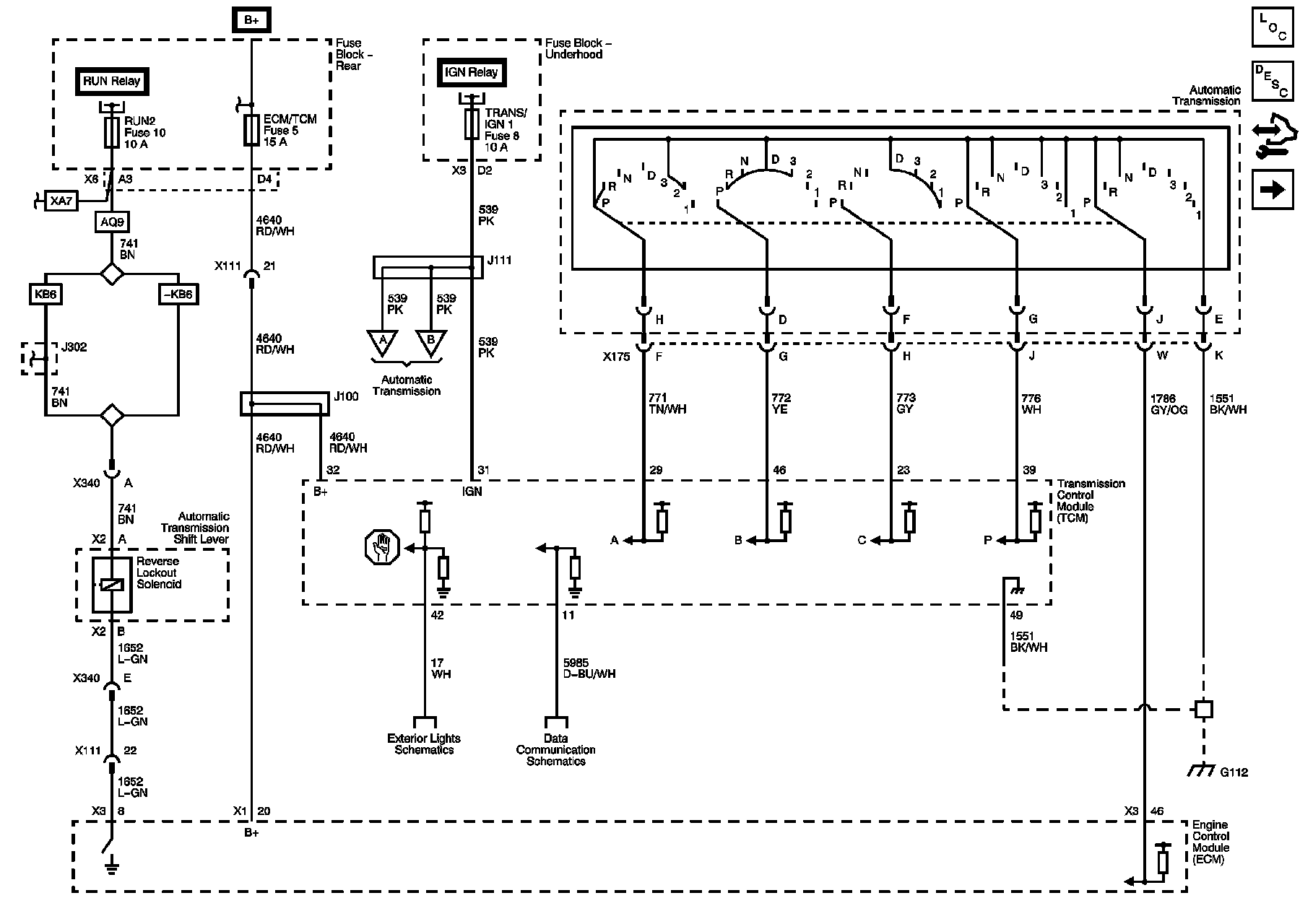

TCM Power and Ground

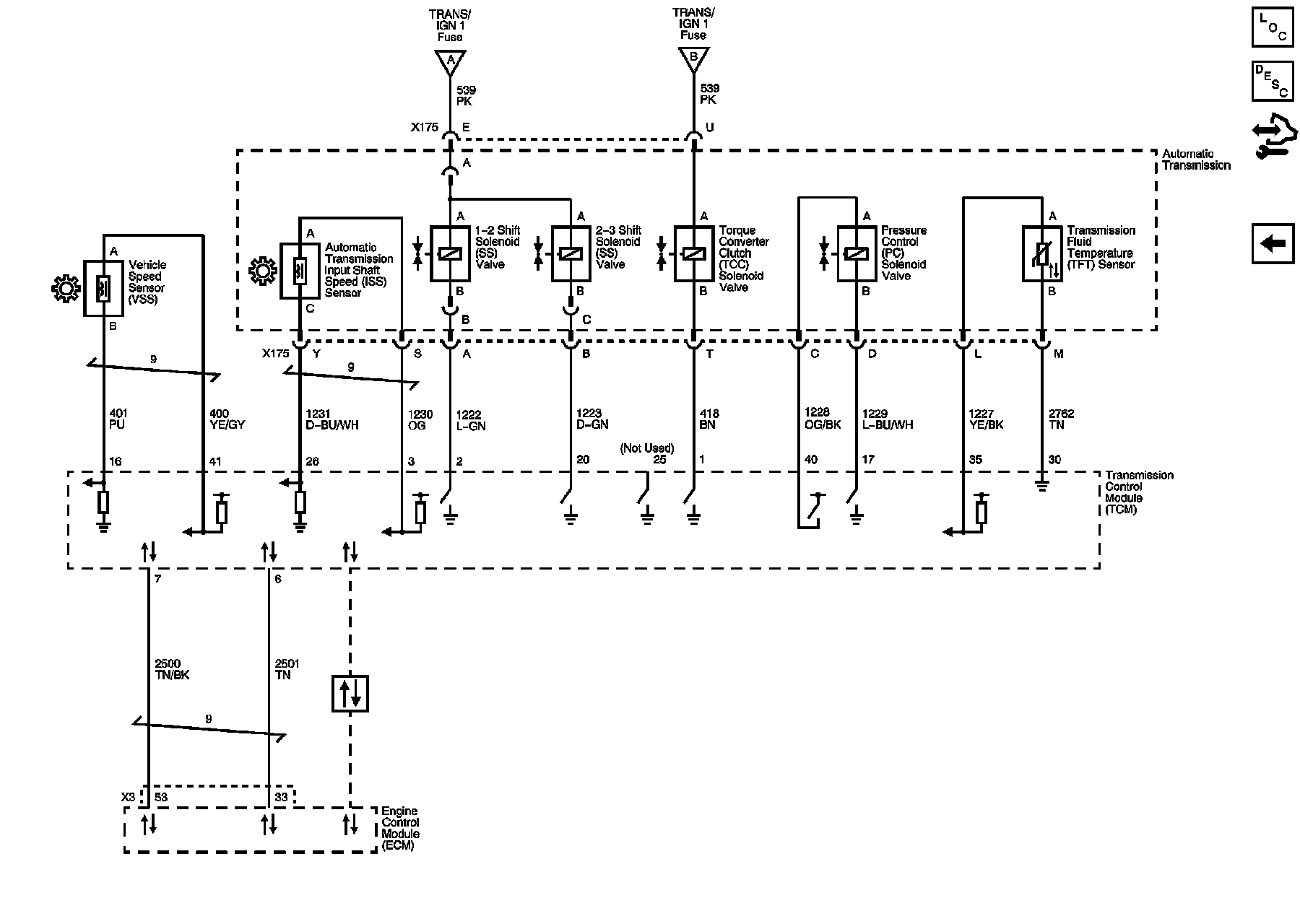

Transmission Solenoids and VSS
