Seat Belt Retractor: Locations

Passenger Compartment/Roof Component Views

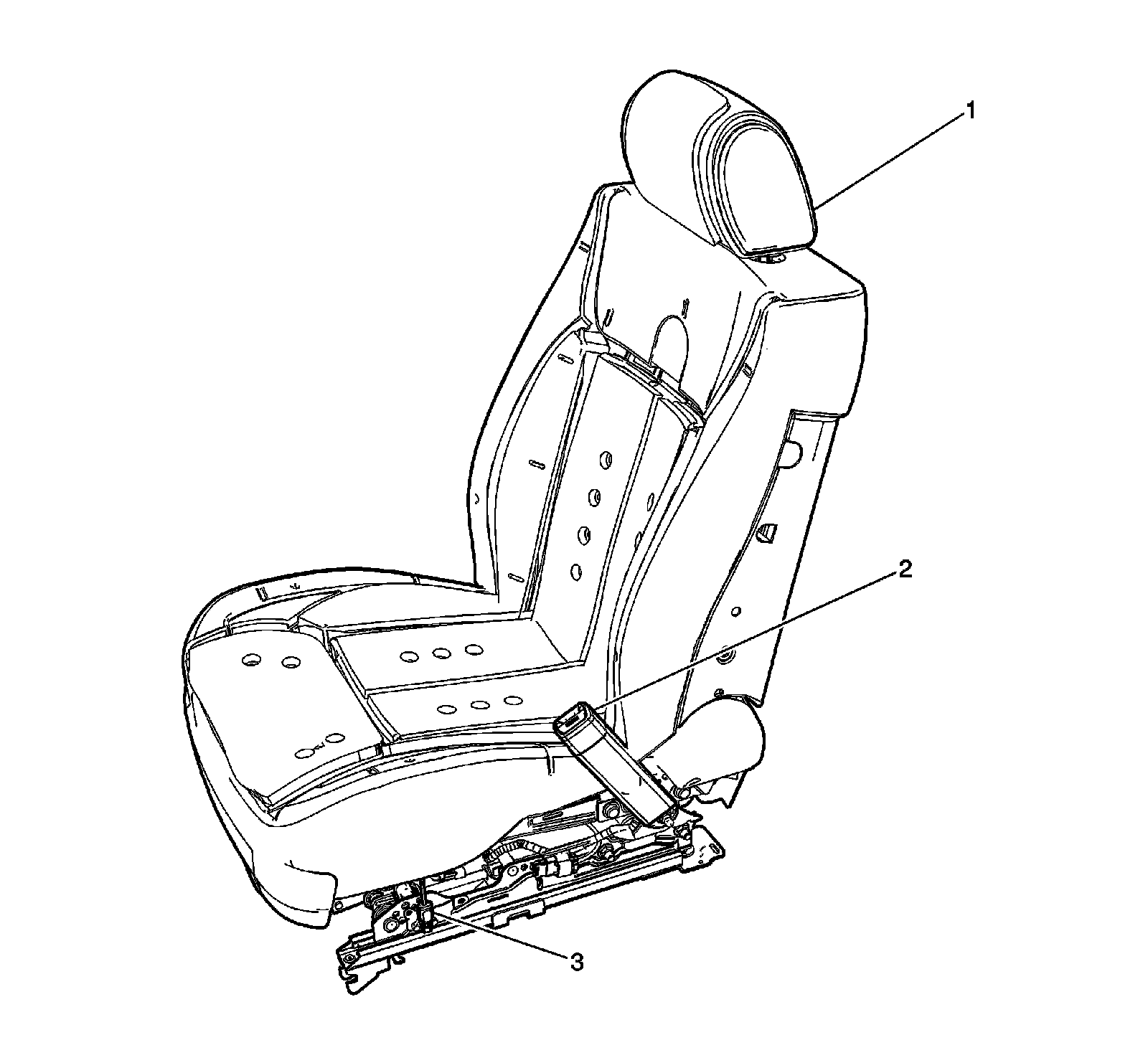

Passenger Seat (2 of 2)




1 - Passenger Seat
2 - Inflatable Restraint Passenger Seat Belt Tension Sensor (Part of Seat Buckle Assembly)
3 - Inflatable Restraint Seat Position Sensor (SPS) - Right
