Electrical Diagrams
SIR Schematics

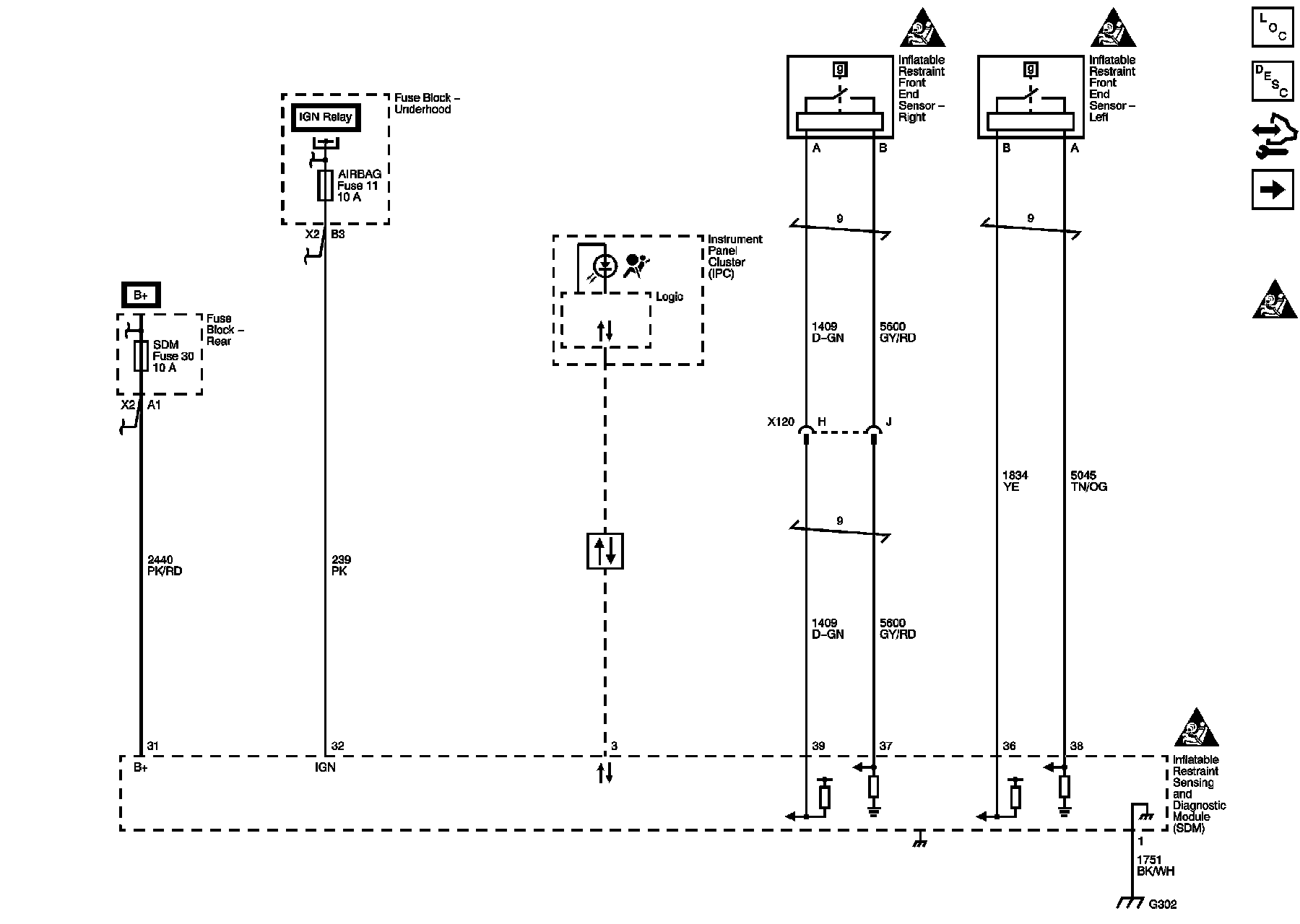

Indicators, Power, Ground, Front End Sensors

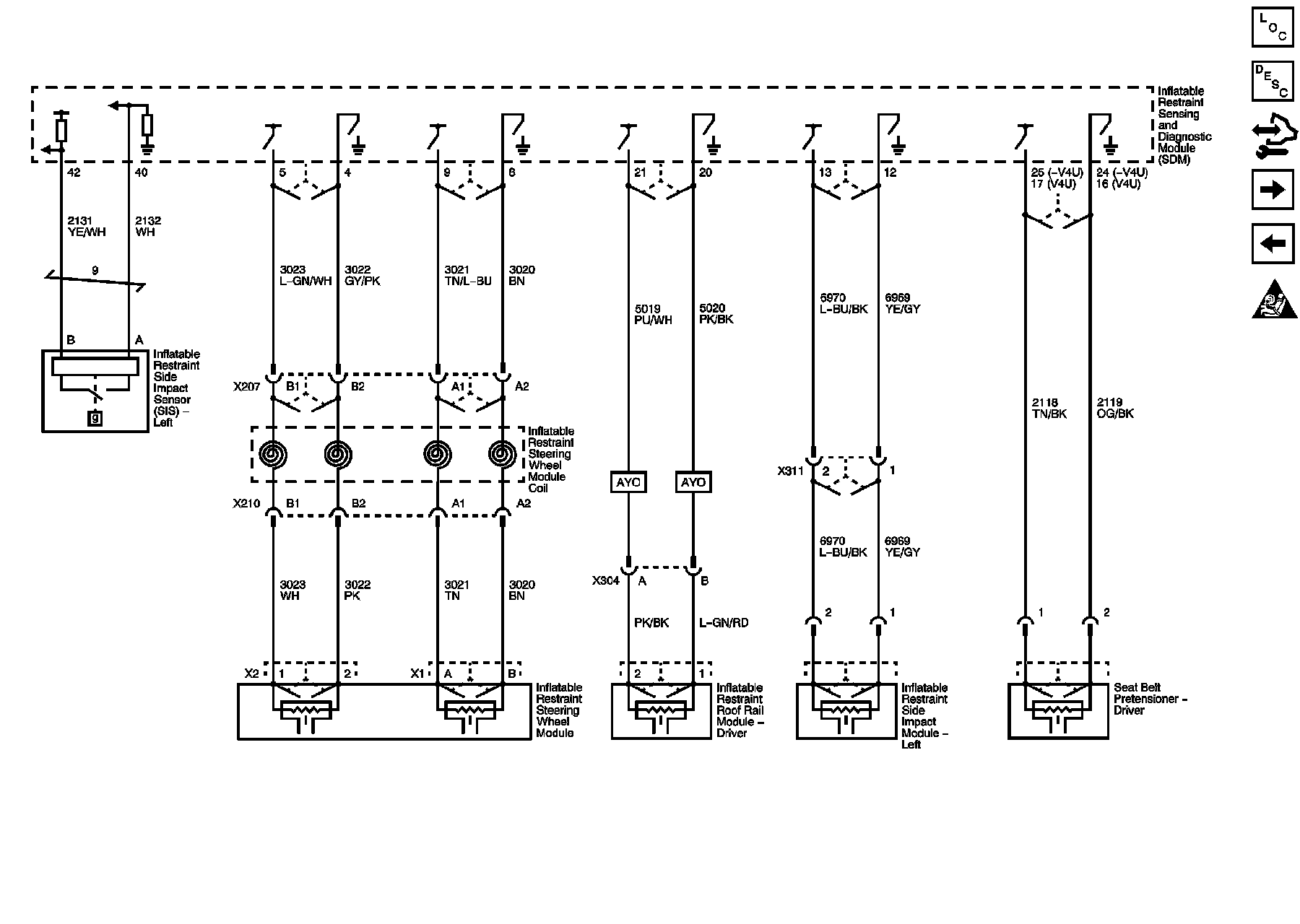

Left Side Impact Sensor and Module, Roof Rail Module, Steering Module Pretensioner

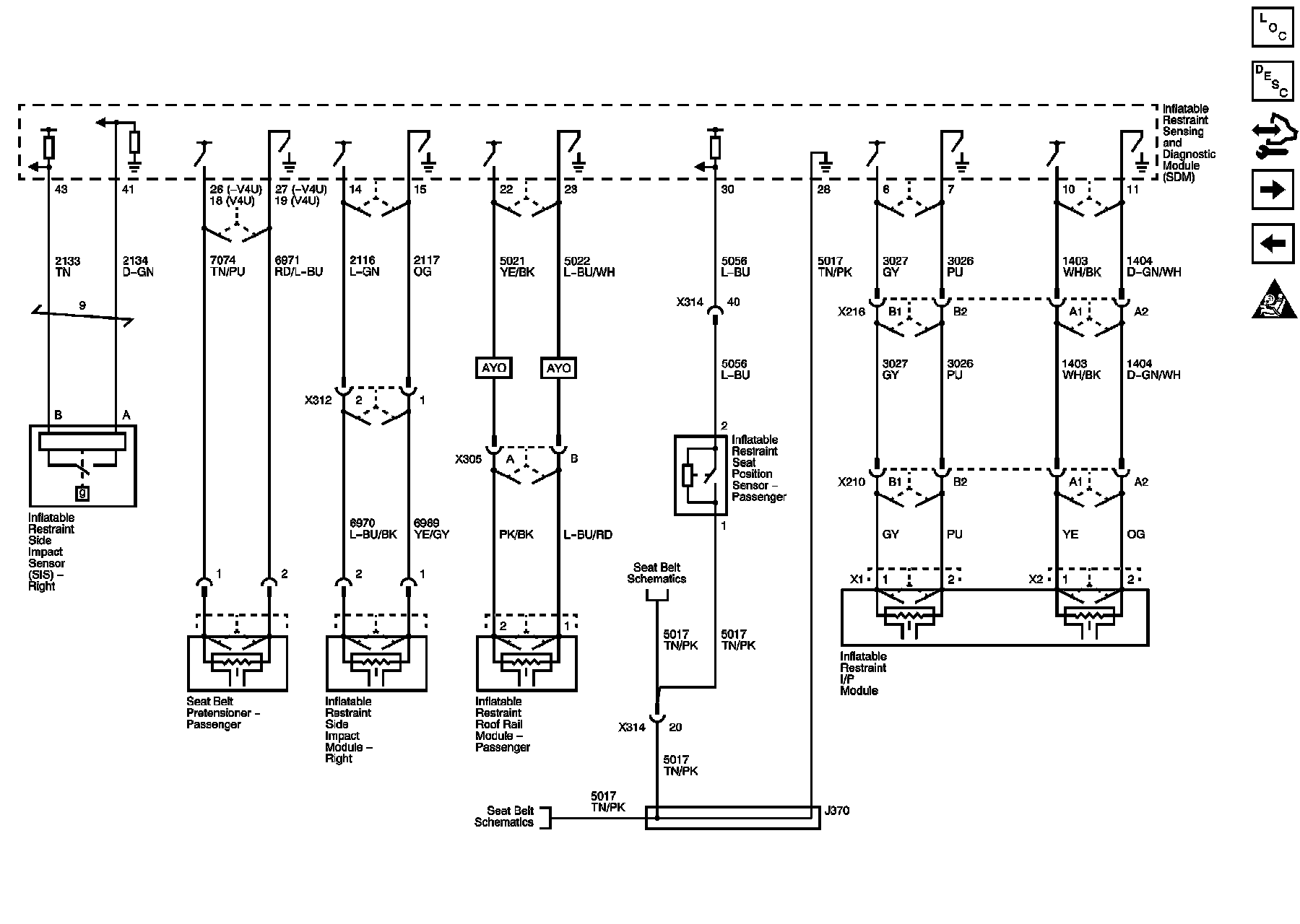

Right Side Impact Sensor and Module, Roof Rail Module, I/P Module, Pretensioner

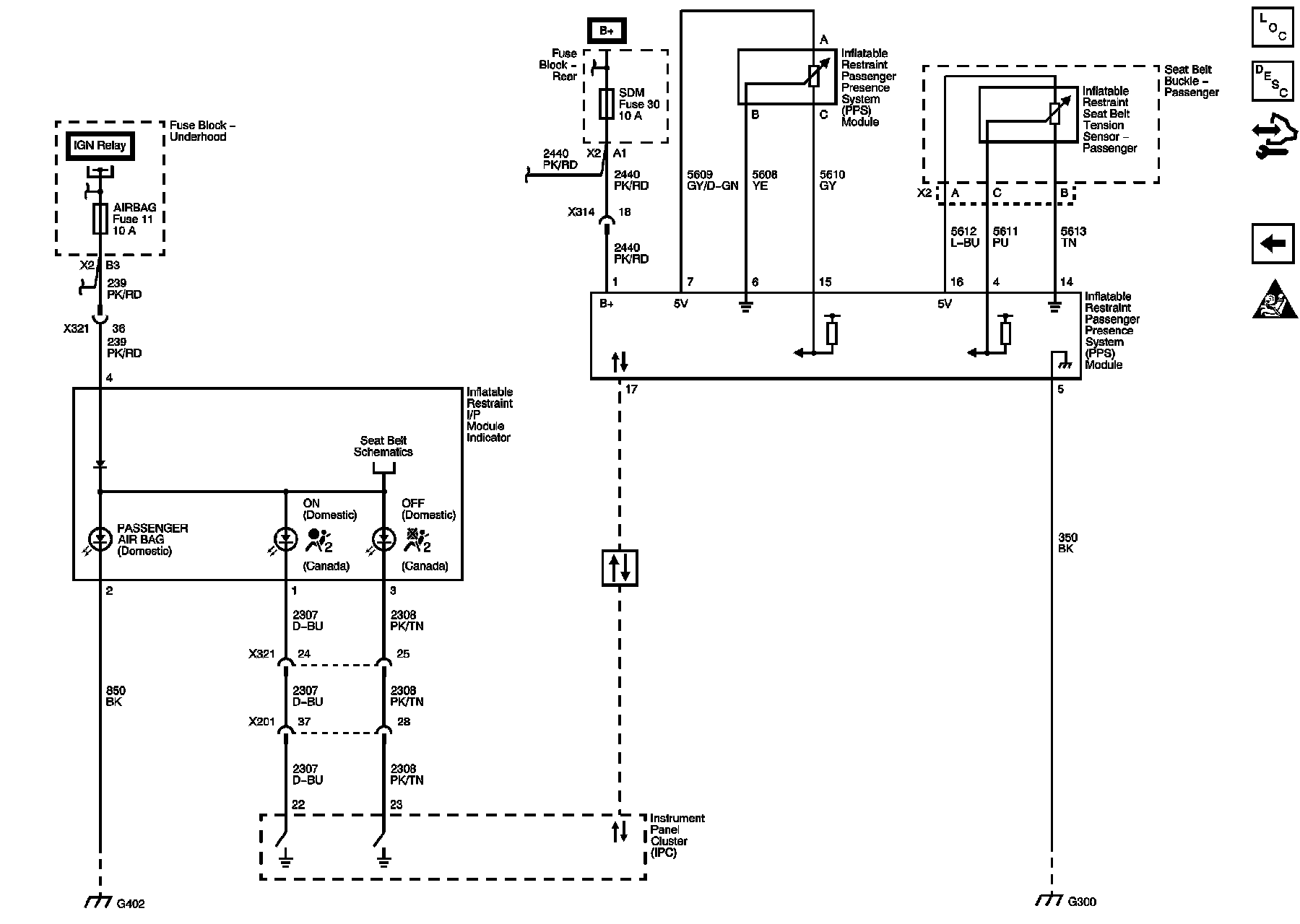

Passenger Presence System
