Wheels/Vehicle Underbody Component Views




Wheels/Vehicle Underbody Component Views

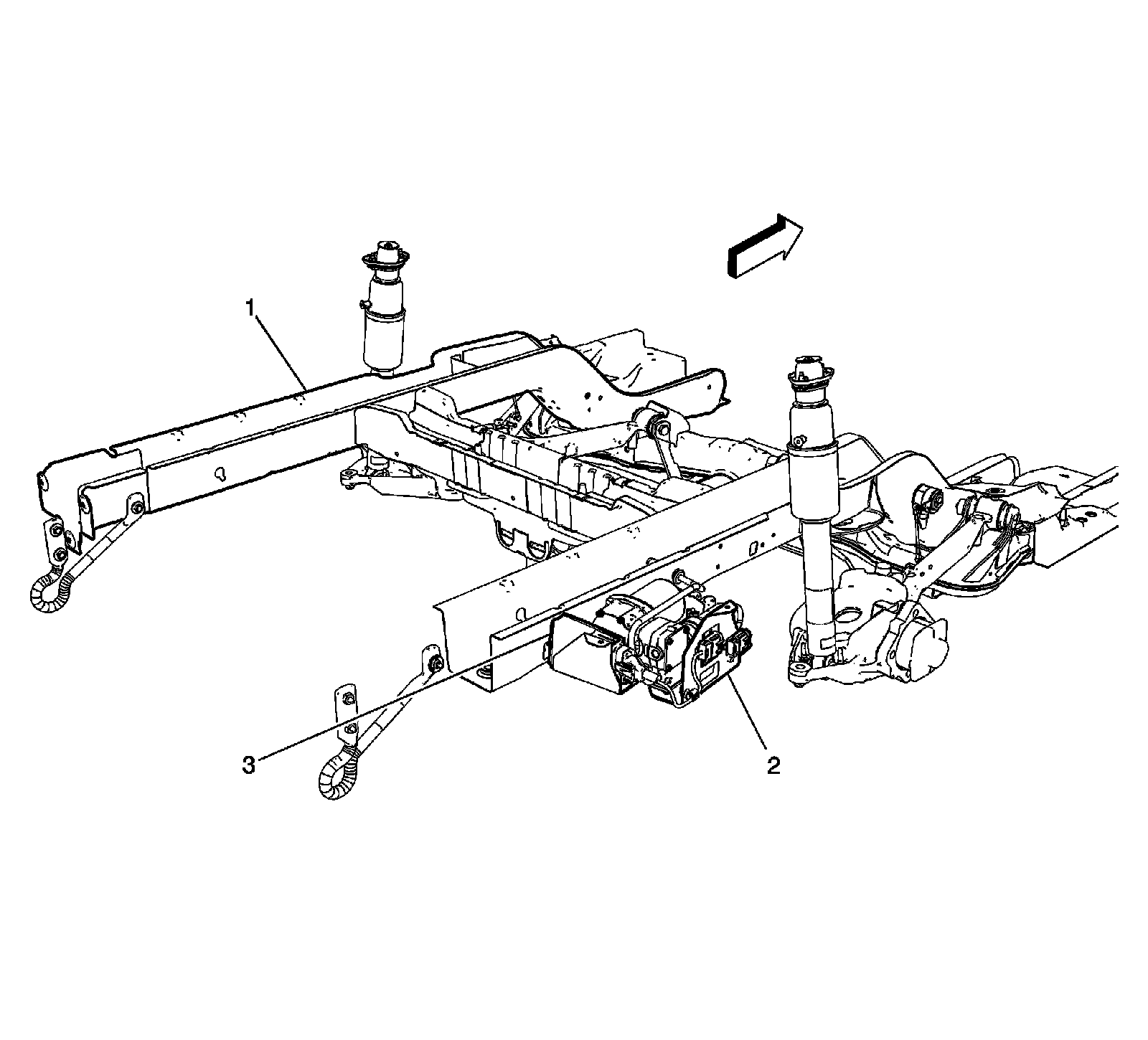

Rear Frame Underbody




1 - Left Rear Compartment Floor Rail
2 - Air Compressor Unit
3 - Air Suspension Control Module (F38)
