Fuel Injector: Diagrams




Component Connector End Views

Fuel Injector 1





Fuel Injector 2

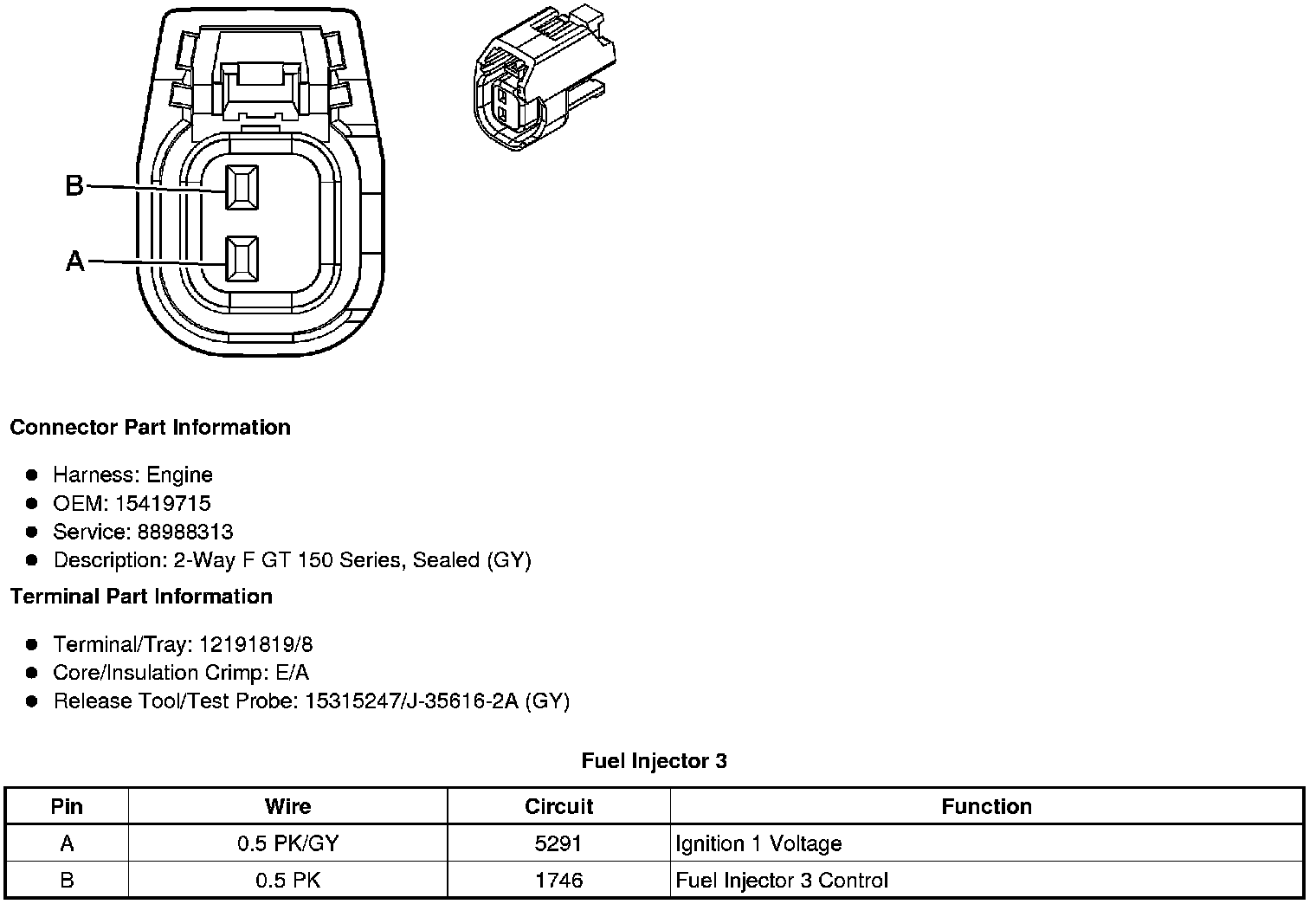

Fuel Injector 3

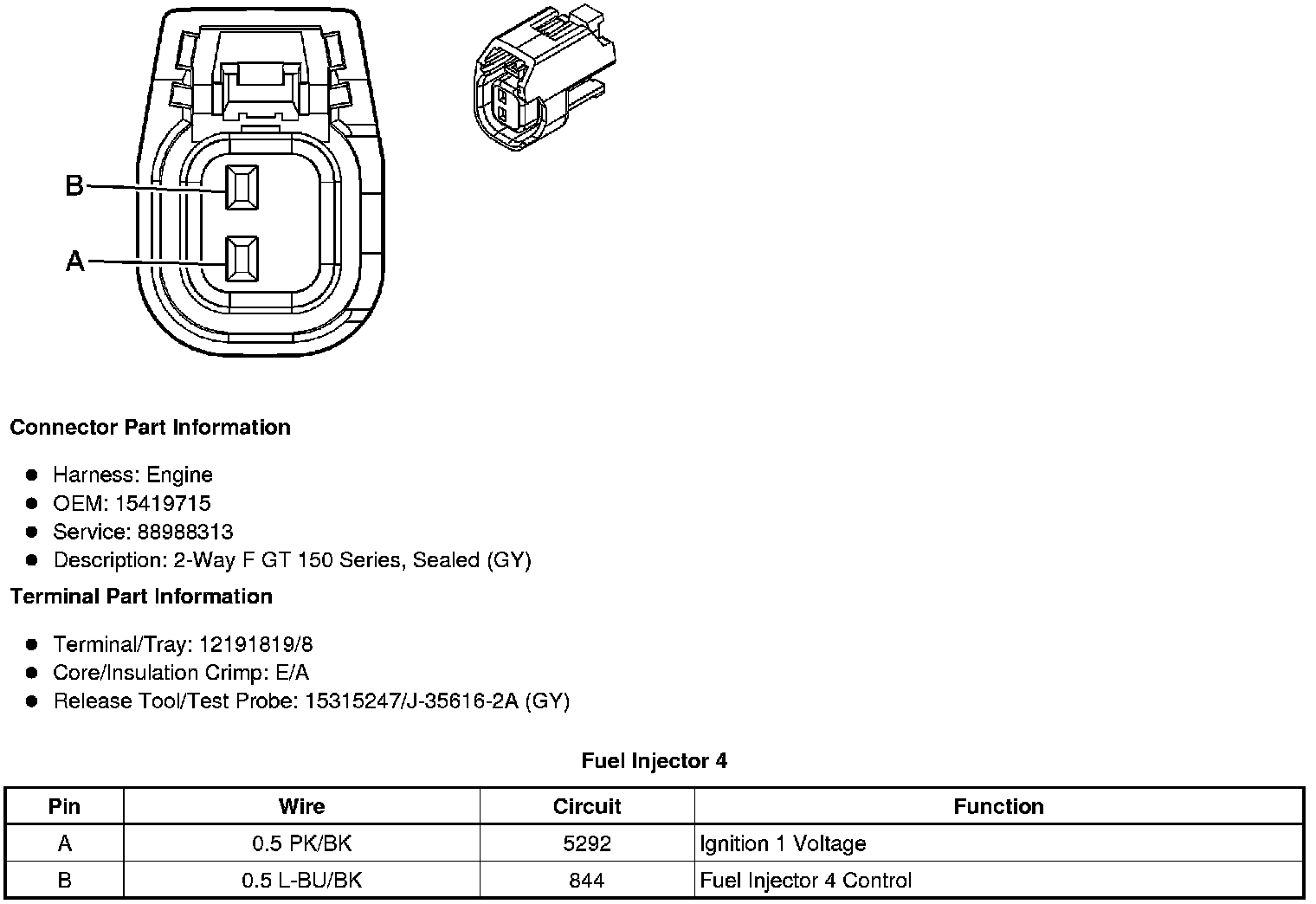

Fuel Injector 4

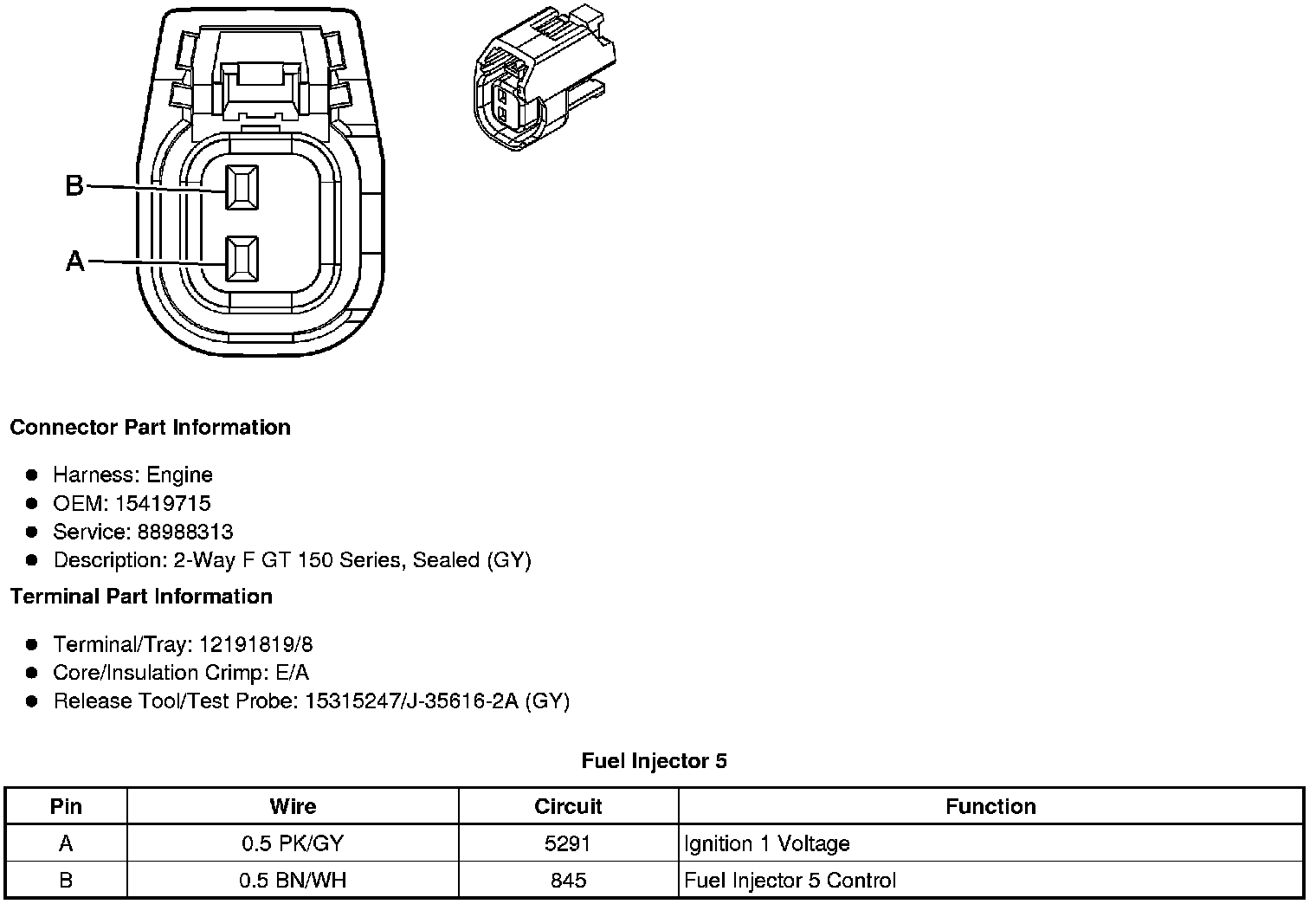

Fuel Injector 5





Fuel Injector 6





Fuel Injector 7

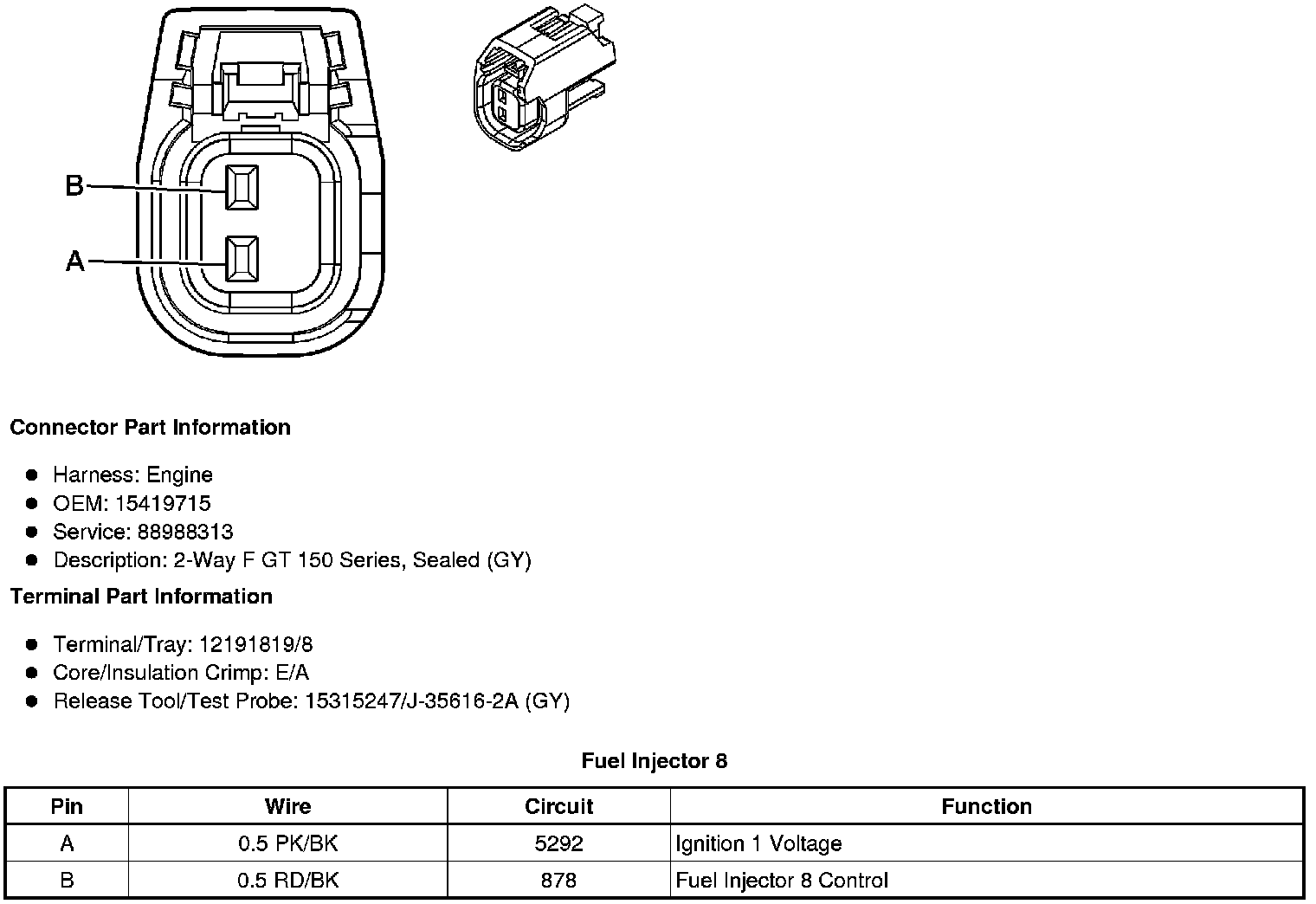

Fuel Injector 8
