Canister Vent Valve: Service and Repair

Evaporative Emission Canister Vent Solenoid Valve Replacement

Removal Procedure




1. Remove the evaporative emission (EVAP) canister. Refer to Evaporative Emission Canister Replacement (Service and Repair).
2. Place the EVAP canister on a suitable work surface.

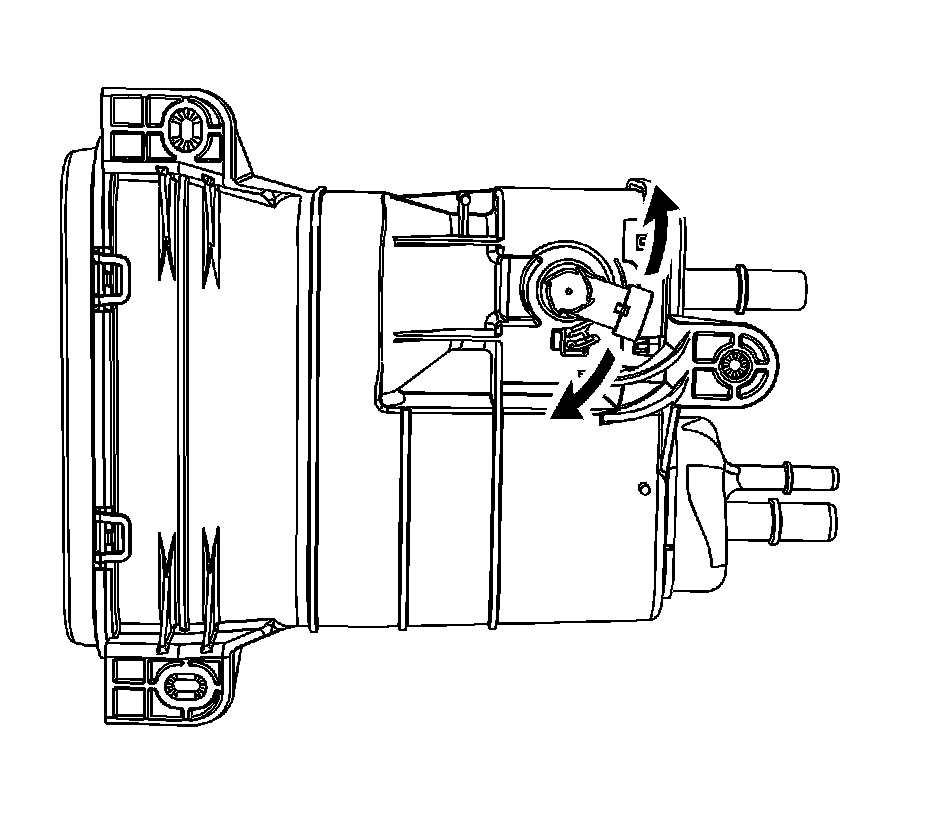

3. Rotate the EVAP canister vent solenoid valve counterclockwise.

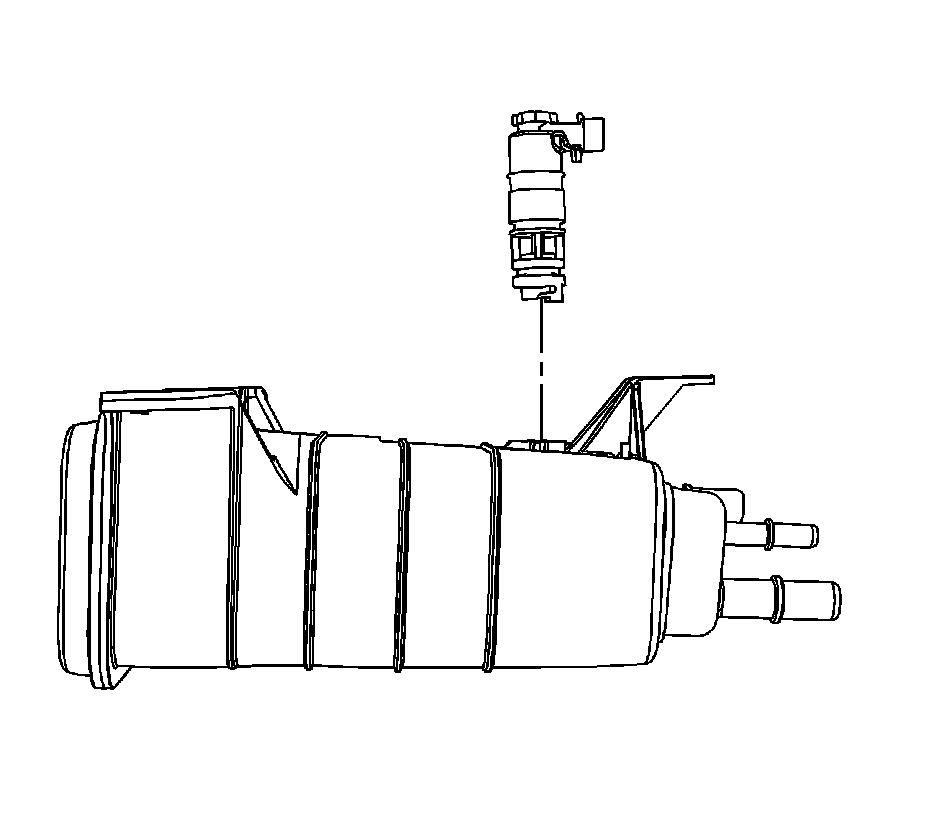

4. Remove the EVAP canister vent solenoid valve.

Installation Procedure




1. Install the EVAP canister vent solenoid valve.




2. Rotate the EVAP canister vent solenoid valve clockwise until the solenoid valve comes to a stop in the retainer.
3. Install the evaporative emission (EVAP) canister. Refer to Evaporative Emission Canister Replacement (Service and Repair).
