Canister Vent Valve: Locations




Wheels/Vehicle Underbody Component Views

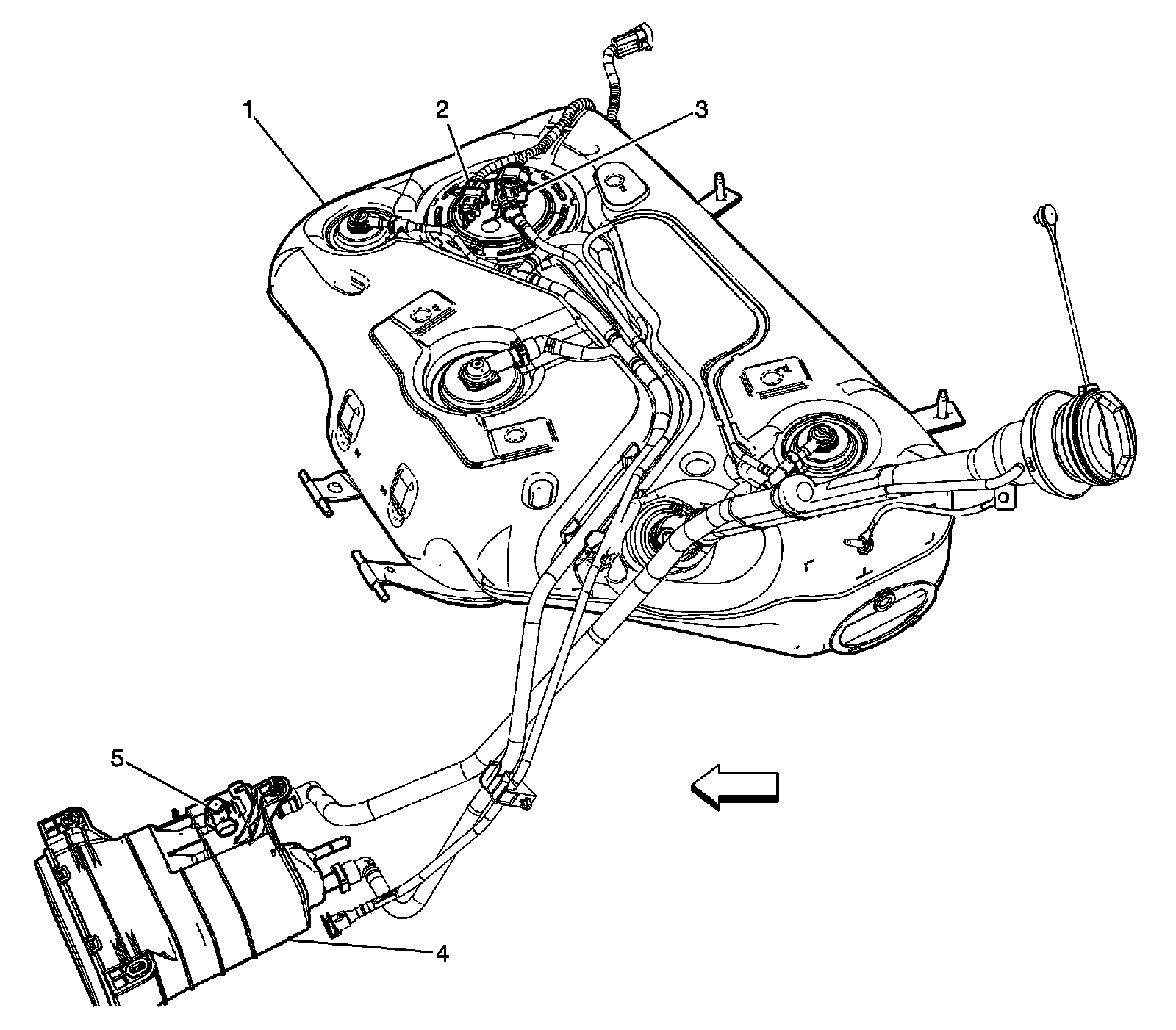

Fuel Tank/Emission Components (1 of 2)




1 - Fuel Tank
2 - Fuel Tank Pressure Sensor
3 - Fuel Pump and Sender Assembly
4 - Evaporative Emission (EVAP) Canister
5 - Evaporative Emission (EVAP) Canister Vent Solenoid Valve
