Engine Harness Routing - Splices




Harness Routing Views

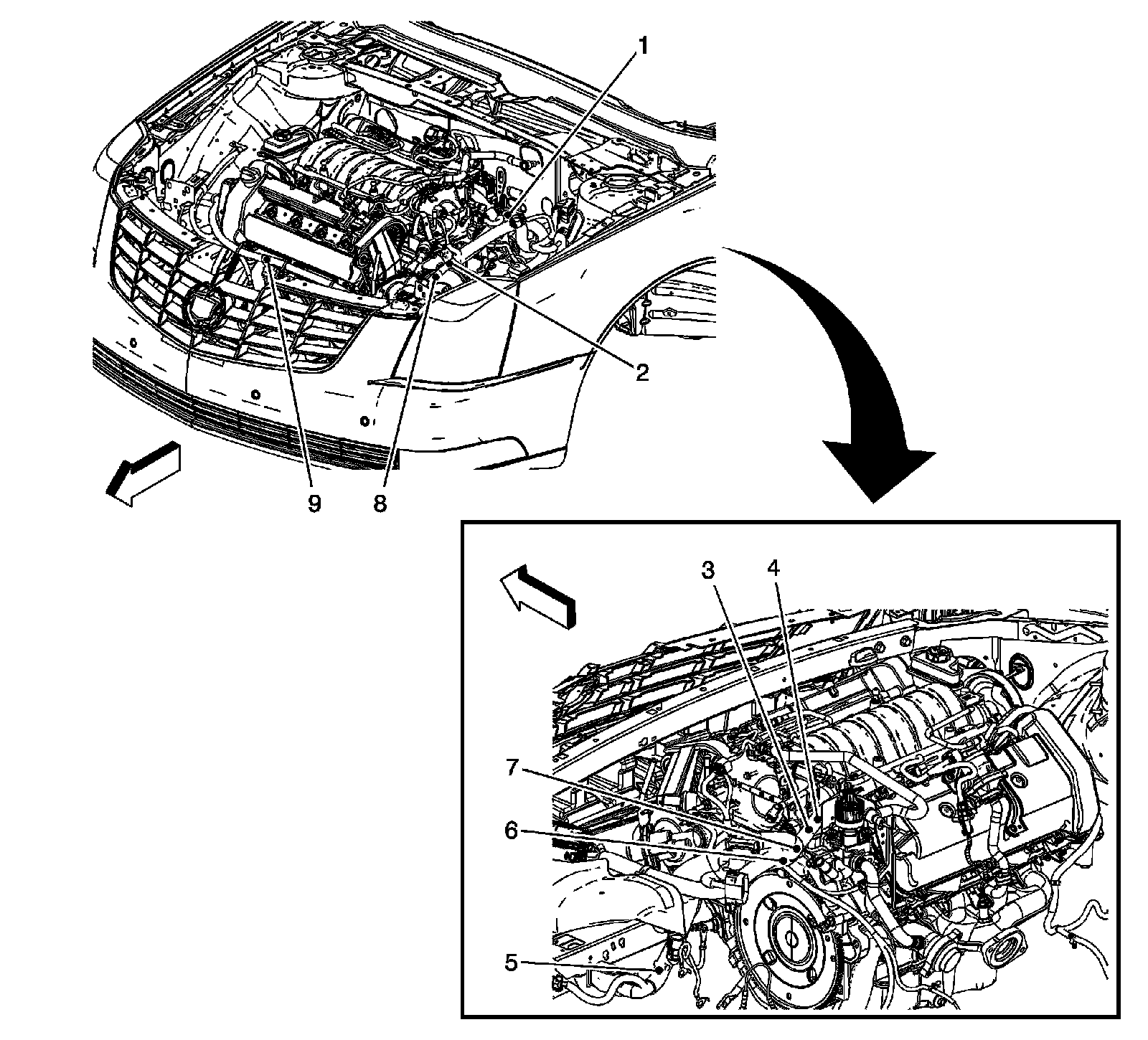

Engine Harness Routing - Splices




1 - J104
2 - J106
3 - J102
4 - J109
5 - J108
6 - J110
7 - J100
8 - J105
9 - J111
