Turn Signal Lamp: Diagrams




Component Connector End Views

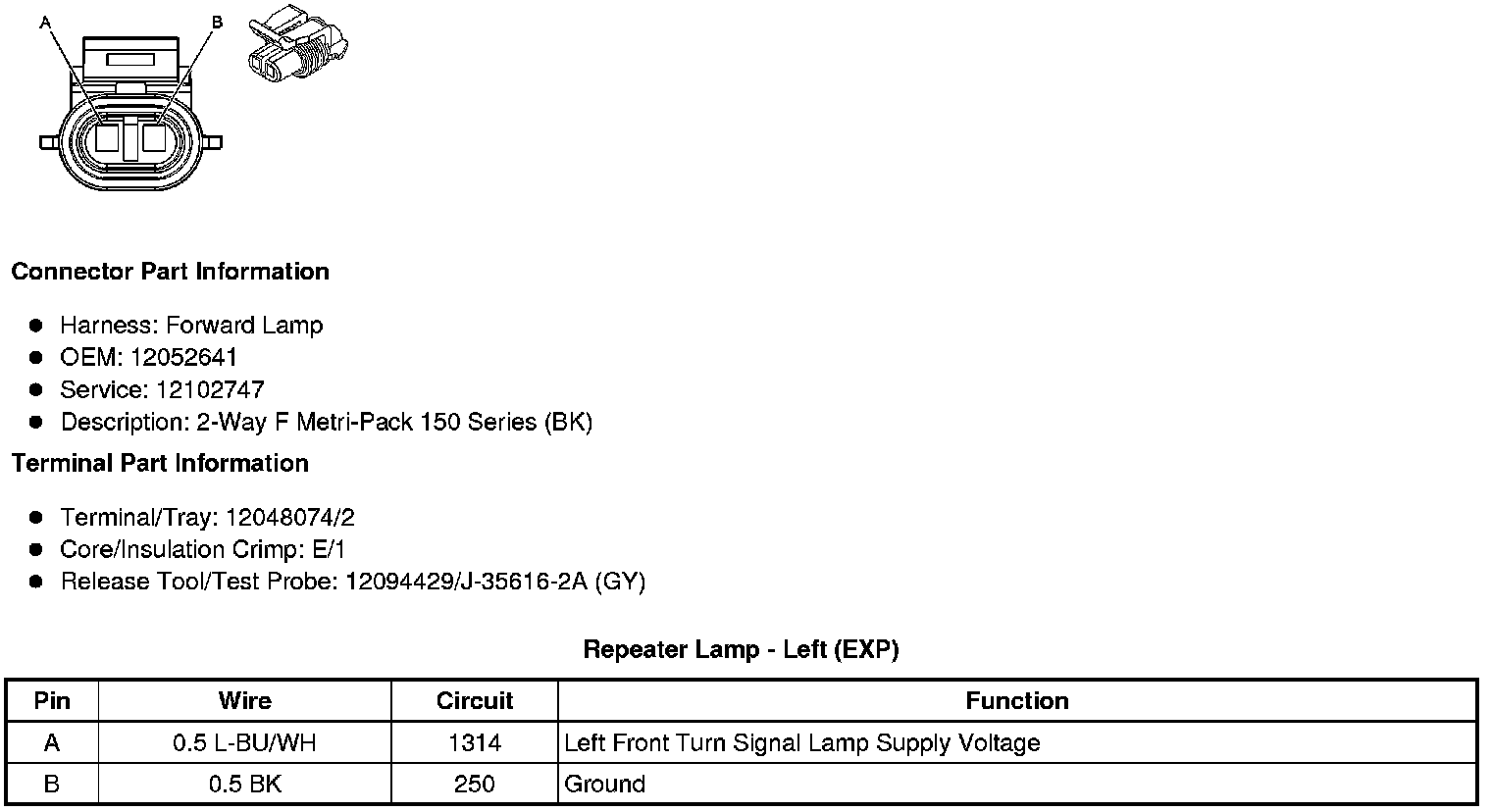

Repeater Lamp - Left (EXP)

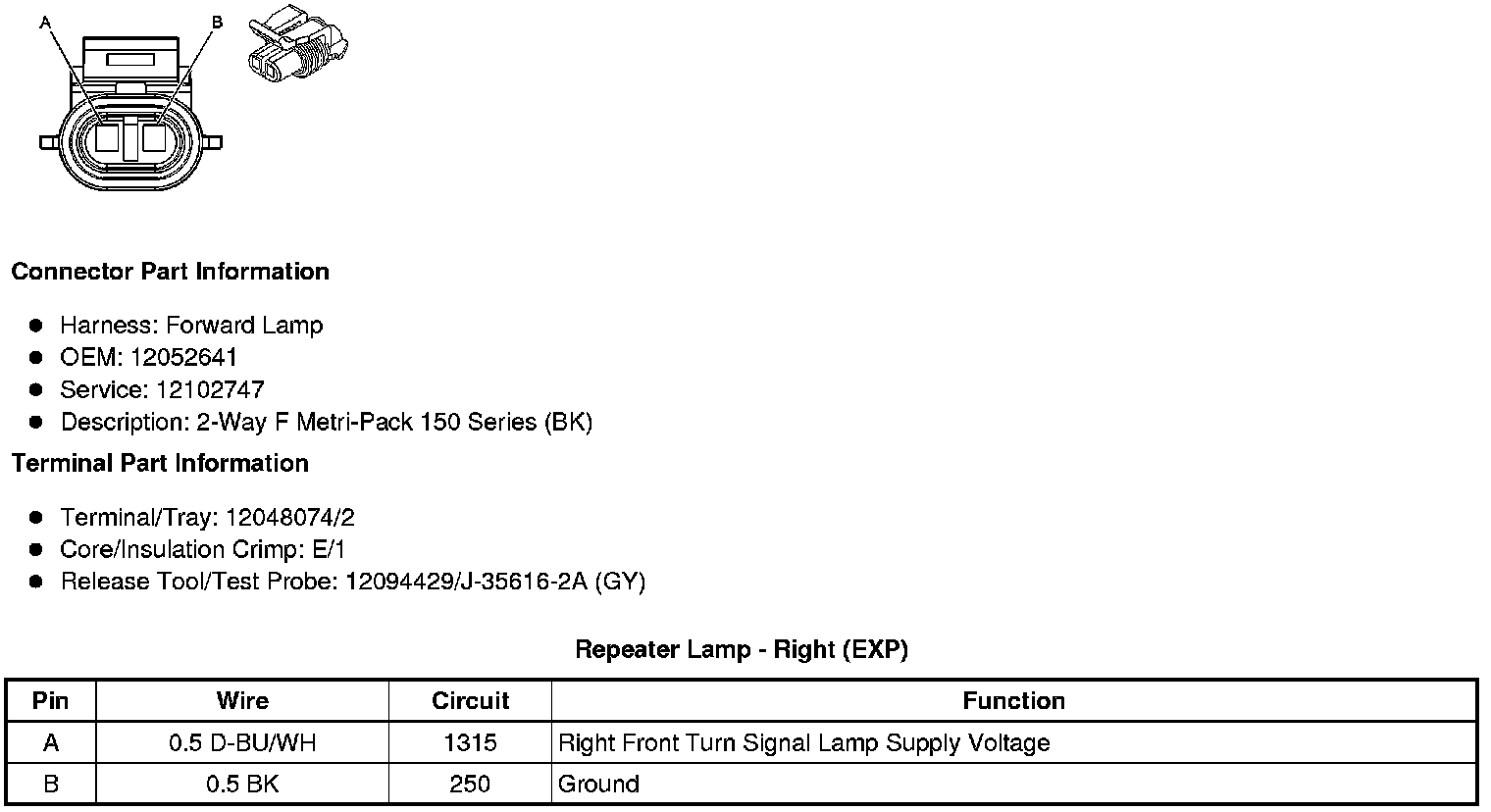

Repeater Lamp - Right (EXP)





Turn Signal/DRL Lamp - Left Front





Turn Signal/DRL Lamp - Right Front
