Parking Lamp: Diagrams




Component Connector End Views

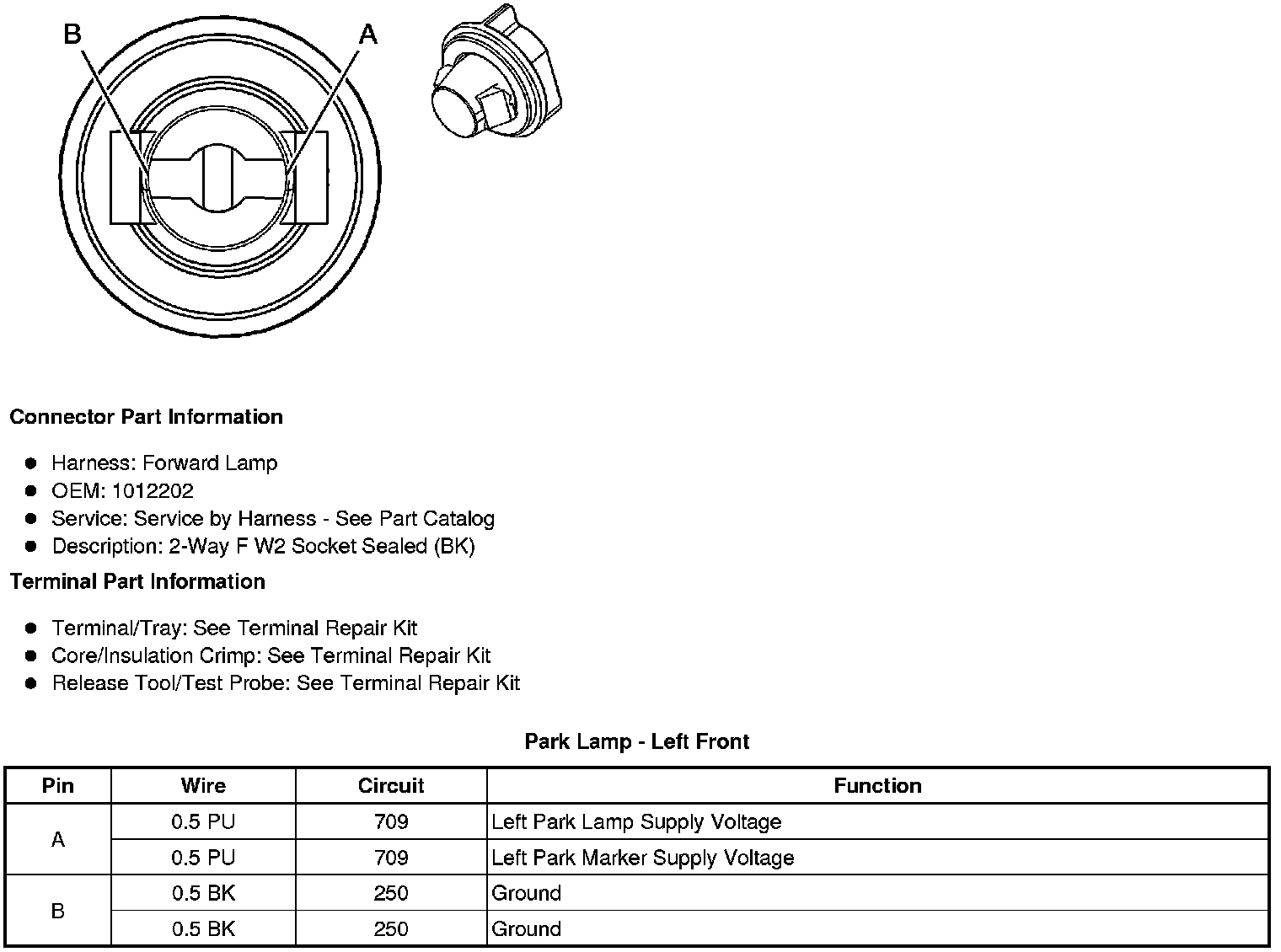

Park Lamp - Left Front

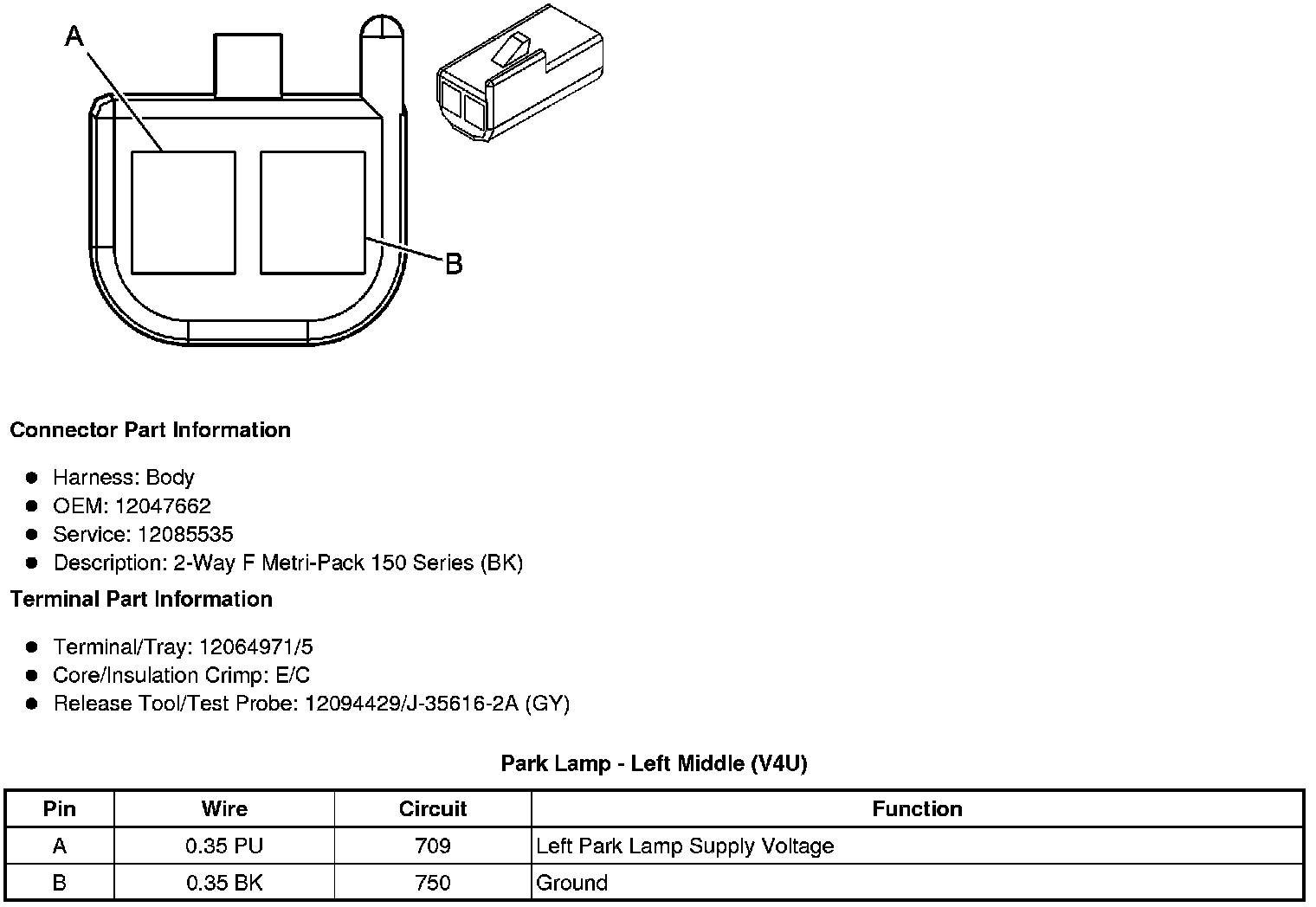

Park Lamp - Left Middle (V4U)





Park Lamp - Left Rear (V4U, B9Q)

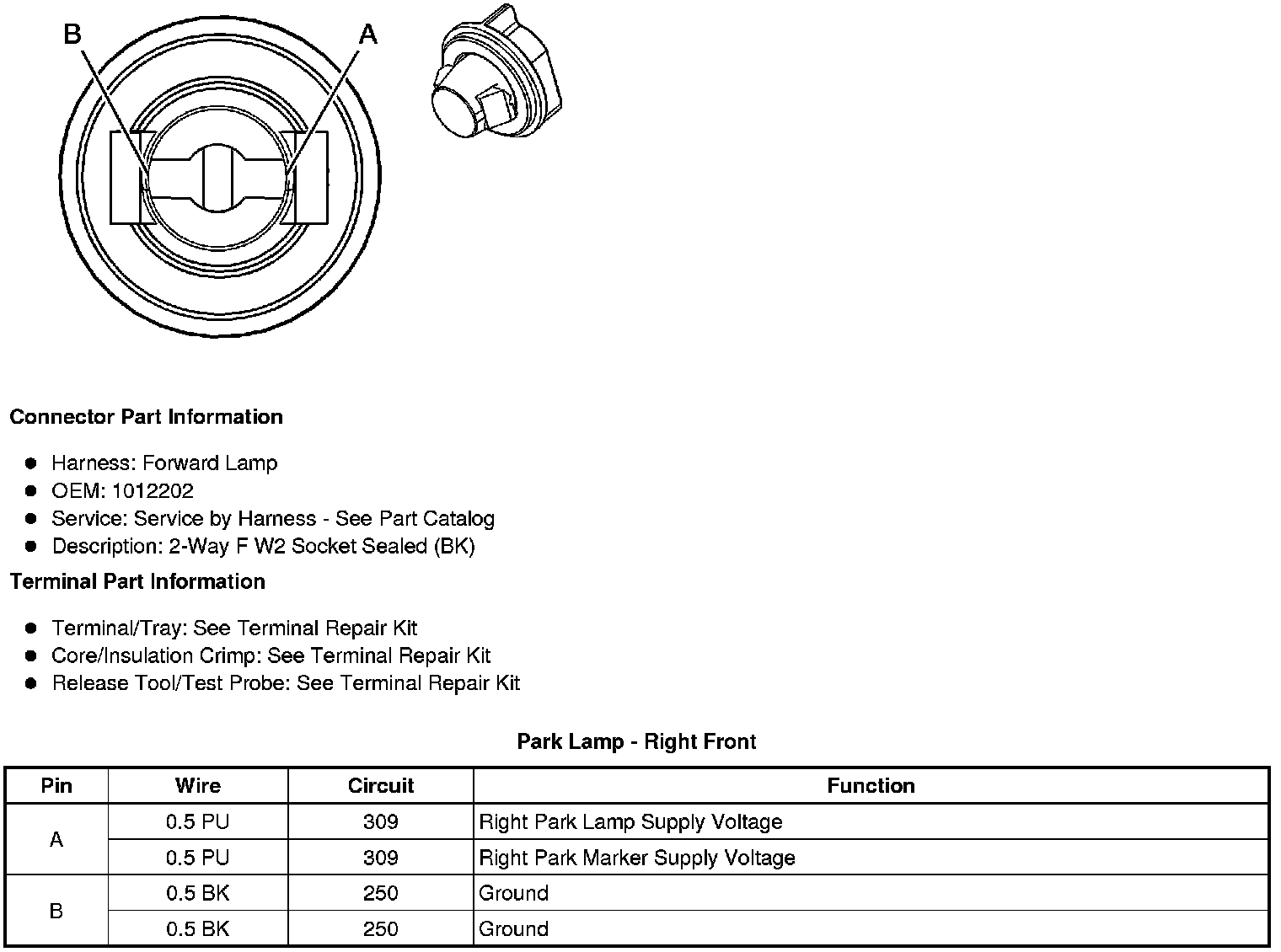

Park Lamp - Right Front





Park Lamp - Right Middle (V4U)





Park Lamp - Right Rear (V4U, B9Q)
