Home >> Cadillac >> 2010 >> DTS V8-4.6L >> Repair and Diagnosis >> Lighting and Horns >> Fog/Driving Lamp >> Diagrams

Fog/Driving Lamp: Diagrams




Component Connector End Views

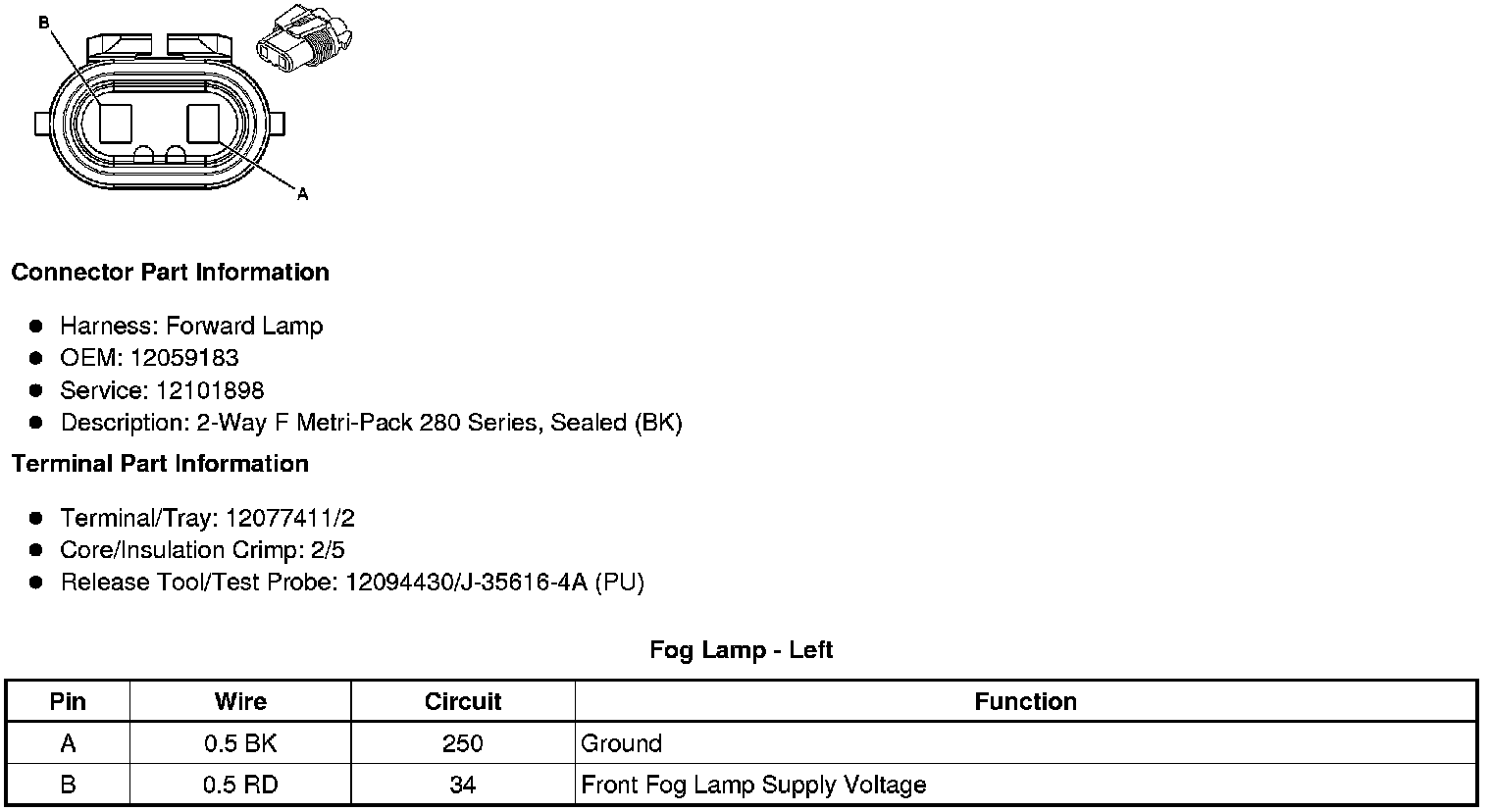

Fog Lamp - Left

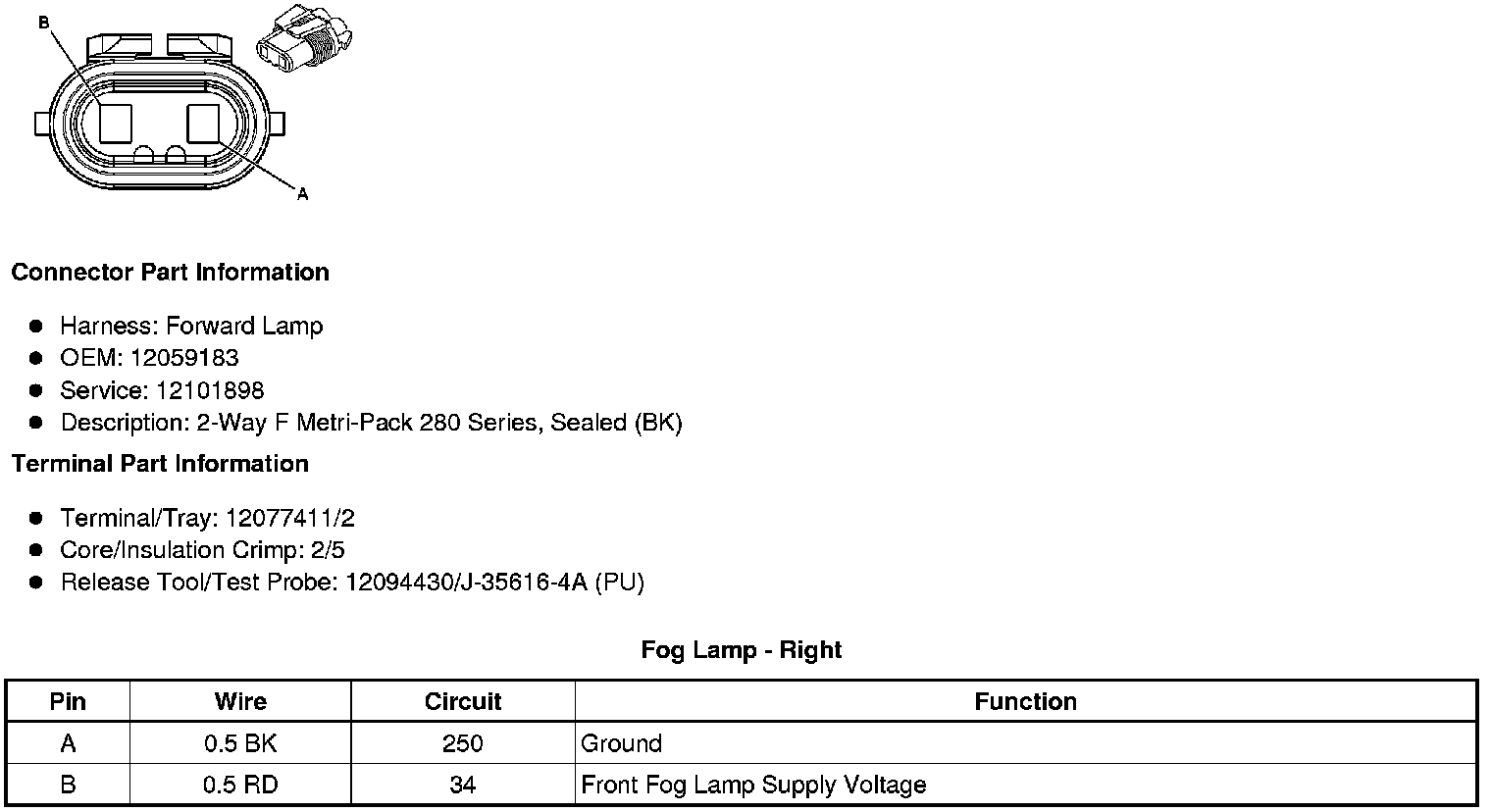

Fog Lamp - Right
