Dome Lamp: Diagrams




Component Connector End Views

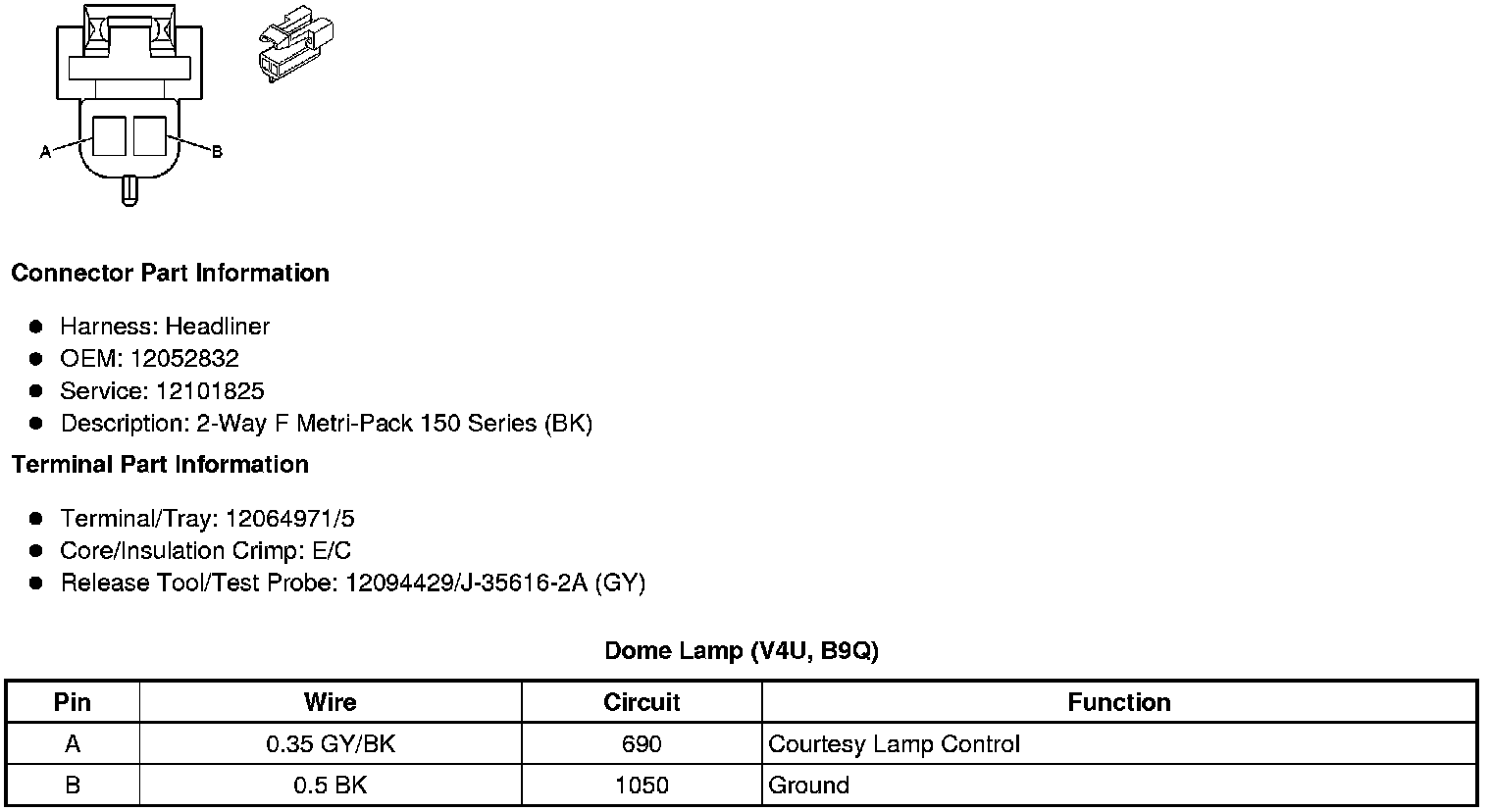

Dome Lamp (V4U, B9Q)

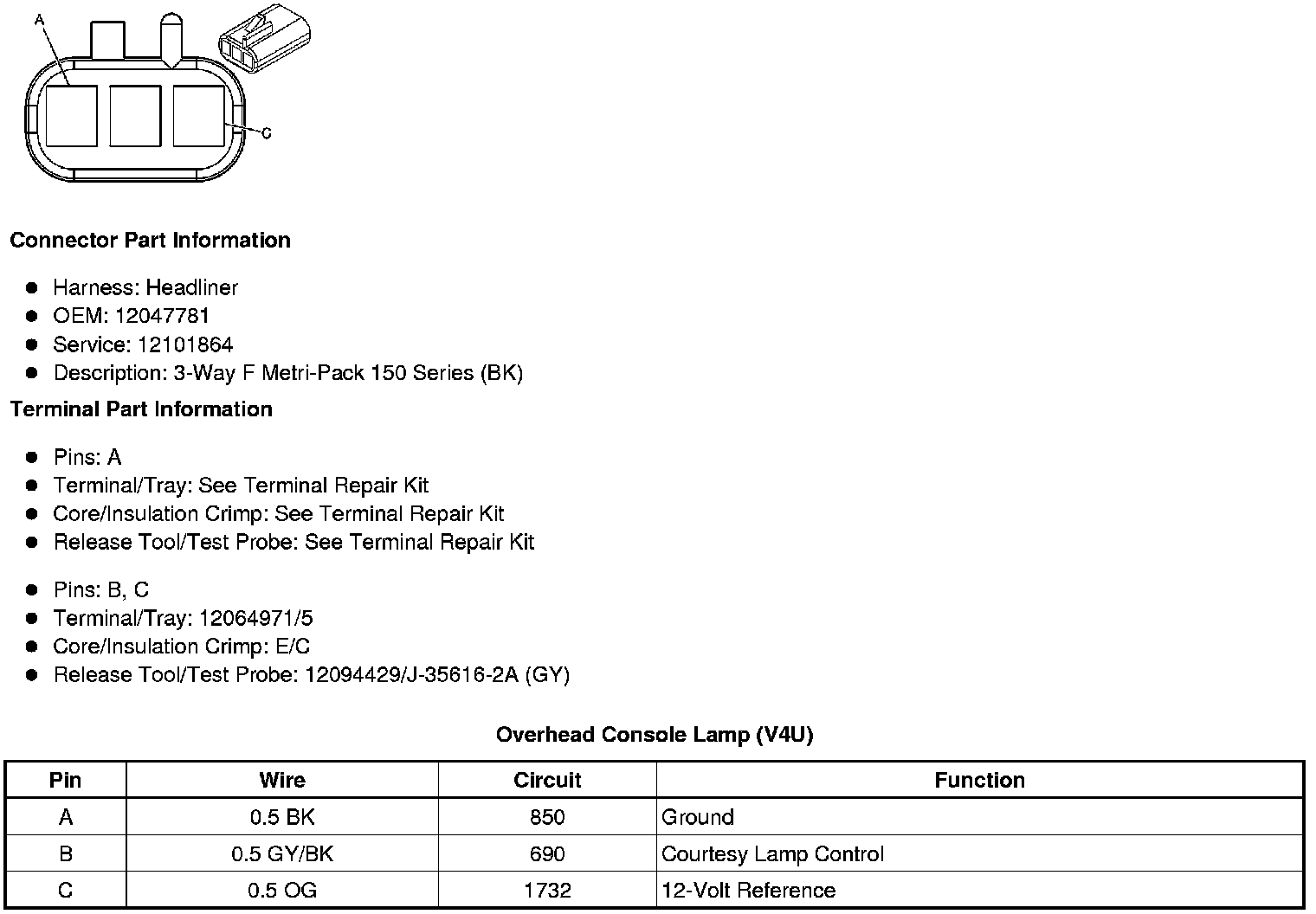

Overhead Console Lamp (V4U)
