Home >> Cadillac >> 2010 >> DTS V8-4.6L >> Repair and Diagnosis >> Lighting and Horns >> Diagrams >> Electrical Diagrams >> Fog Lights Schematics

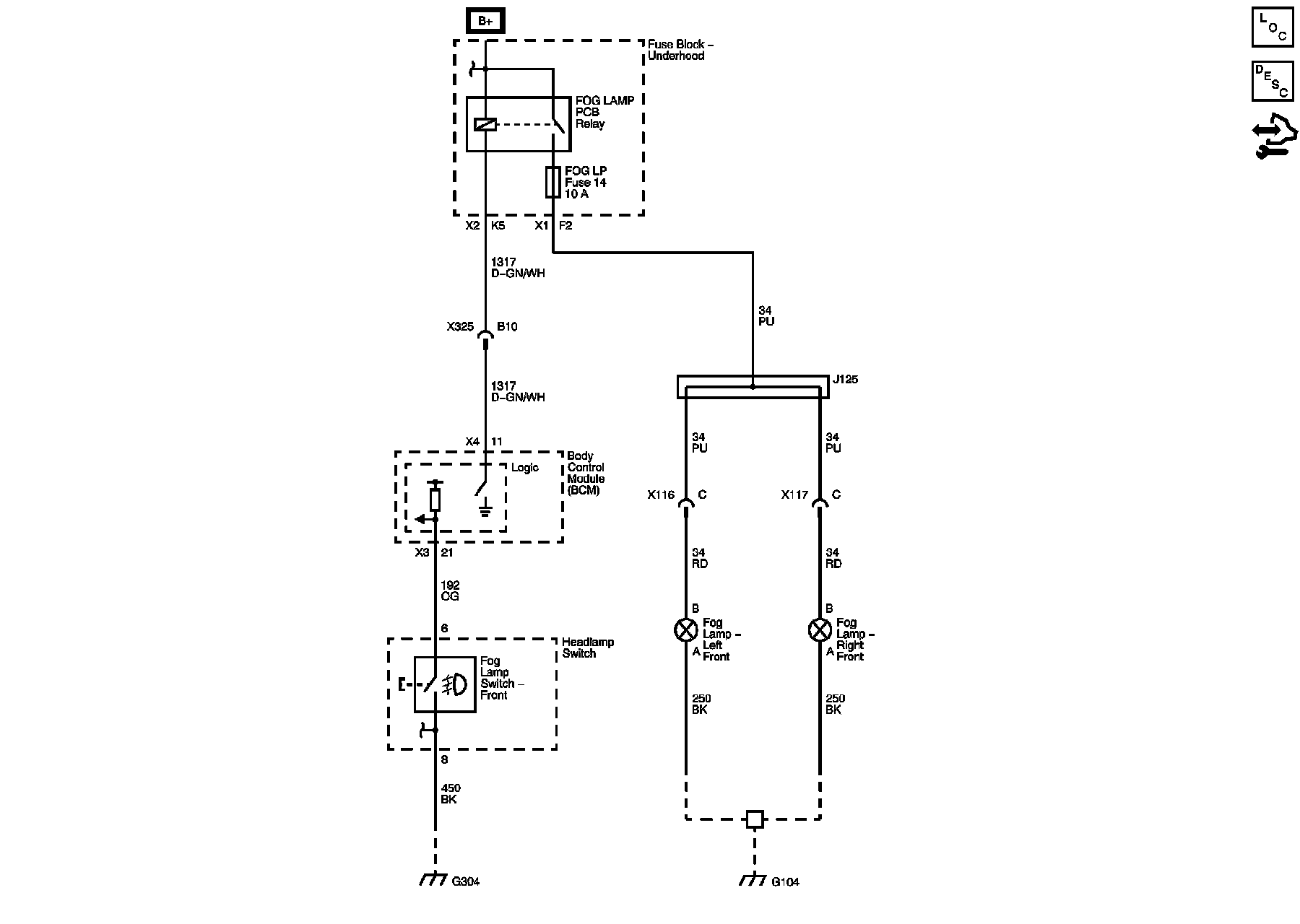

Fog Lights Schematics




Fog Lights Schematics
