Daytime Running Lamp: Diagrams




Component Connector End Views

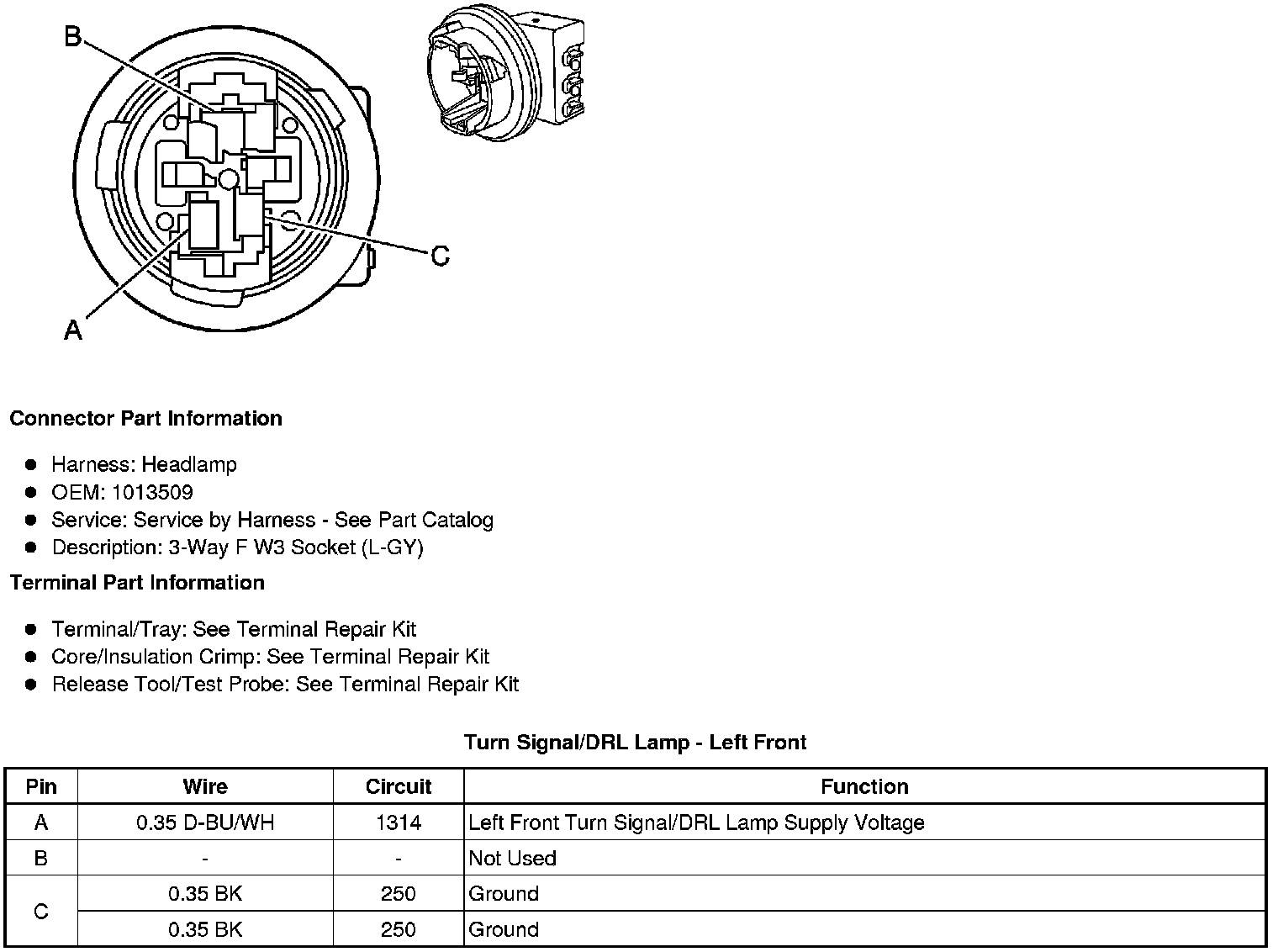

Turn Signal/DRL Lamp - Left Front

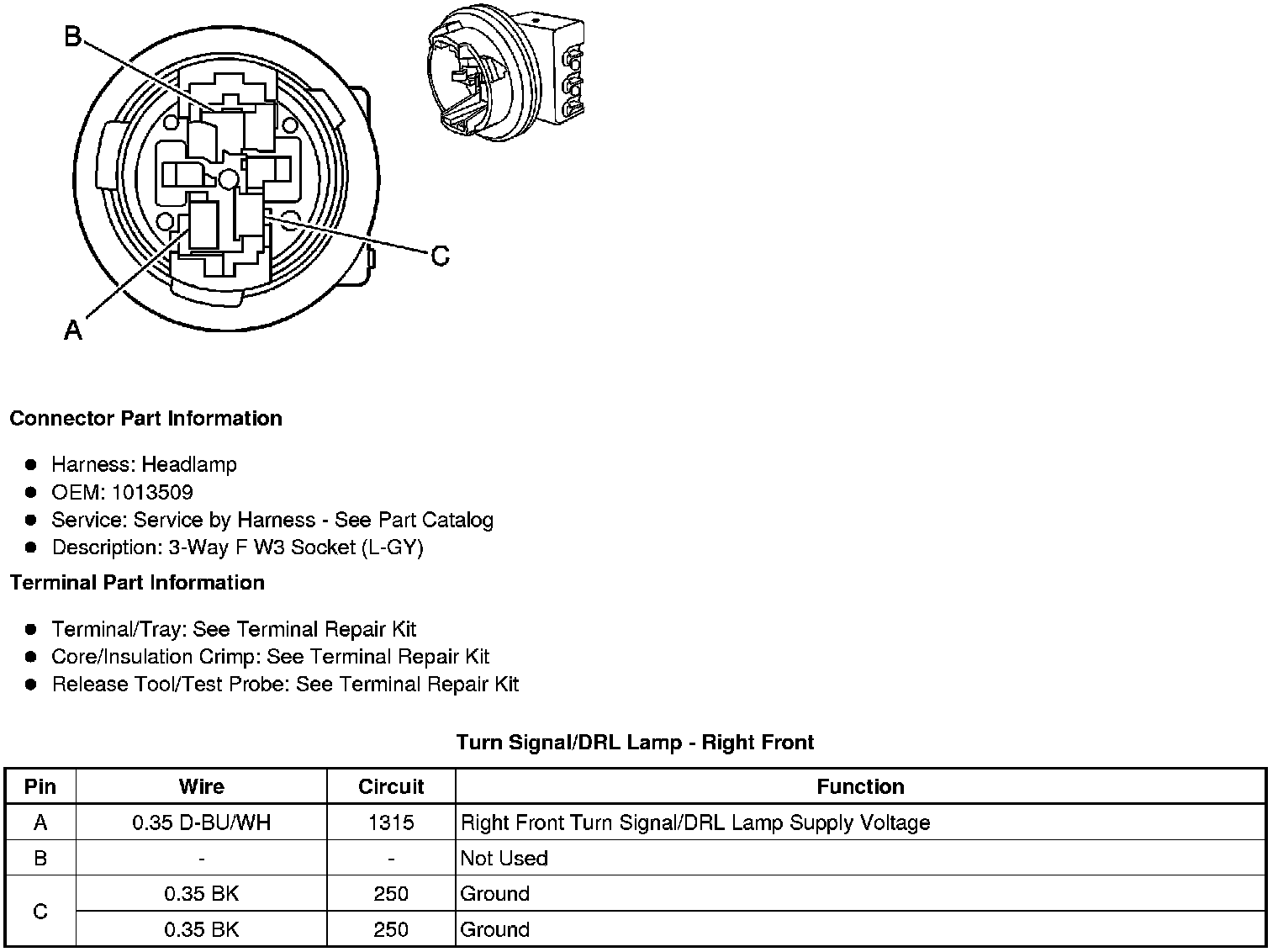

Turn Signal/DRL Lamp - Right Front
