Cornering Lamp: Diagrams

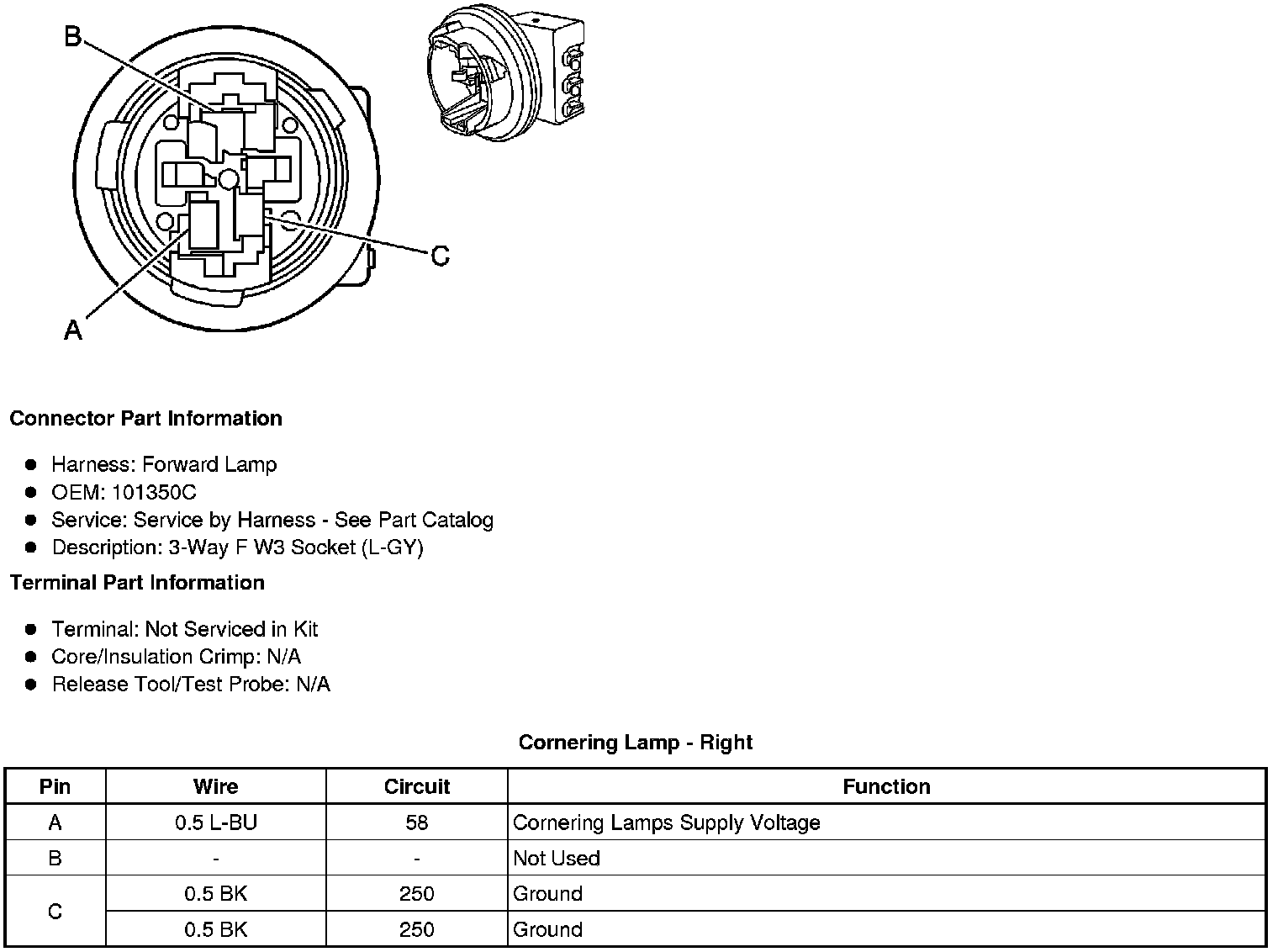

Component Connector End Views

Cornering Lamp - Left





Cornering Lamp - Right
