Home >> Cadillac >> 2010 >> DTS V8-4.6L >> Repair and Diagnosis >> Heating and Air Conditioning >> Air Door >> Air Door Actuator / Motor >> Service and Repair >> Temperature Valve Actuator Replacement - Right Side

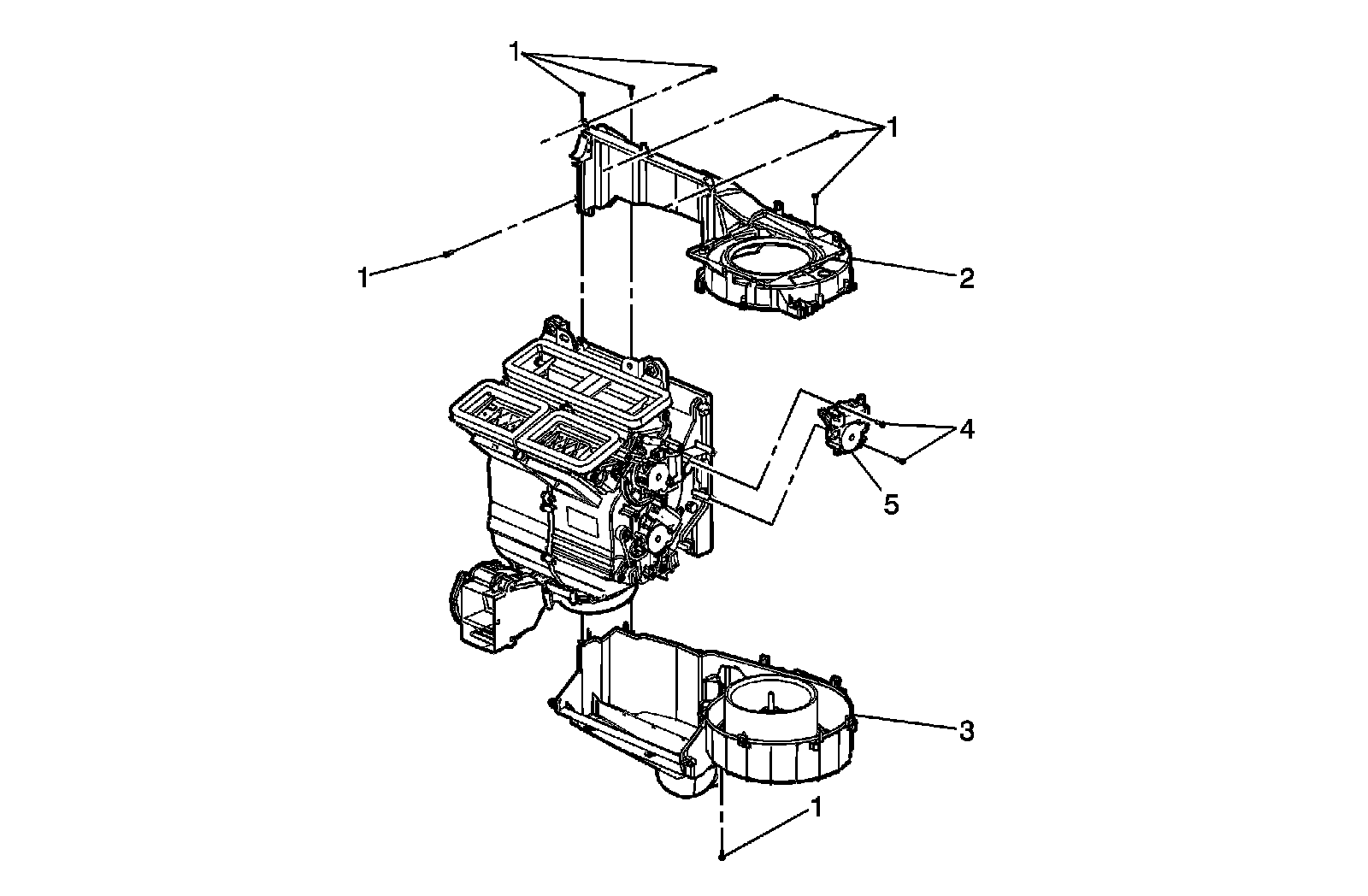

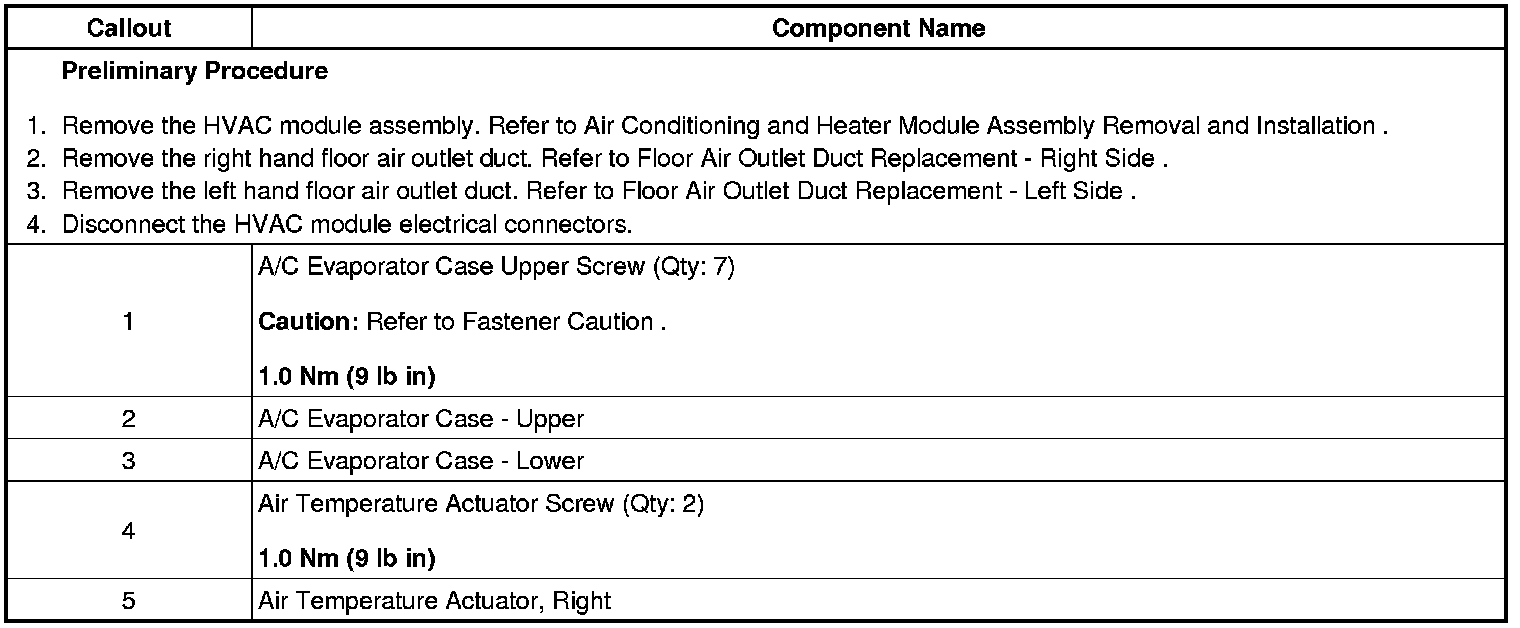

Temperature Valve Actuator Replacement - Right Side




Temperature Valve Actuator Replacement - Right Side
