93. Oil Pump Suction Pipe and Screen Assembly Installation

Oil Pump Suction Pipe and Screen Assembly Installation

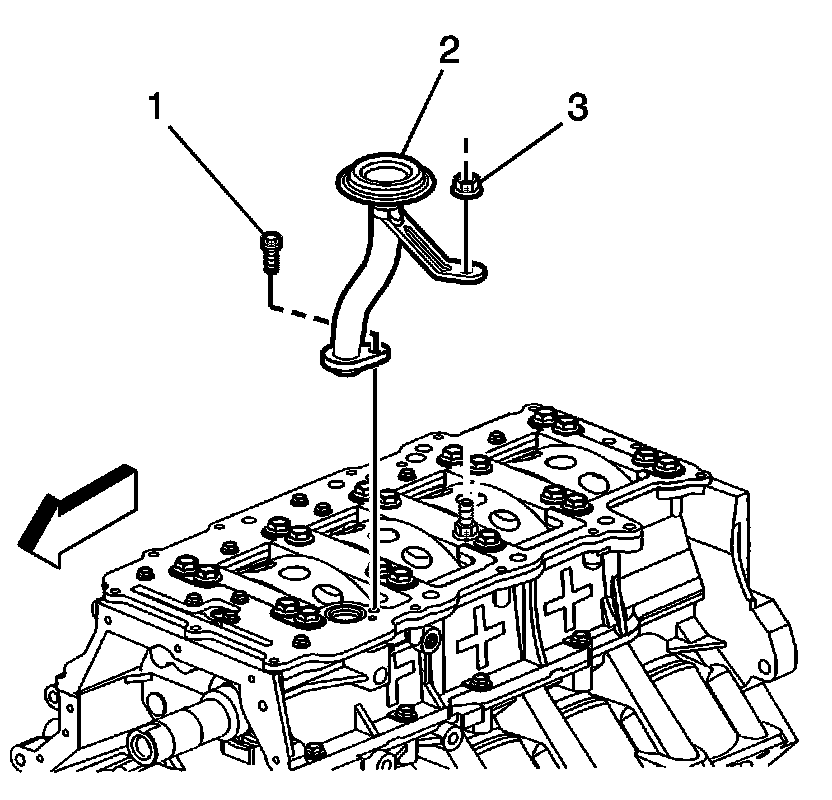

1. Lubricate the silicone seal in the oil manifold plate. With a twisting motion, install the end of the oil pump pick-up tube (2).

Caution: Refer to Fastener Caution (Fastener Caution).

2. Install the oil pump pick-up retaining bolt (1) and nut (3).

1. Tighten the oil pump pick-up tube nut to 24 Nm (18 lb ft).
2. Tighten the oil pump pick-up tube bolt to 10 Nm (89 lb in).
