78. Intake Manifold Disassemble

Intake Manifold Disassemble





Important: Do not reuse the intake manifold-to-cylinder head sealing gaskets.


1. Remove and discard the intake manifold-to-cylinder head gaskets.

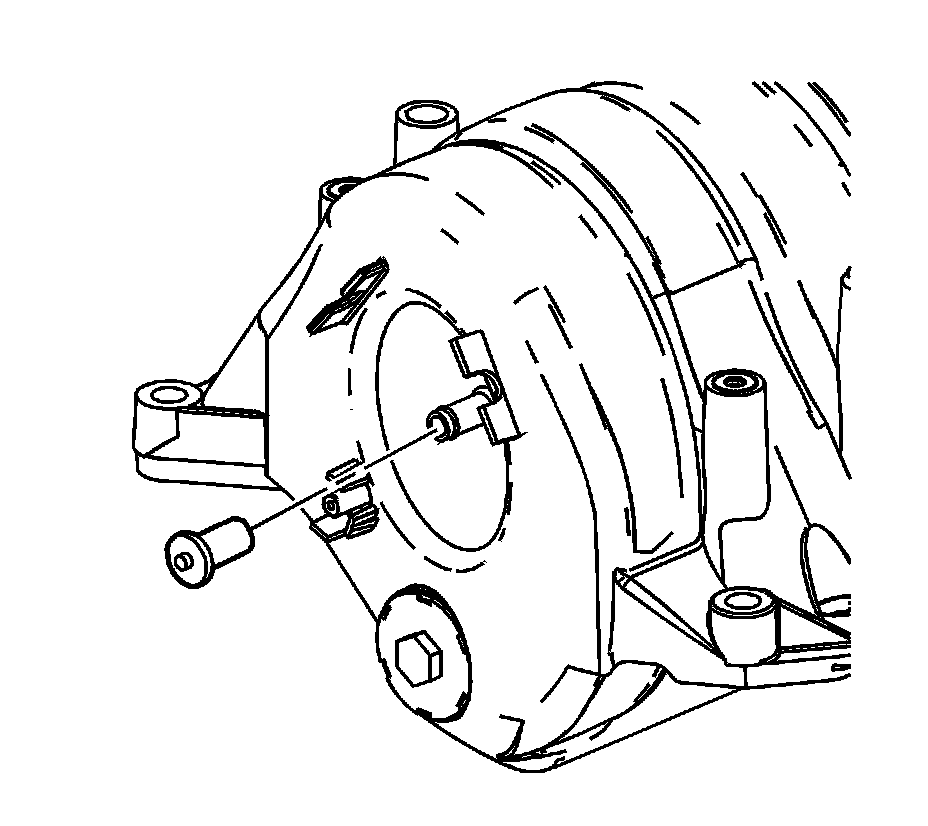

2. Remove the intake manifold vacuum cap.

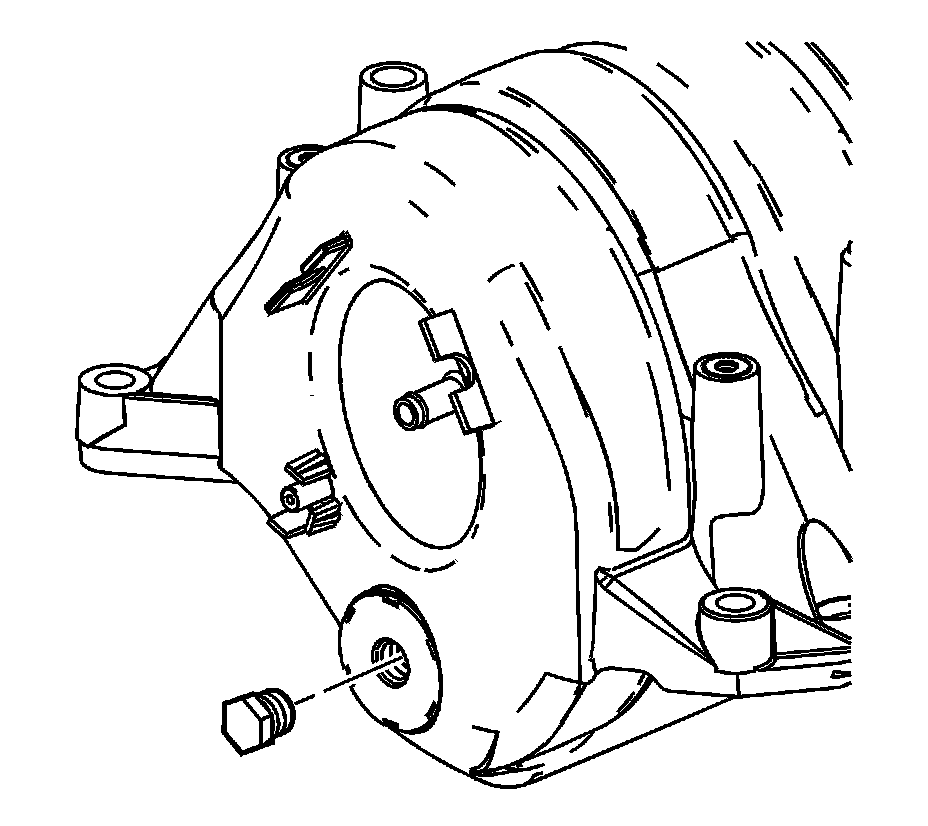

3. Remove the intake manifold plug.

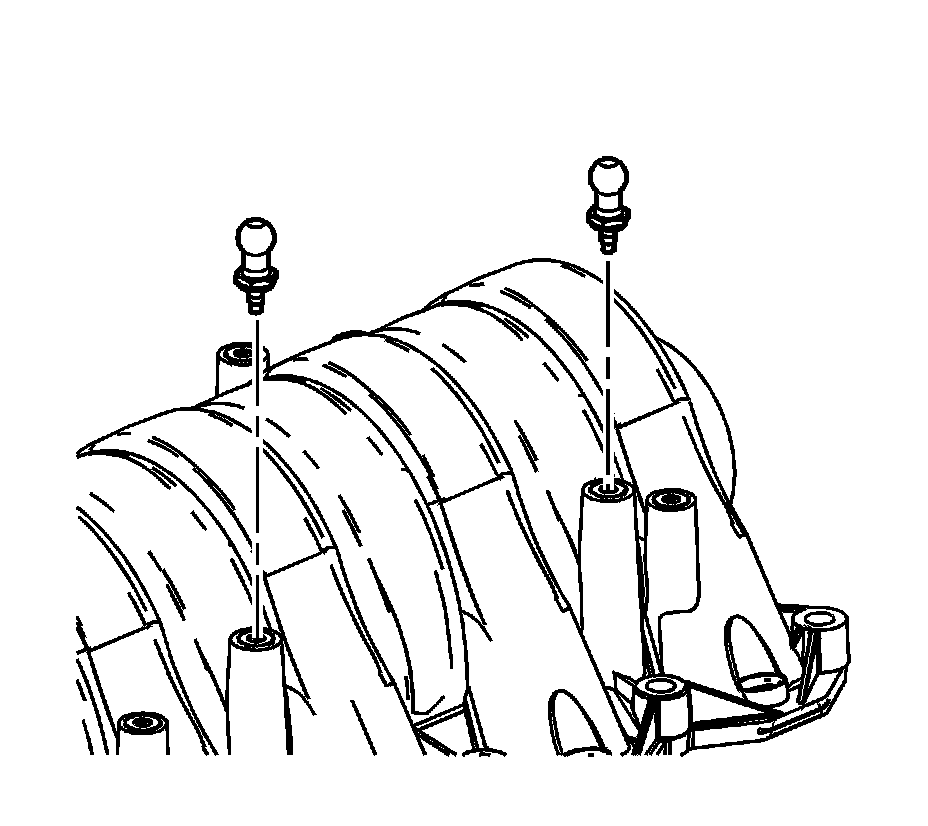

4. Remove the intake manifold sight shield ball studs.
