75. Camshaft Cover Disassemble

Camshaft Cover Disassemble

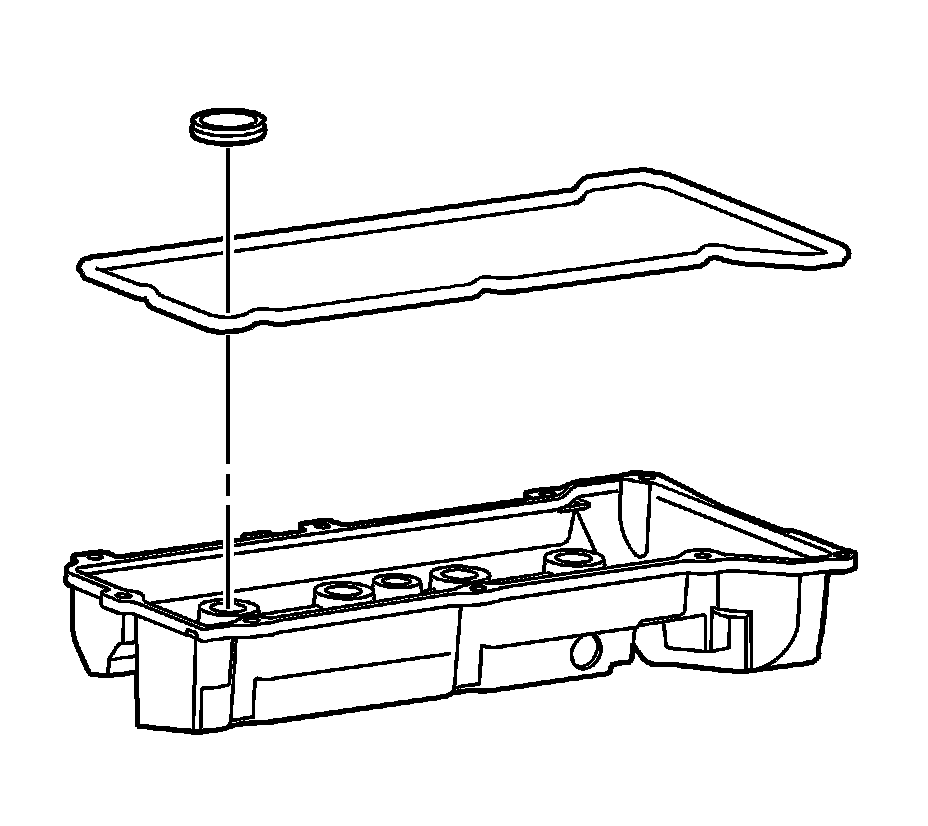

1. Remove the left camshaft cover gasket and discard.
2. Remove the left spark plug port seals and discard.

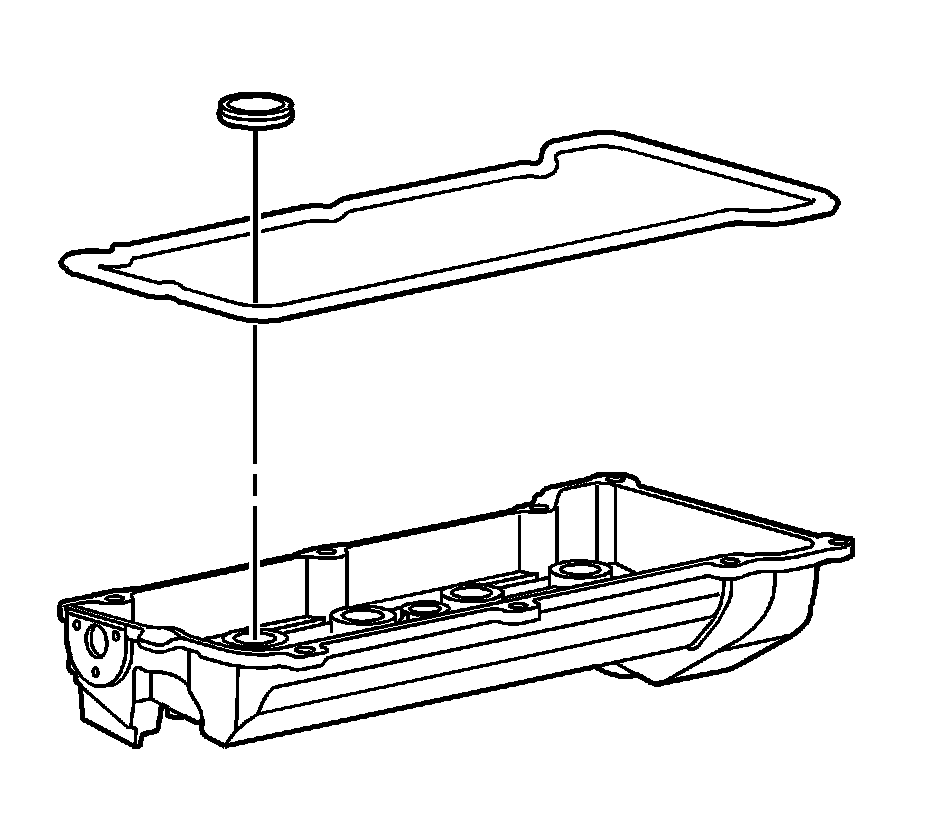

3. Remove the right camshaft cover gasket and discard.
4. Remove the right spark plug port seals and discard.




5. Remove the camshaft cover bolts.
6. Remove the camshaft cover bolt grommets.

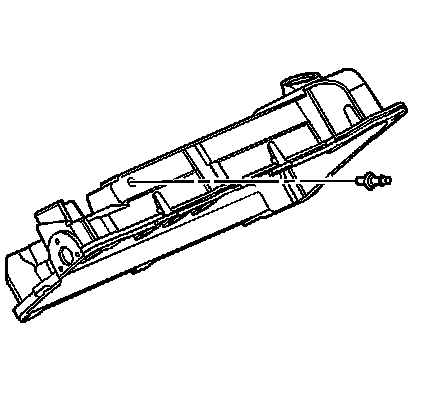

7. Remove from the right camshaft cover the fresh air hose fitting.
