4. Air Conditioning (A/C) Compressor Removal

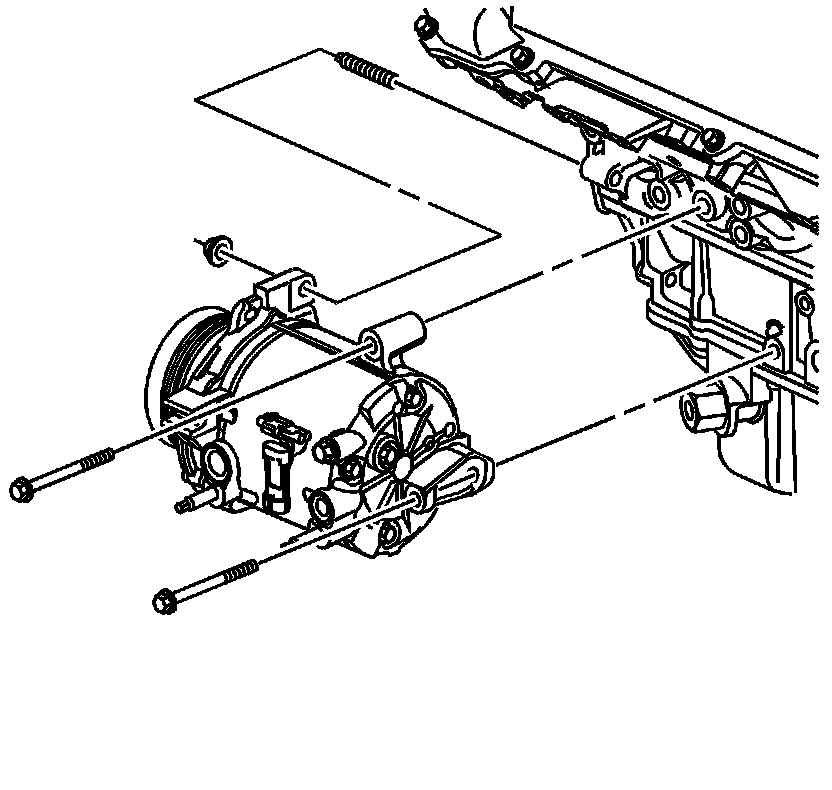

Air Conditioning (A/C) Compressor Removal




1. Remove the air conditioning compressor front mounting bolts.




2. Remove the air conditioning compressor nut from the engine block front stud.
3. Remove the air conditioning compressor side bolts from the engine block.
4. Remove the air conditioning compressor by sliding off the front mounting stud.
5. Remove the air conditioning compressor mounting stud.
