21. Ignition Coil Module Removal - Right Side

Ignition Coil Module Removal - Right Side

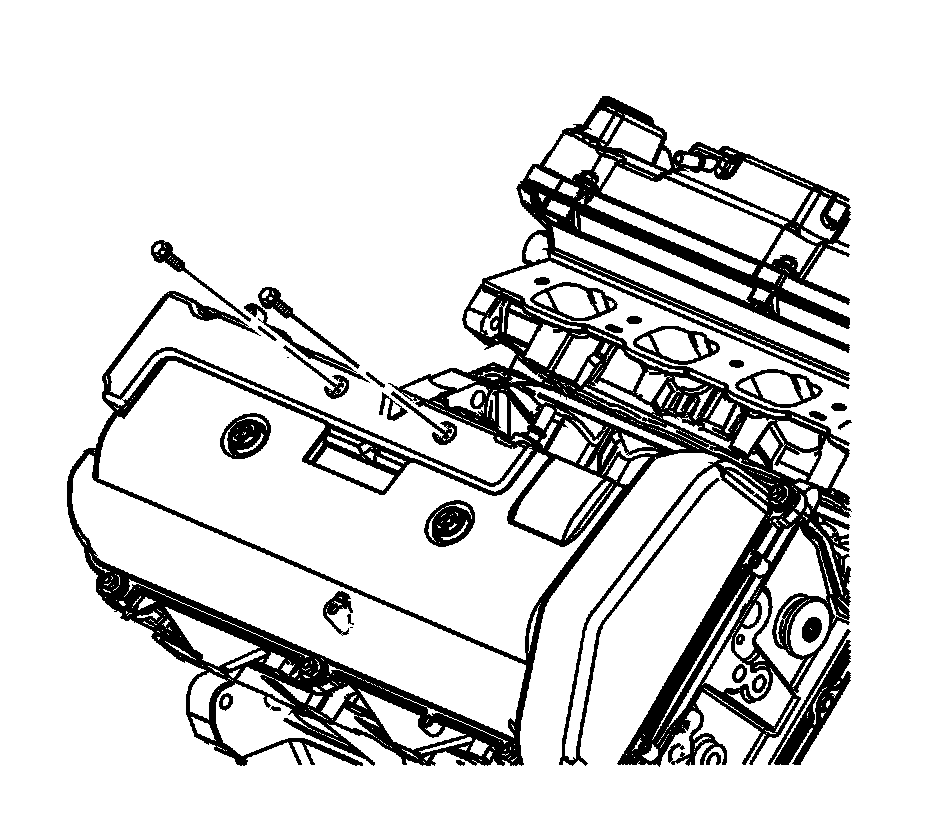

1. If equipped, remove the fuel injector sight shield bracket bolts.
2. Remove the fuel injector sight shield bracket.

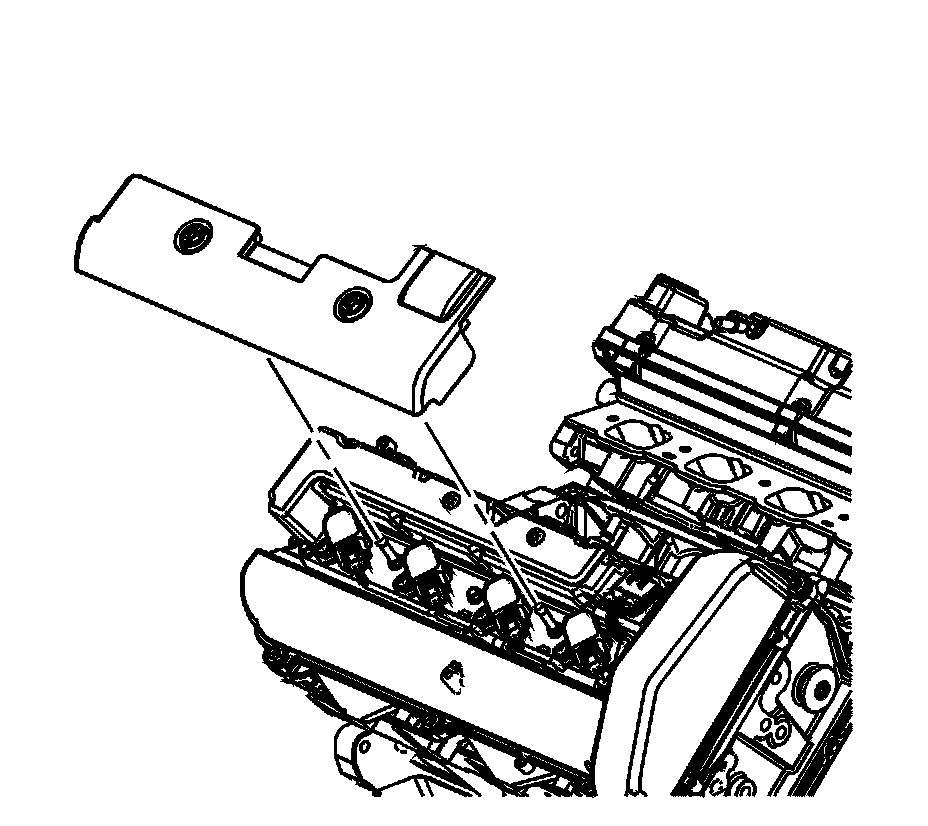

3. Remove the ignition coil assembly sight shield cover.

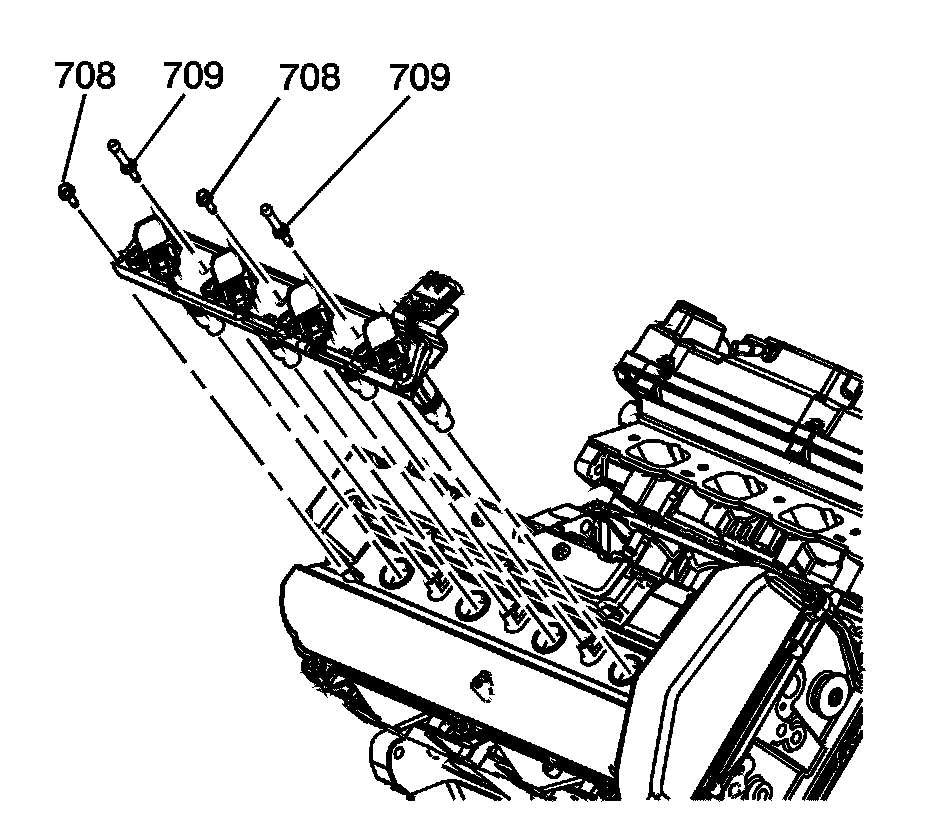

4. Remove the ignition coil assembly bolts (708) and ball studs (709).
5. Remove the ignition coil assembly.

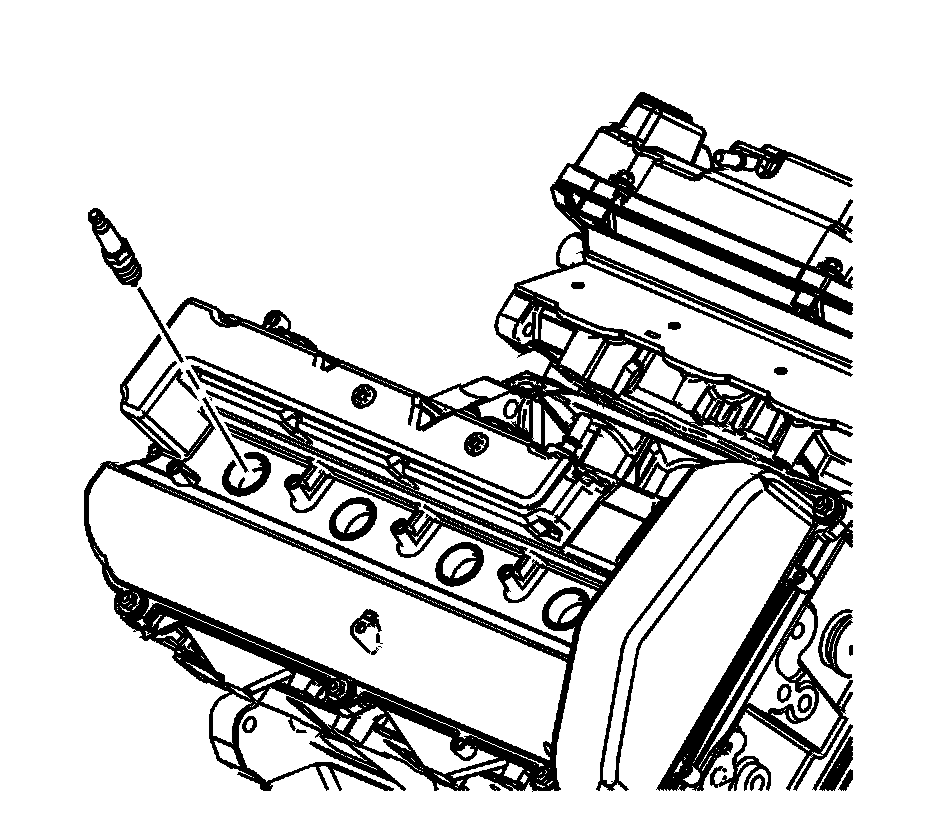

6. Remove the right spark plugs.
