130. Drive Belt Idler Pulley Installation

Drive Belt Idler Pulley Installation

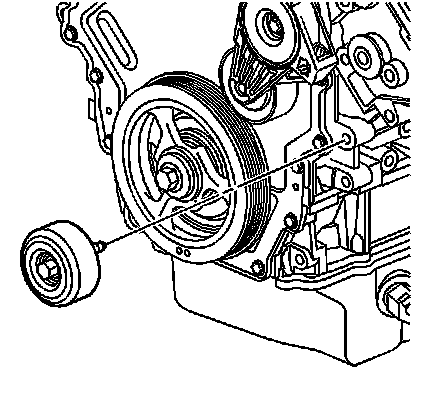

1. Place the drive belt idler pulley and bolt in position.

Caution: Refer to Fastener Caution (Fastener Caution).

2. Tighten the drive belt idler pulley bolt and tighten to 50 Nm (37 lb ft).
