129. Drive Belt Tensioner Installation

Drive Belt Tensioner Installation

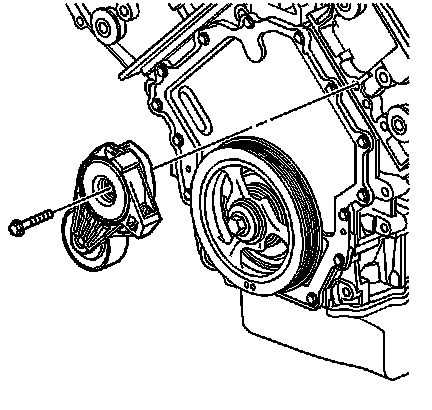

1. Install the drive belt tensioner. Be sure to locate the tensioner anchor pin in the cylinder head recess.

Caution: Refer to Fastener Caution (Fastener Caution).

2. Install the drive belt tensioner bolt and tighten to 50 Nm (37 lb ft).
