125. Oil Level Indicator and Tube Installation

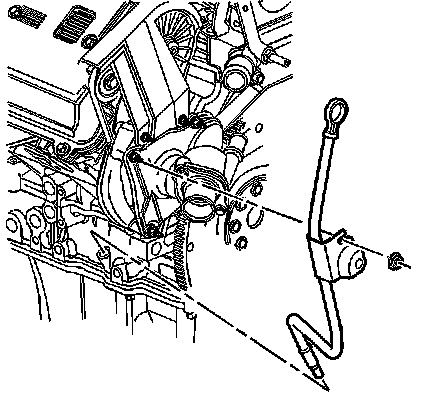

Oil Level Indicator and Tube Installation




1. Install the NEW O-ring on the oil level indicator tube.




2. Install the oil level indicator tube.

Caution: Refer to Fastener Caution (Fastener Caution).

3. Install the oil level indicator tube nut and tighten to 10 Nm (89 lb in).
