Engine Mount - Right Side




Engine Mount Replacement - Right Side

Removal Procedure




1. Remove the frame. Refer to Drivetrain and Front Suspension Frame Replacement (4.6L) (Drivetrain and Front Suspension Frame Replacement (4.6L)).

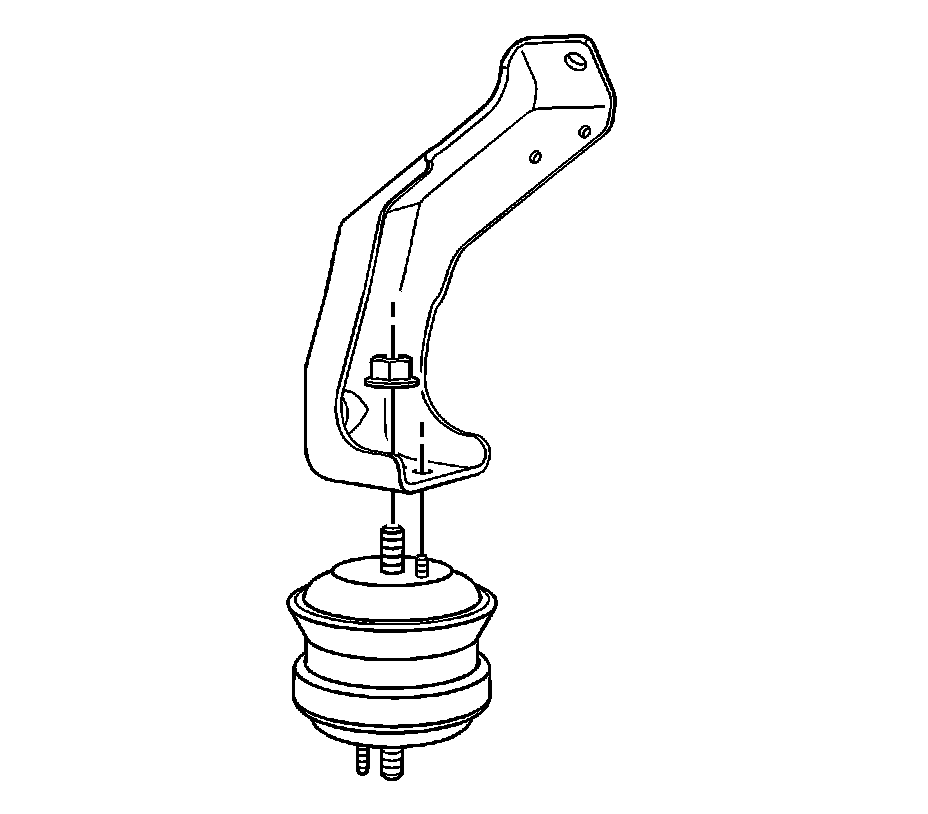

2. Remove the right engine mount to engine mount bracket nut.
3. Remove the right engine mount.

Installation Procedure




1. Install the right engine mount stud through the hole in the engine mount bracket.

Caution: Refer to Fastener Caution (Fastener Caution).

2. Install the right engine mount to engine mount bracket nut.

Tighten the nut to 80 Nm (59 lb ft).

3. Install the frame. Refer to Drivetrain and Front Suspension Frame Replacement (4.6L) (Drivetrain and Front Suspension Frame Replacement (4.6L)).
