Engine Front Mount Replacement




Engine Front Mount Replacement

Removal Procedure




1. Remove the engine mount bracket. Refer to Engine Front Mount Bracket Replacement (Engine Front Mount Bracket Replacement).

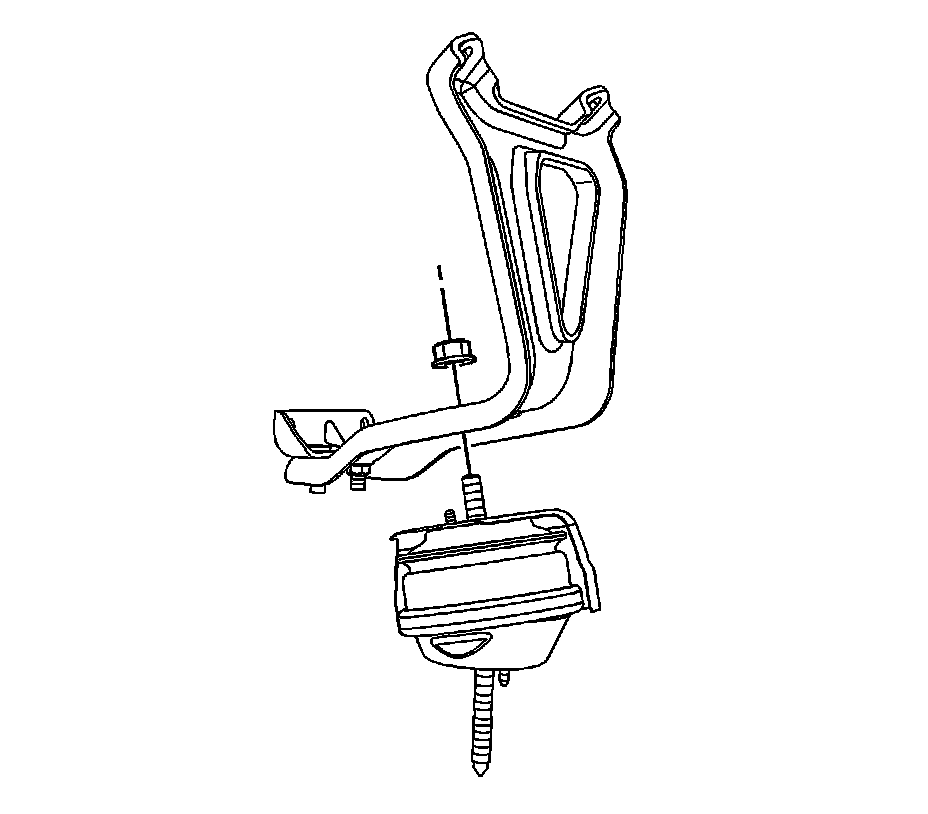

2. Remove the front engine mount to engine mount bracket nut.
3. Remove the front engine mount.

Installation Procedure




1. Install the front engine mount stud through the hole in the front engine mount bracket.
2. Install the front engine mount bracket. Refer to Engine Front Mount Bracket Replacement (Engine Front Mount Bracket Replacement).

Caution: Refer to Fastener Caution (Fastener Caution).

3. Install the front engine mount to engine mount bracket nut.

Tighten the nut to 80 Nm (59 lb ft).

4. Install the frame. Refer to Drivetrain and Front Suspension Frame Replacement (4.6L) (Drivetrain and Front Suspension Frame Replacement (4.6L)).
