Engine Accessory Bracket: Service and Repair

Engine Lift Bracket Replacement

Removal Procedure




1. Raise and support the vehicle. Refer to Lifting and Jacking the Vehicle (Service and Repair).
2. Remove the transaxle brace lower bolt.
3. Lower the vehicle.
4. Remove the transaxle brace nuts.

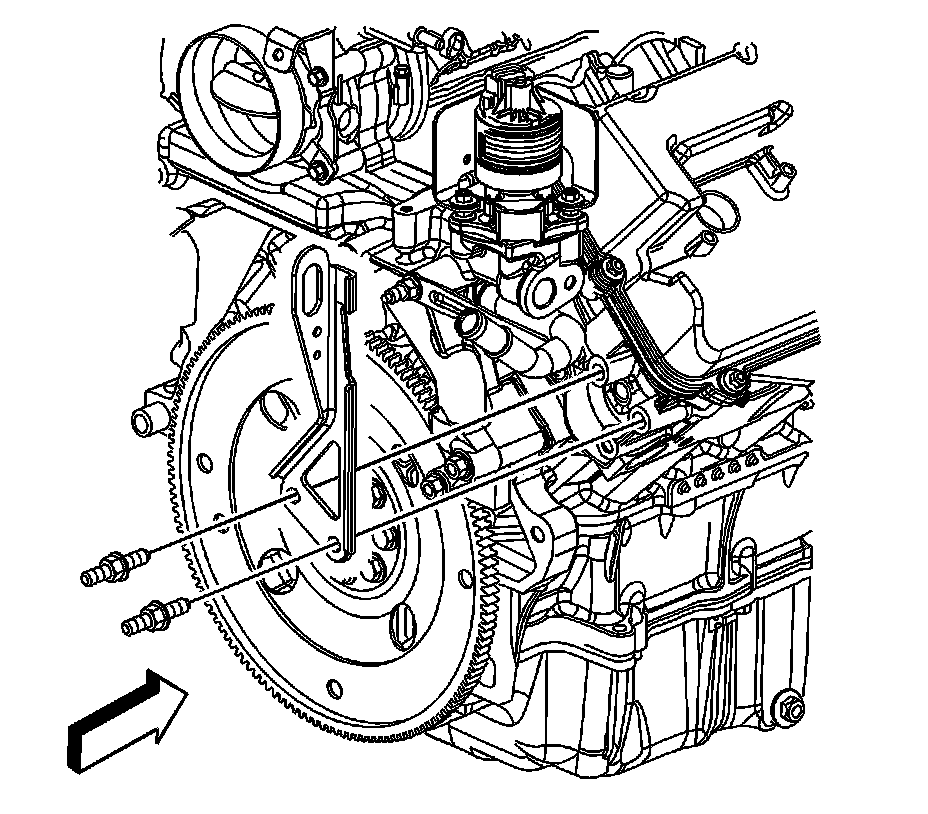

5. Remove the engine lift bracket studs.
6. Remove the engine lift bracket.

Installation Procedure




1. Position the engine lift bracket to the cylinder head.

Caution: Refer to Fastener Caution (Fastener Caution).

2. Install the engine lift bracket studs.

Tighten the studs to 50 Nm (37 lb ft).




3. Install the transaxle brace onto the lift bracket studs.
4. Install the transaxle brace nuts until sung.
5. Raise the vehicle.
6. Install the transaxle brace bolt.

Tighten the bolt to 50 Nm (37 lb ft).

7. Lower the vehicle.
8. Tighten the transaxle brace nuts.

Tighten the nuts to 50 Nm (37 lb ft).
