Camshaft Intermediate Drive Shaft Replacement

Camshaft Intermediate Drive Shaft Replacement

Removal Procedure

1. Remove the camshaft intermediate drive shaft sprocket. Refer to Primary Camshaft Drive Chain and Sprockets Replacement (Primary Camshaft Drive Chain and Sprockets Replacement).





Note: The camshaft intermediate drive shaft should not be removed unless wear is evident.

2. Remove the camshaft intermediate drive shaft retaining bolts.

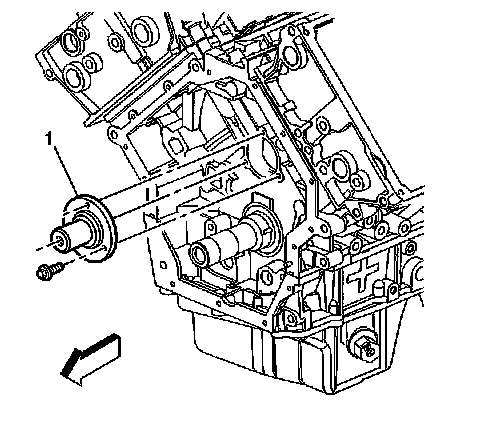

3. Remove the camshaft intermediate drive shaft (1) from the engine.
4. Clean and inspect the camshaft intermediate driveshaft. Refer to Camshaft Intermediate Drive Shaft Cleaning and Inspection (55. Camshaft Intermediate Drive Shaft Cleaning and Inspection).

Installation Procedure




1. Position the camshaft intermediate drive shaft (1) to the engine, aligning the bolt holes.

Caution: Refer to Fastener Caution (Fastener Caution).

2. Install the camshaft intermediate drive shaft retaining bolts.

Tighten the camshaft intermediate drive shaft retaining bolts to 15 Nm (11 lb ft).

3. Install the camshaft intermediate drive shaft sprocket. Refer to Primary Camshaft Drive Chain and Sprockets Replacement (Primary Camshaft Drive Chain and Sprockets Replacement).
