Radiator Support Bracket Replacement




Radiator Support Bracket Replacement

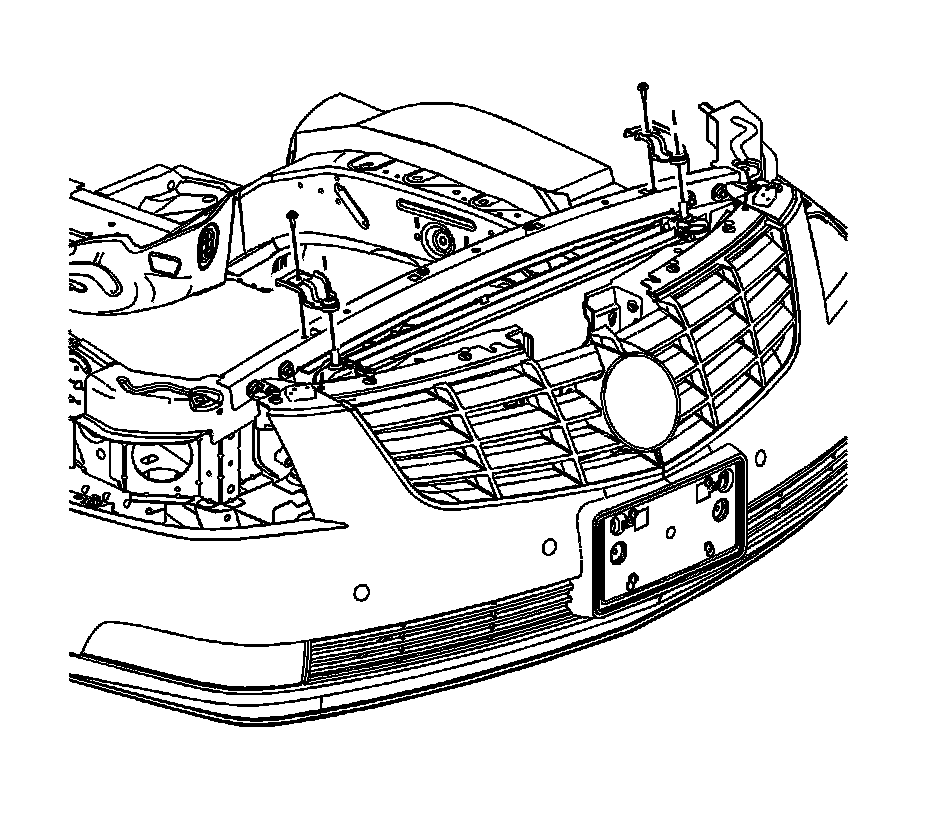

Removal Procedure




1. Remove the radiator support bracket retaining bolt.
2. Remove the radiator support bracket.

Installation Procedure




1. Install the radiator support bracket.
Caution: Refer to Fastener Caution (Fastener Caution).

2. Install the radiator support bracket retaining bolt.

Tighten the bolts to 25 Nm (18 lb in).
