Radiator Cooling Fan: Diagrams




Component Connector End Views

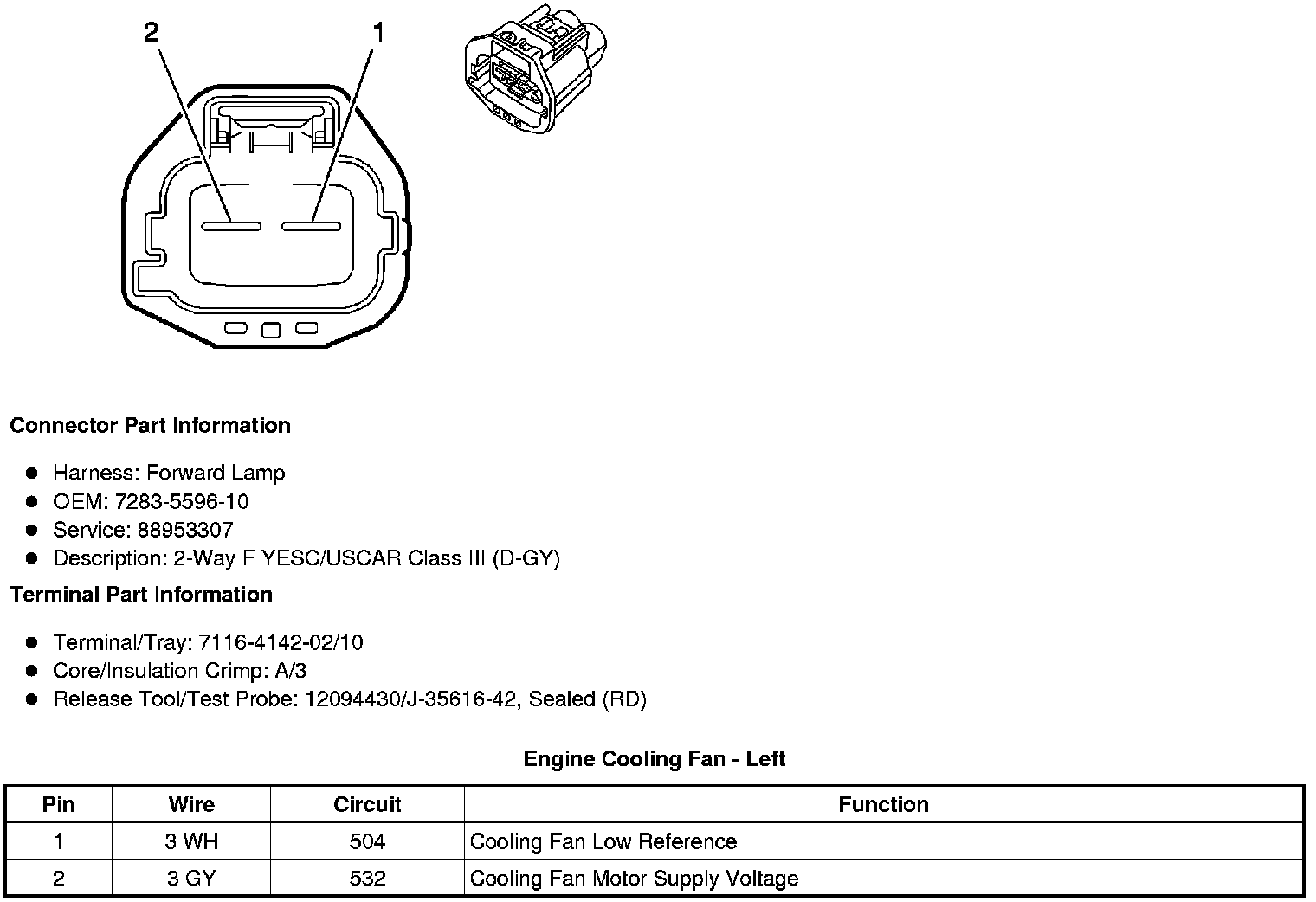

Engine Cooling Fan - Left

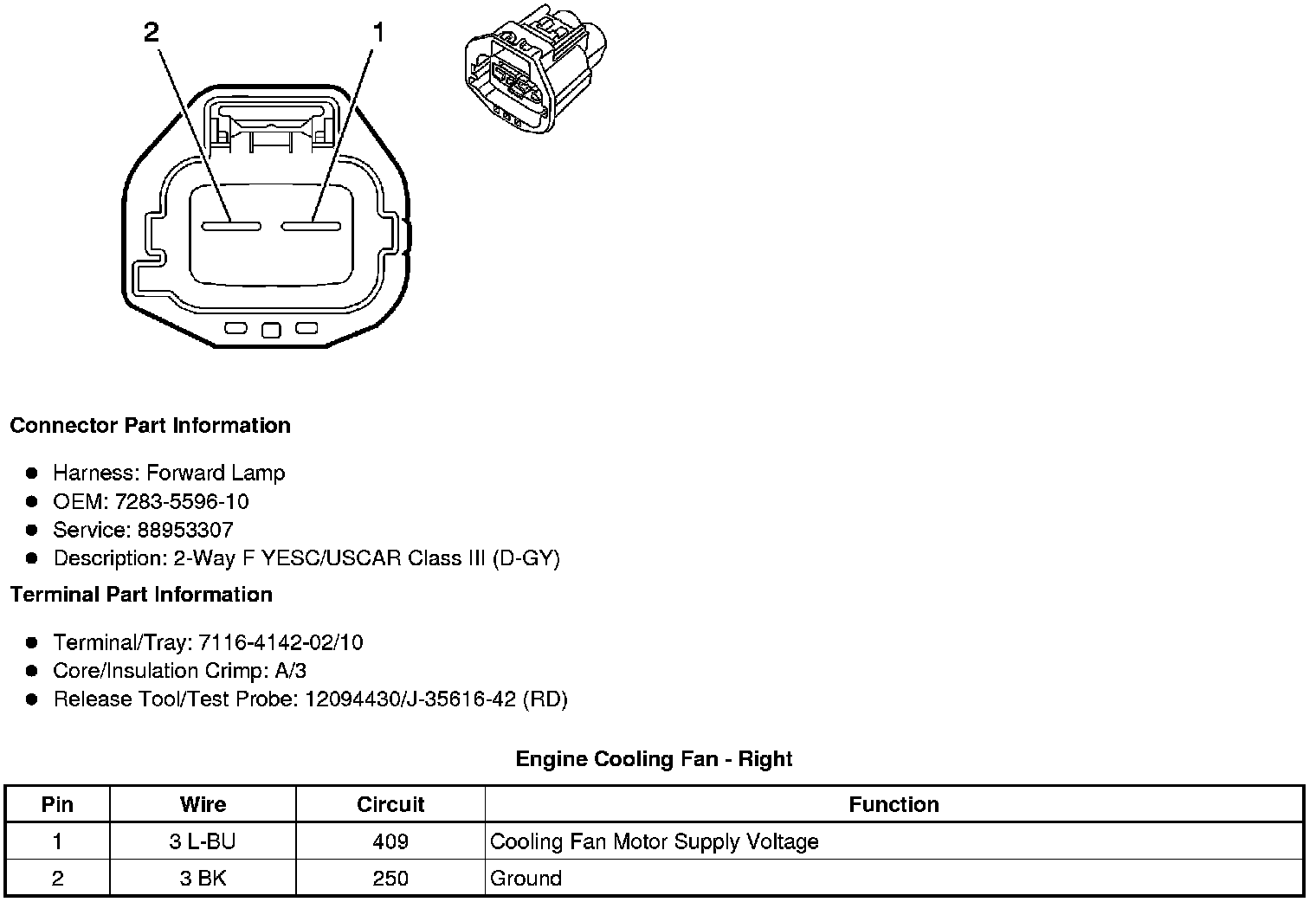

Engine Cooling Fan - Right
