Headlamp Assemblies Harness Routing

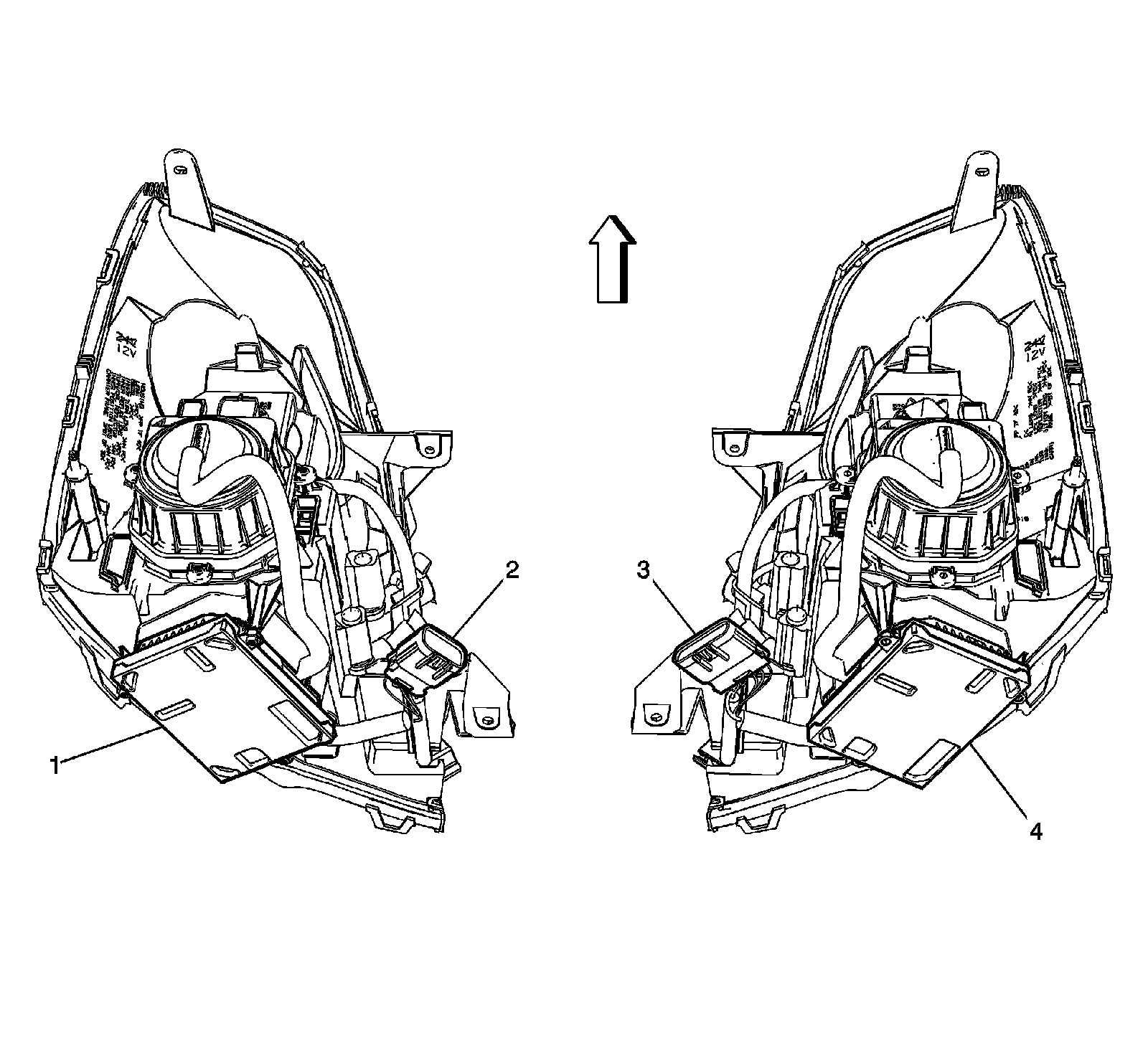

Harness Routing Views

Headlamp Assemblies Harness Routing

1 - Headlamp Ballast-Left (without T72)
2 - X114
3 - X113
4 - Headlamp Ballast-Right (without T72)
