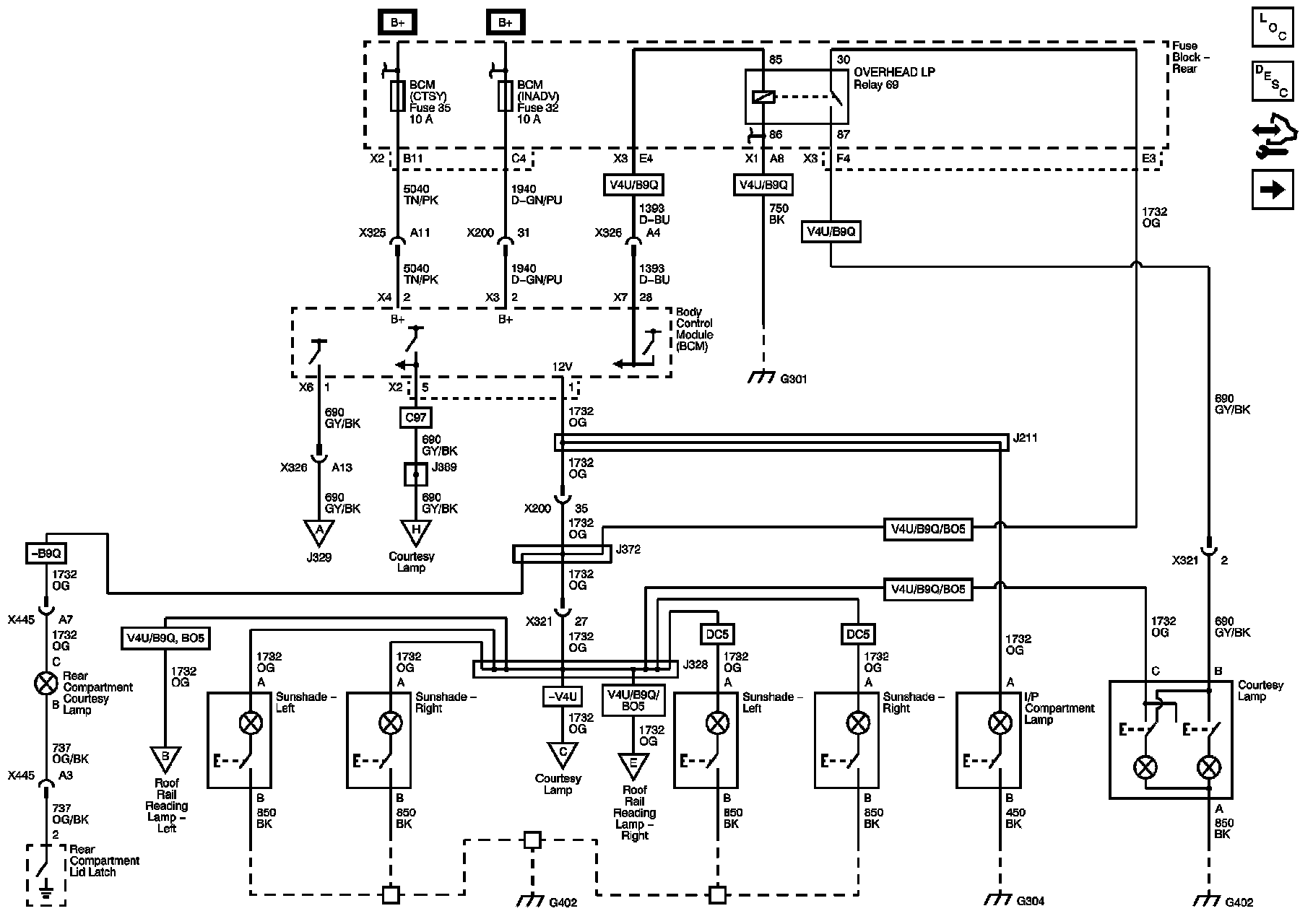

Interior Lights Schematic 1




Interior Lights Schematics

Vanity Mirror, Rear Compartment Courtesy, I/P Compartment, Overhead Console
