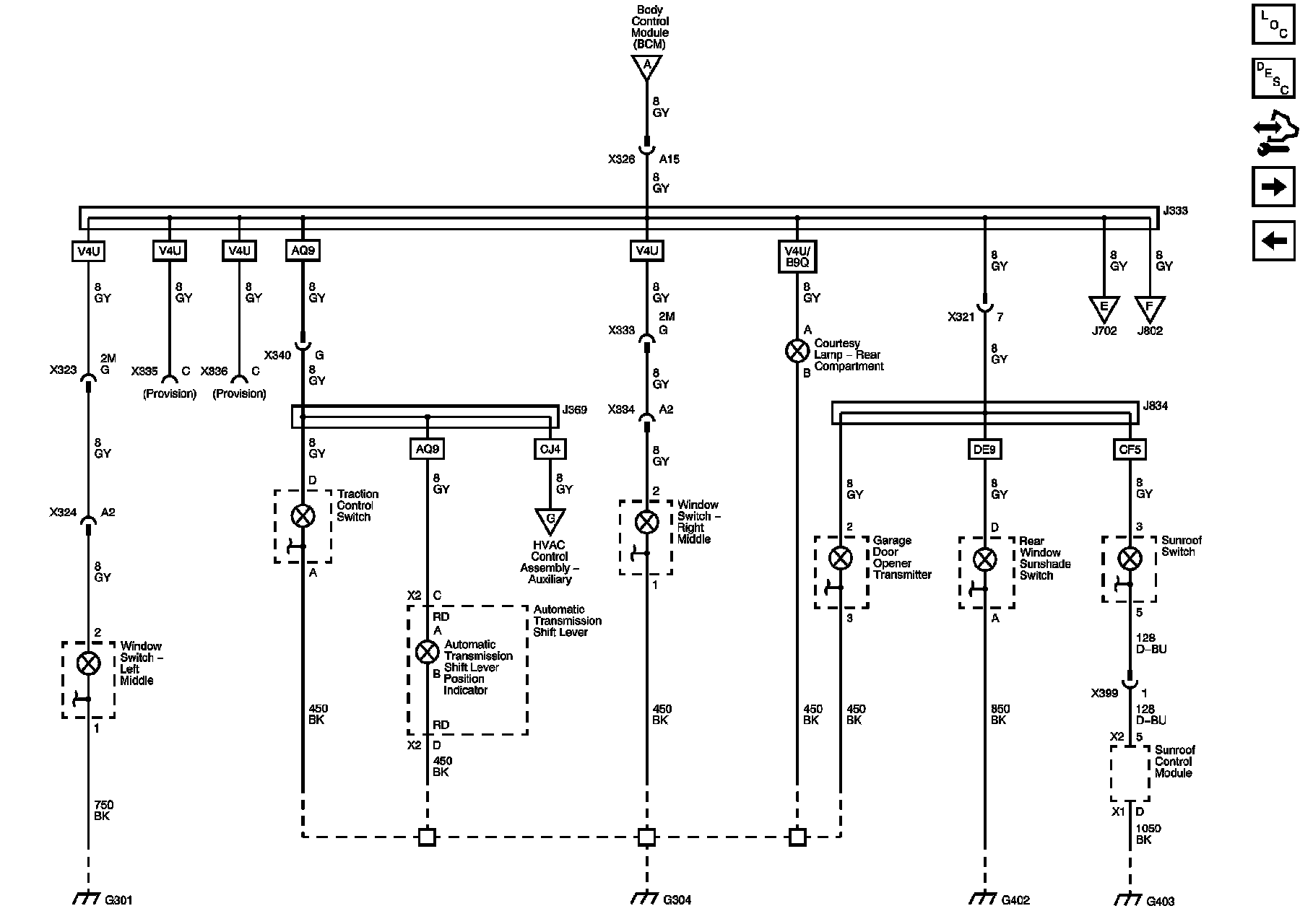

Home >> Cadillac >> 2010 >> DTS V8-4.6L >> Repair and Diagnosis >> Diagrams >> Electrical Diagrams >> Lighting and Horns >> System Diagram >> Interior Lights Dimming Schematics >> Interior Lights Dimming Schematic 2
