Master Connector List
Master Electrical Component List
Wi - X114:

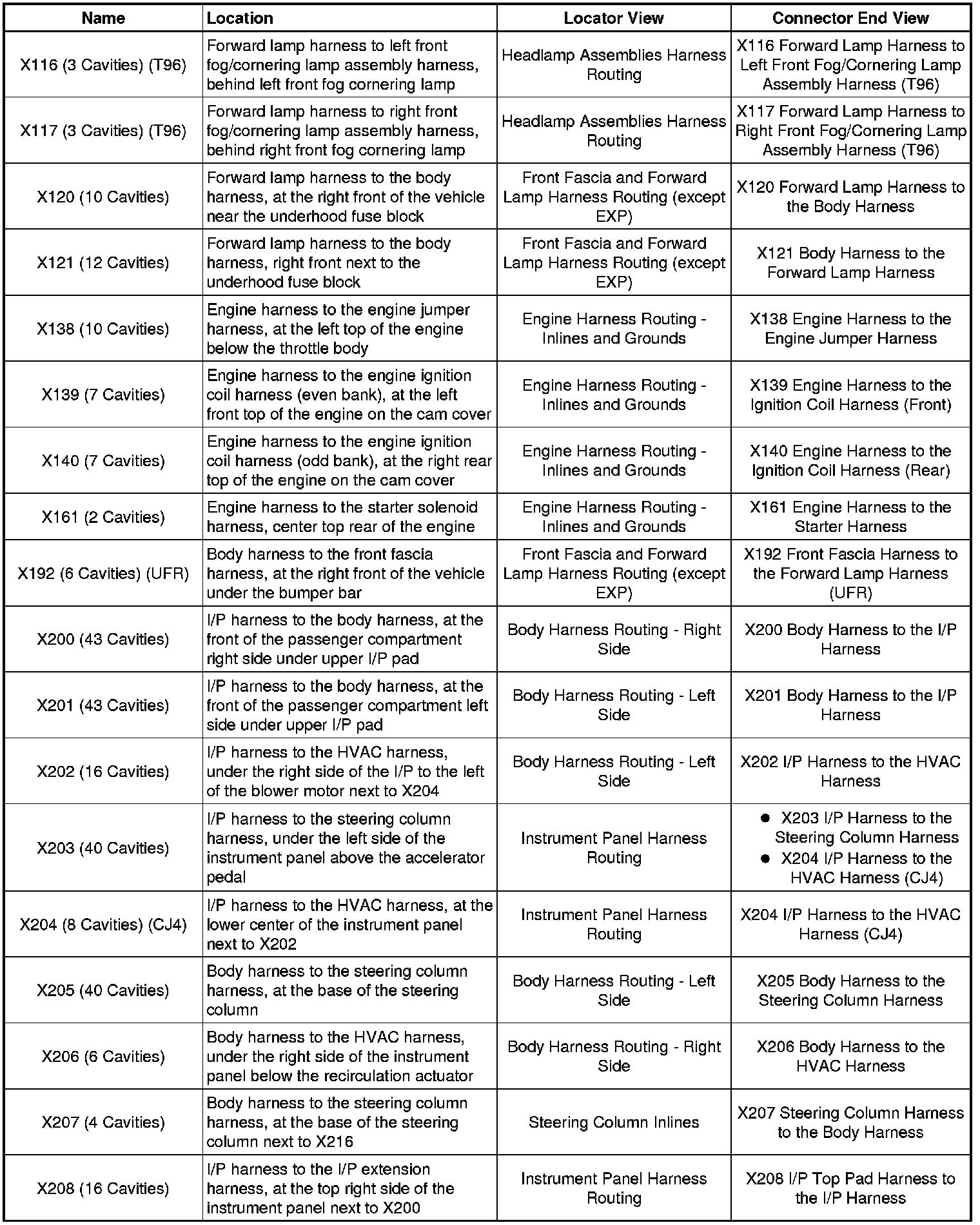

X116 - X208:

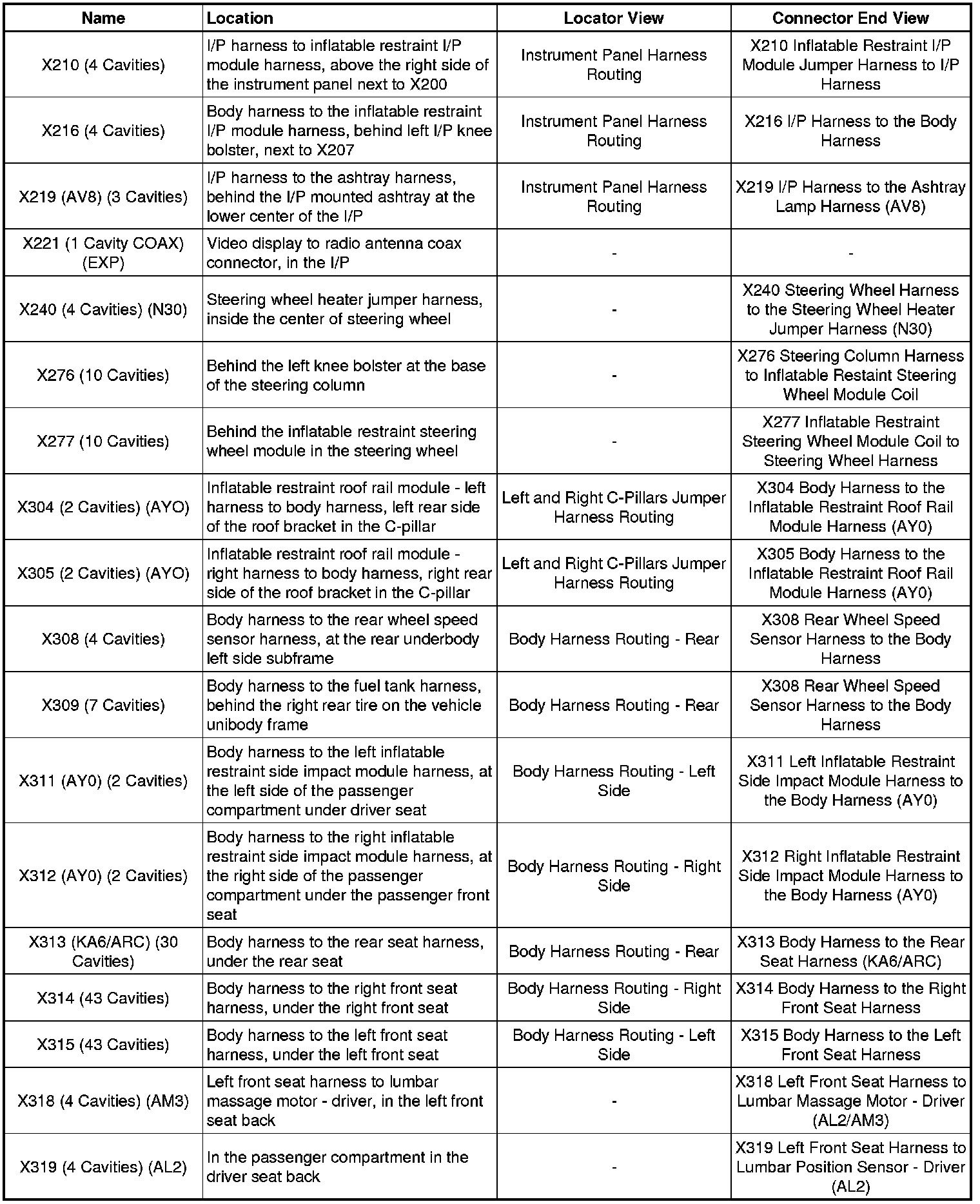

X210 - X319:

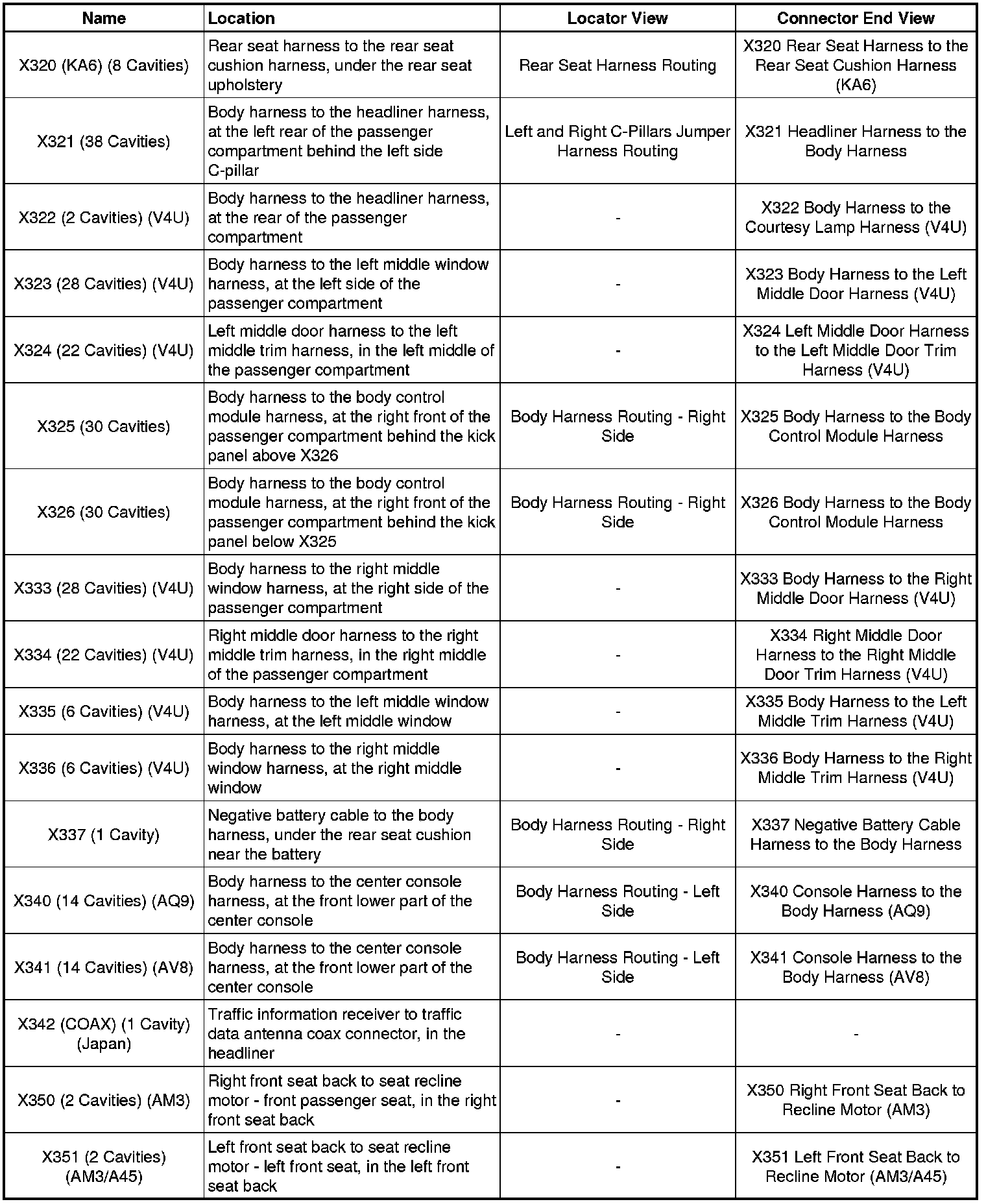

X320 - X351:

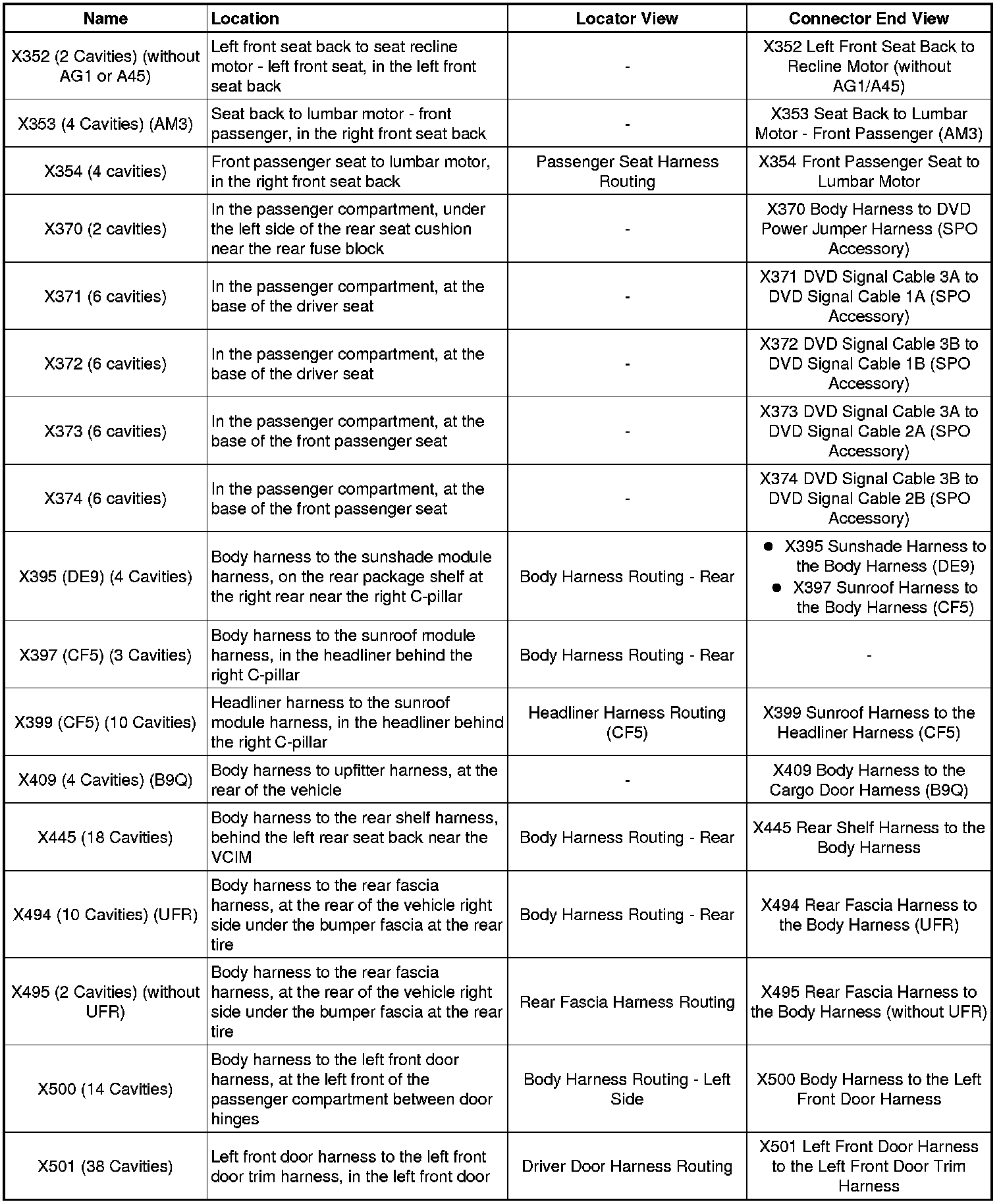

X352 - X501:
X600 - G301:
