Front Door Latch
Component Connector End Views

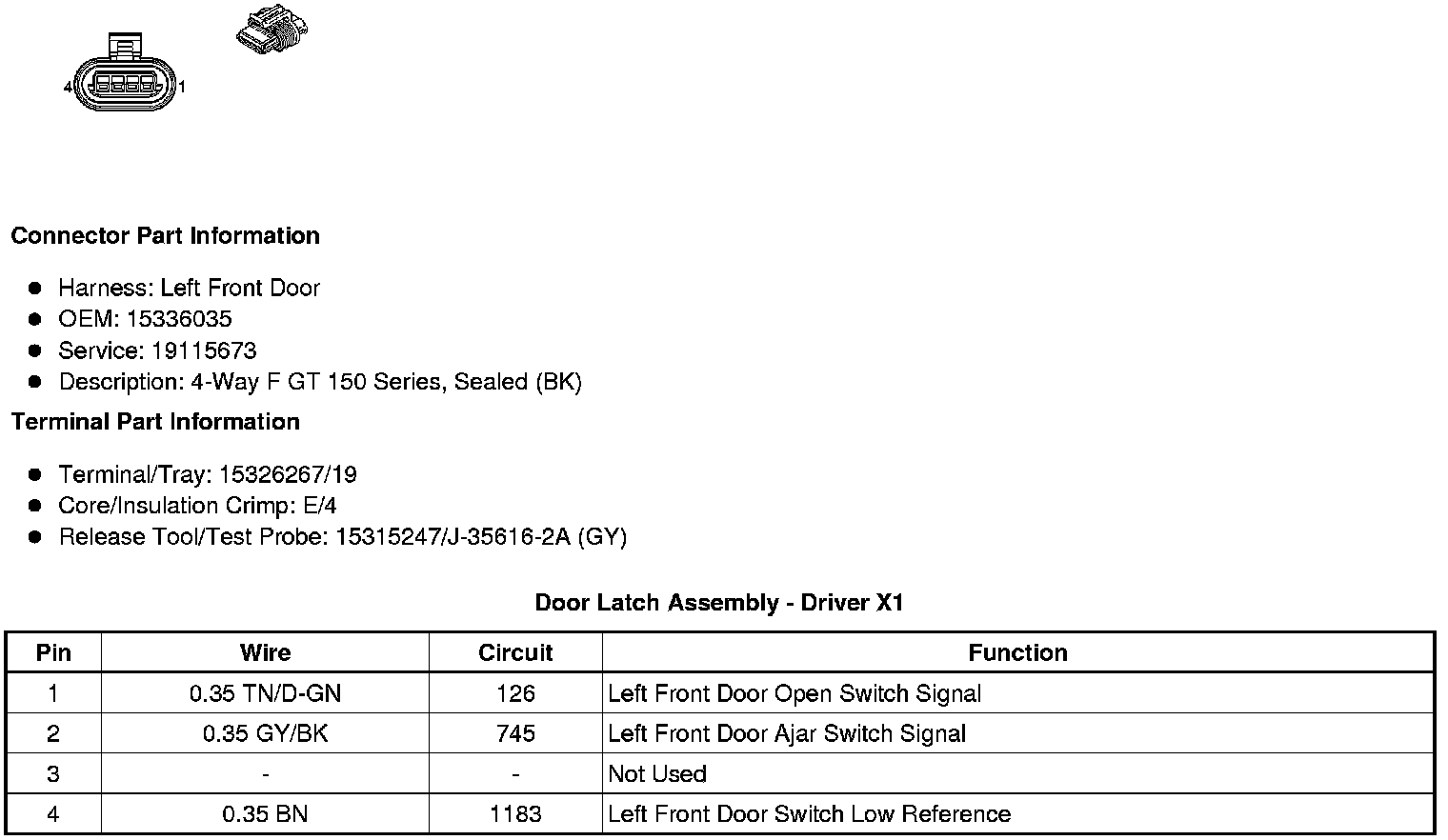

Door Latch Assembly - Driver X1

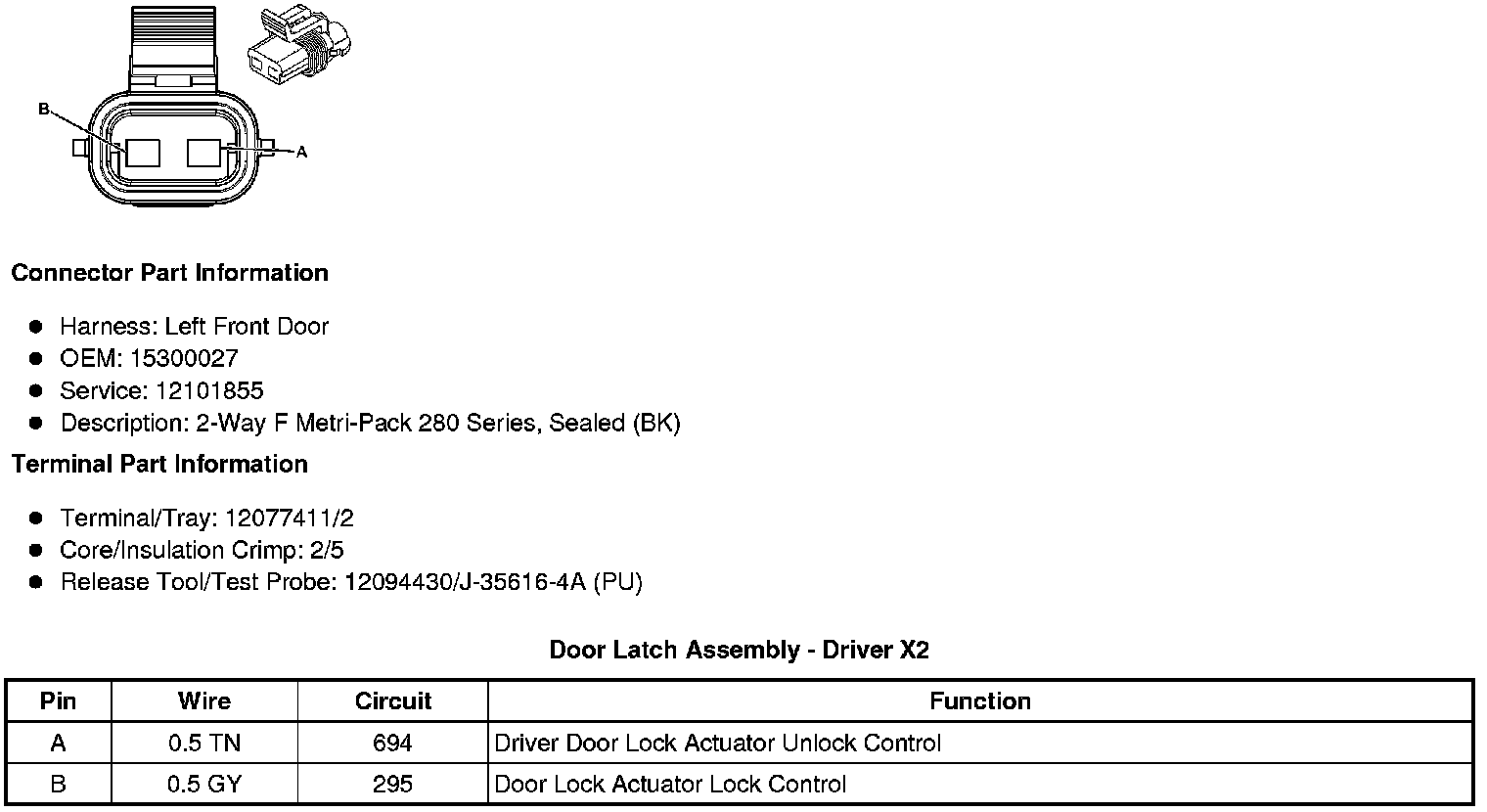

Door Latch Assembly - Driver X2

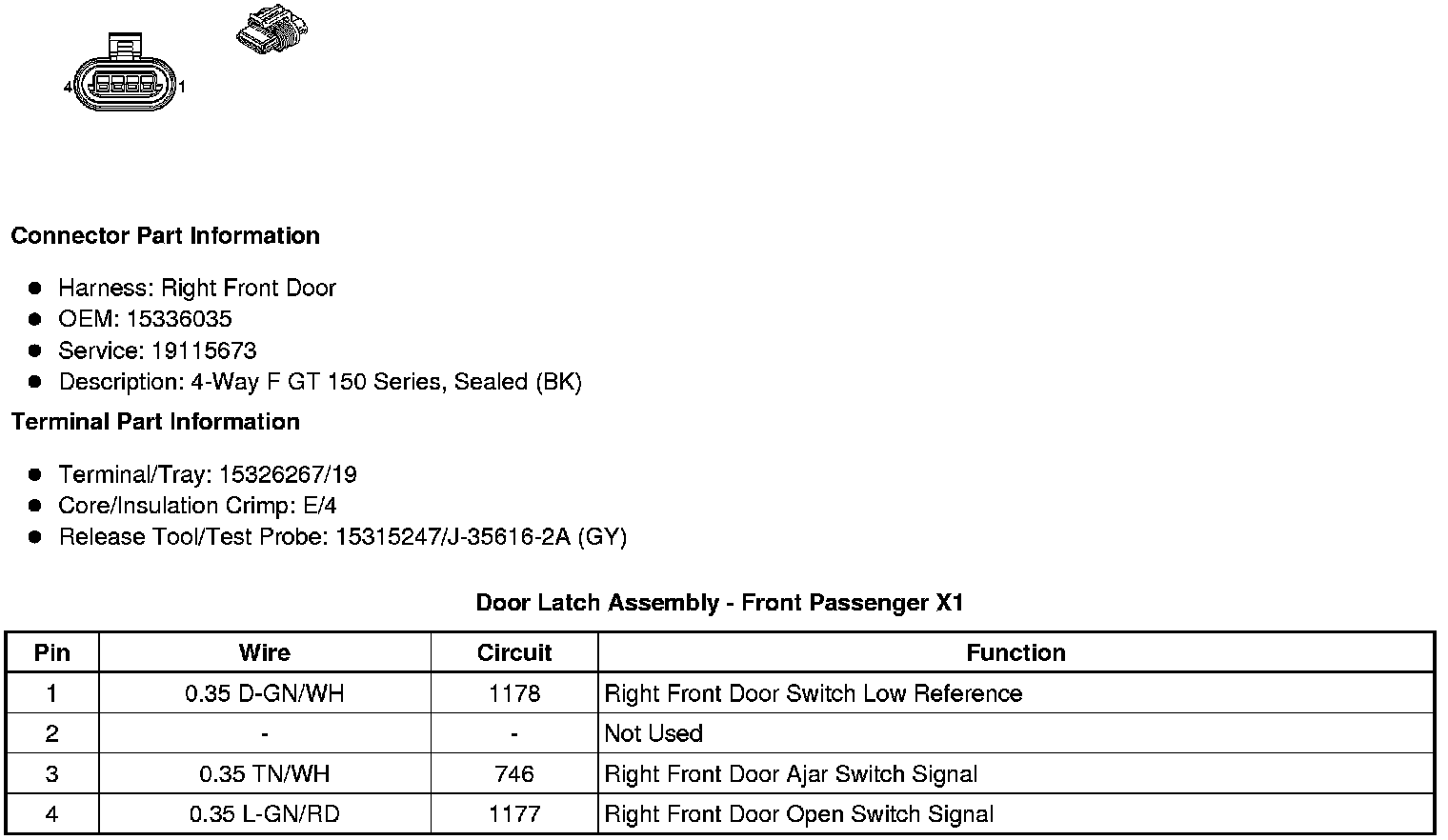

Door Latch Assembly - Front Passenger X1

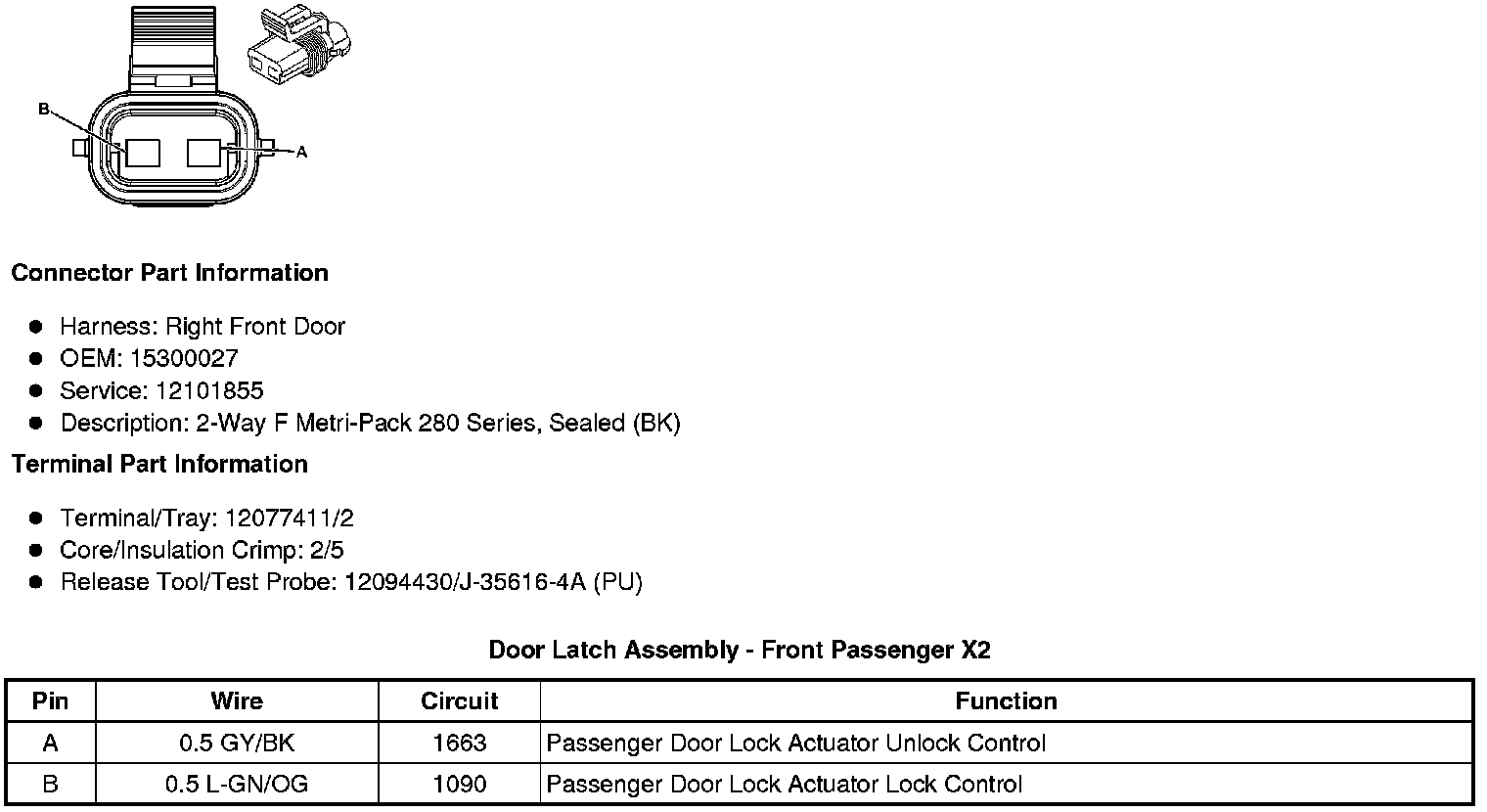

Door Latch Assembly - Front Passenger X2
Component Connector End Views
Door Latch Assembly - Driver X1
Door Latch Assembly - Driver X2
Door Latch Assembly - Front Passenger X1
Door Latch Assembly - Front Passenger X2
