X802

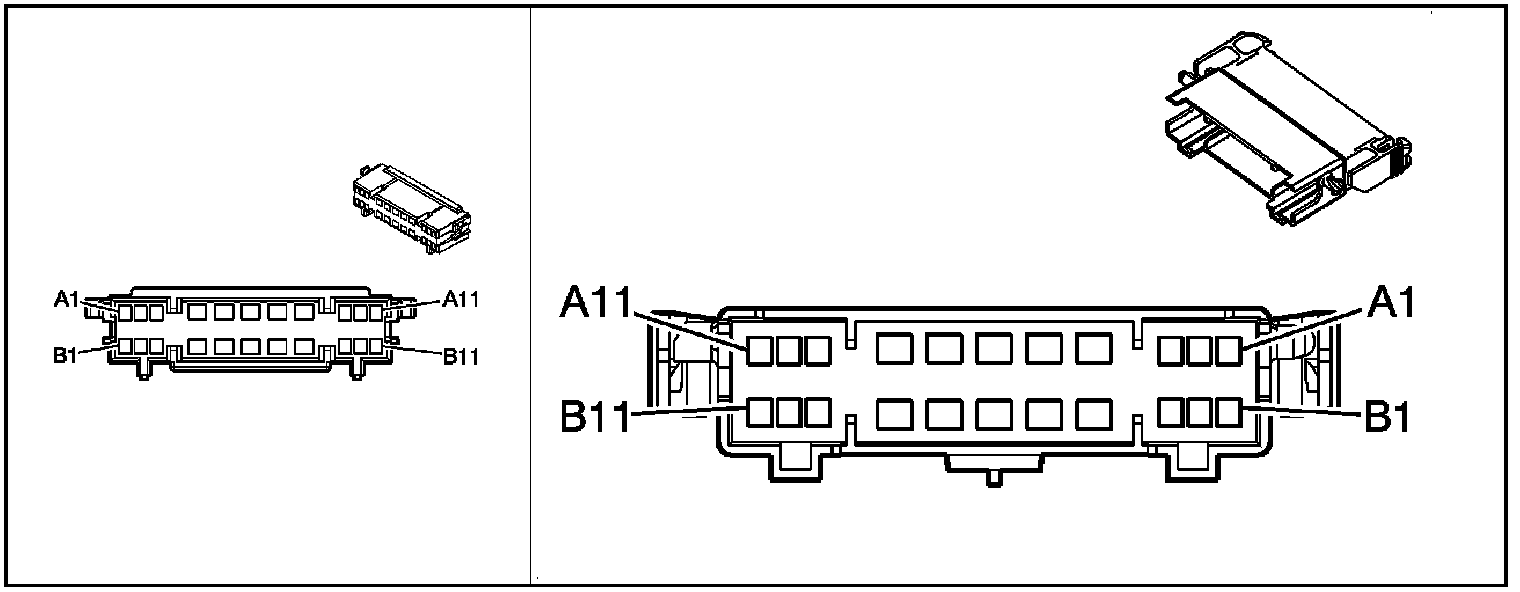

Inline Harness Connector End Views

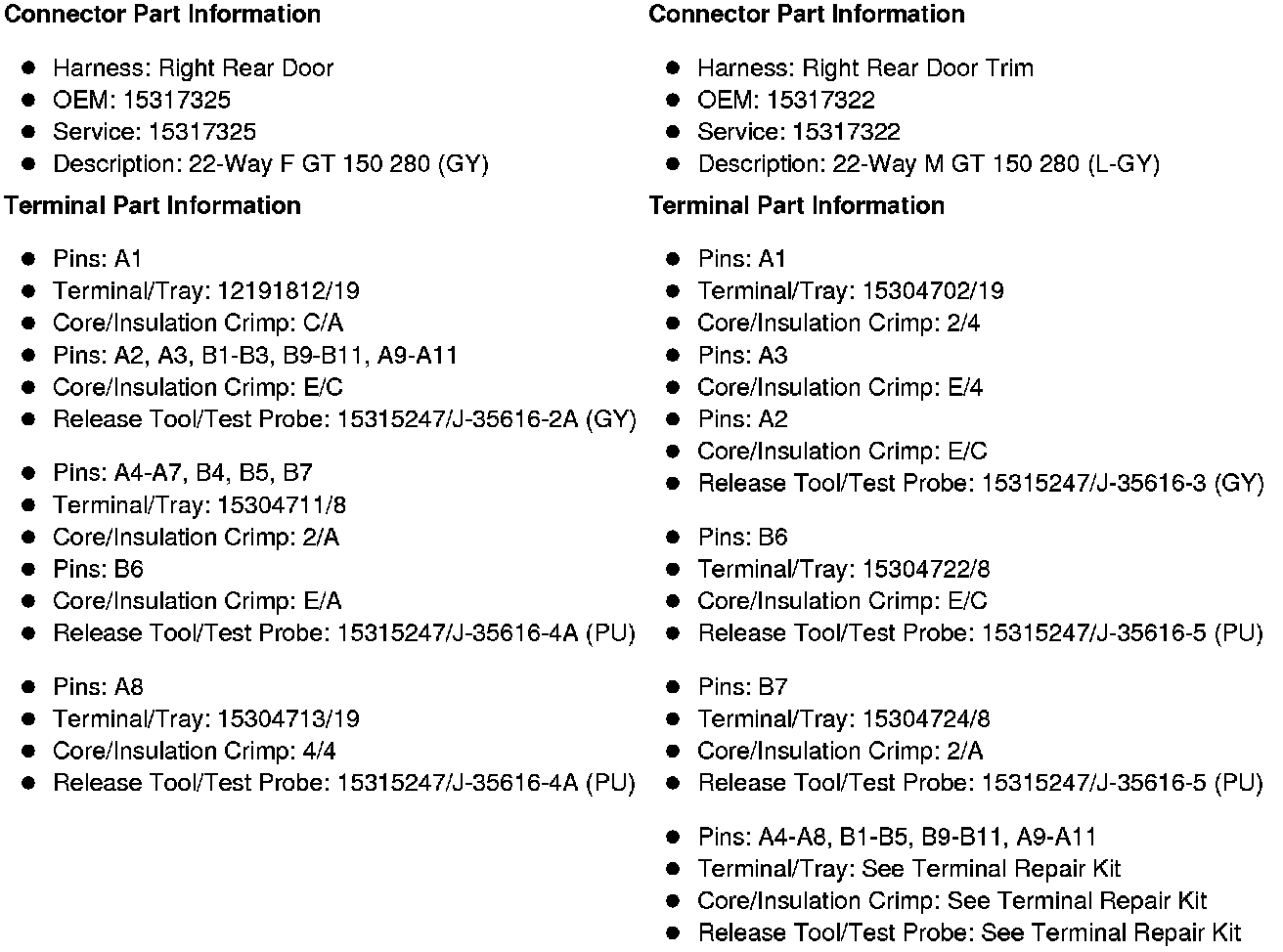

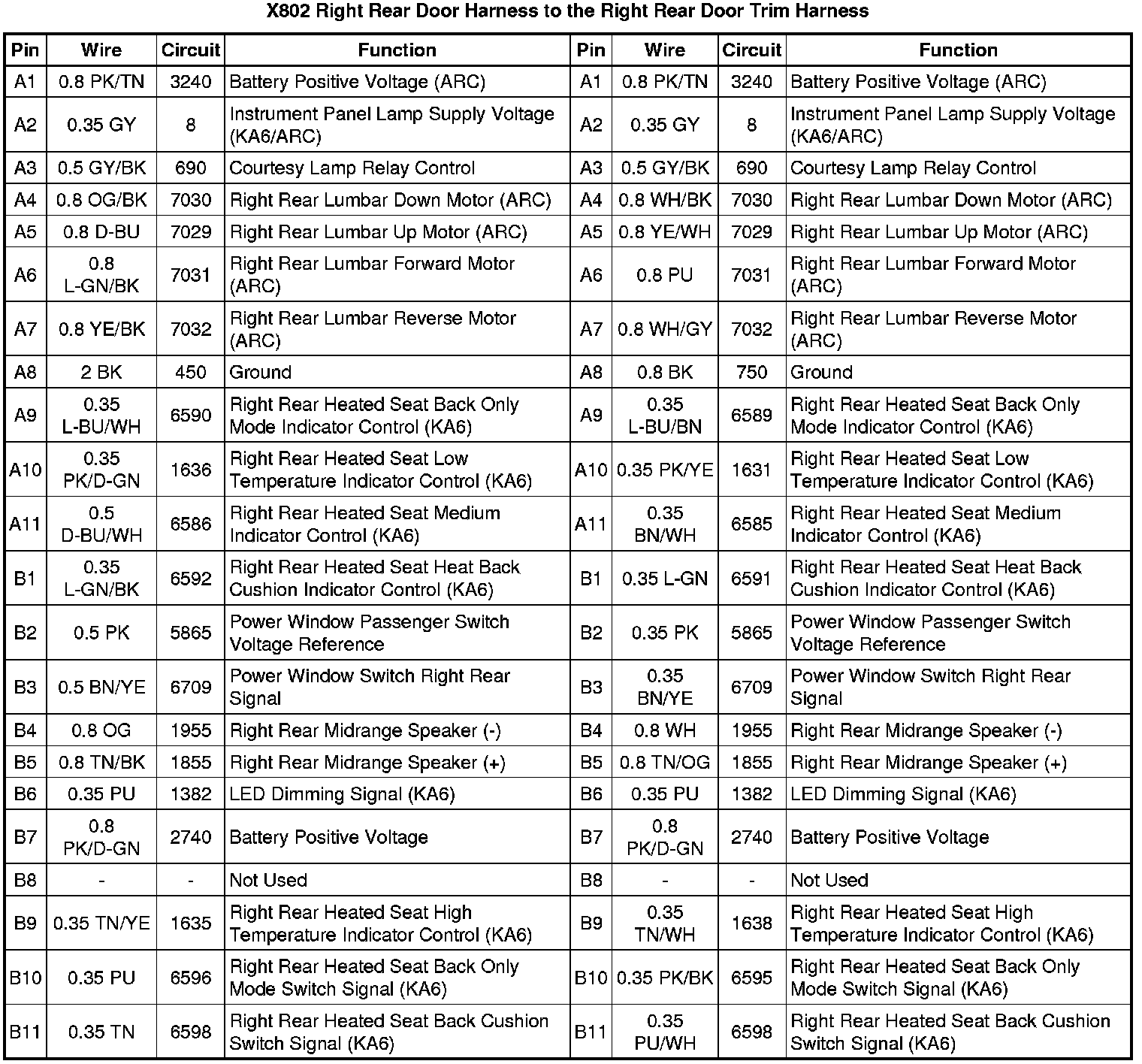

X802 Right Rear Door Harness to the Right Rear Door Trim Harness
