X702

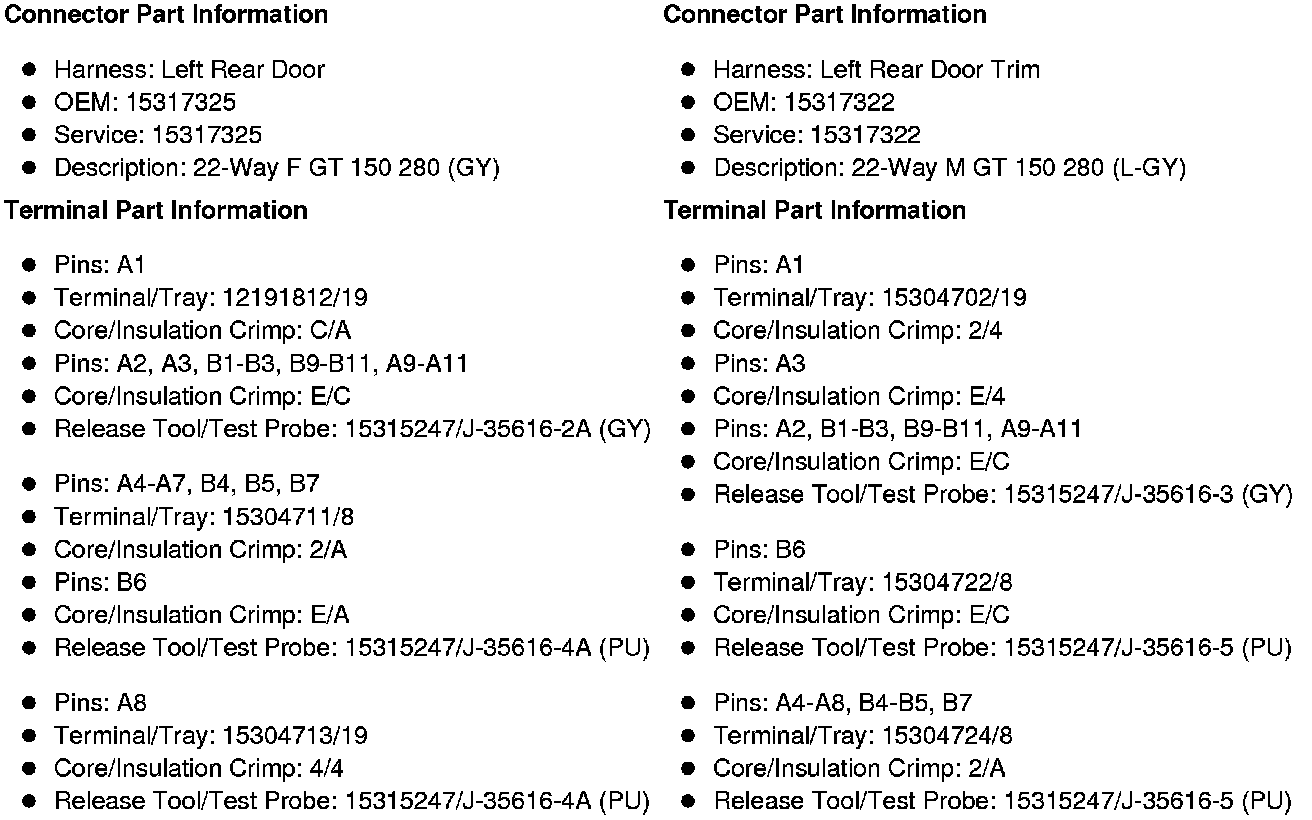

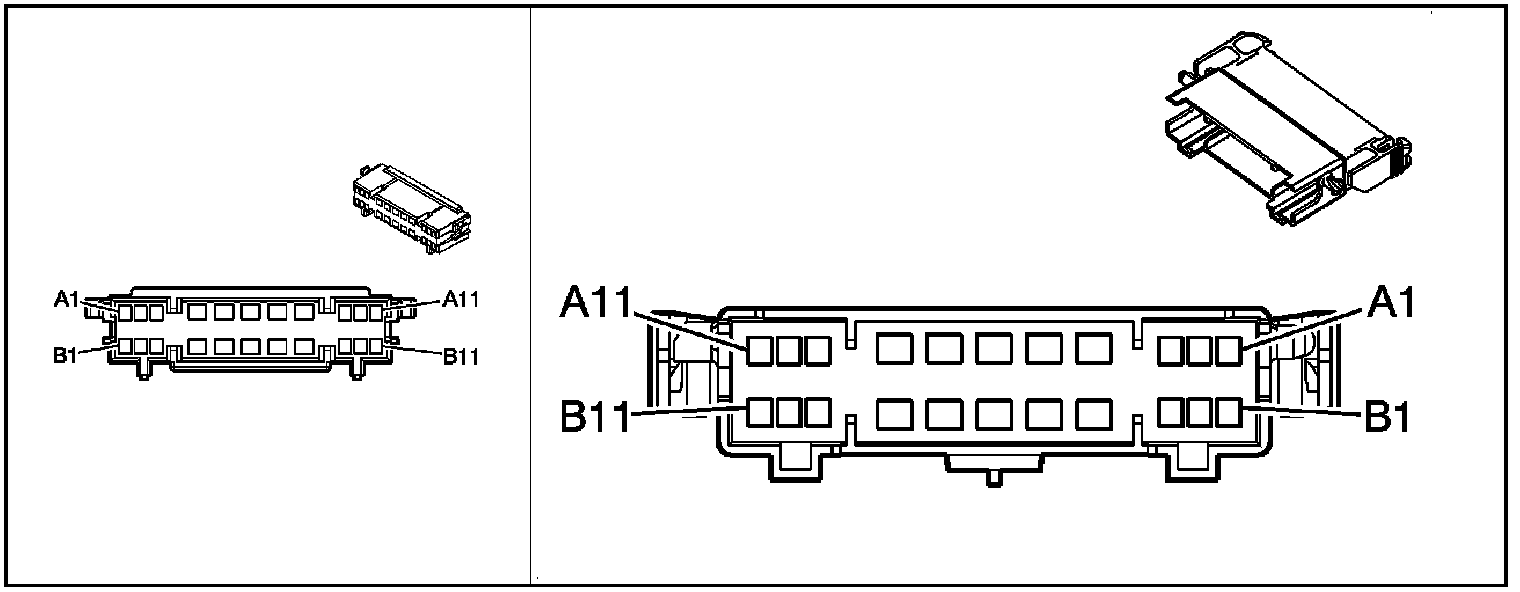

Inline Harness Connector End Views

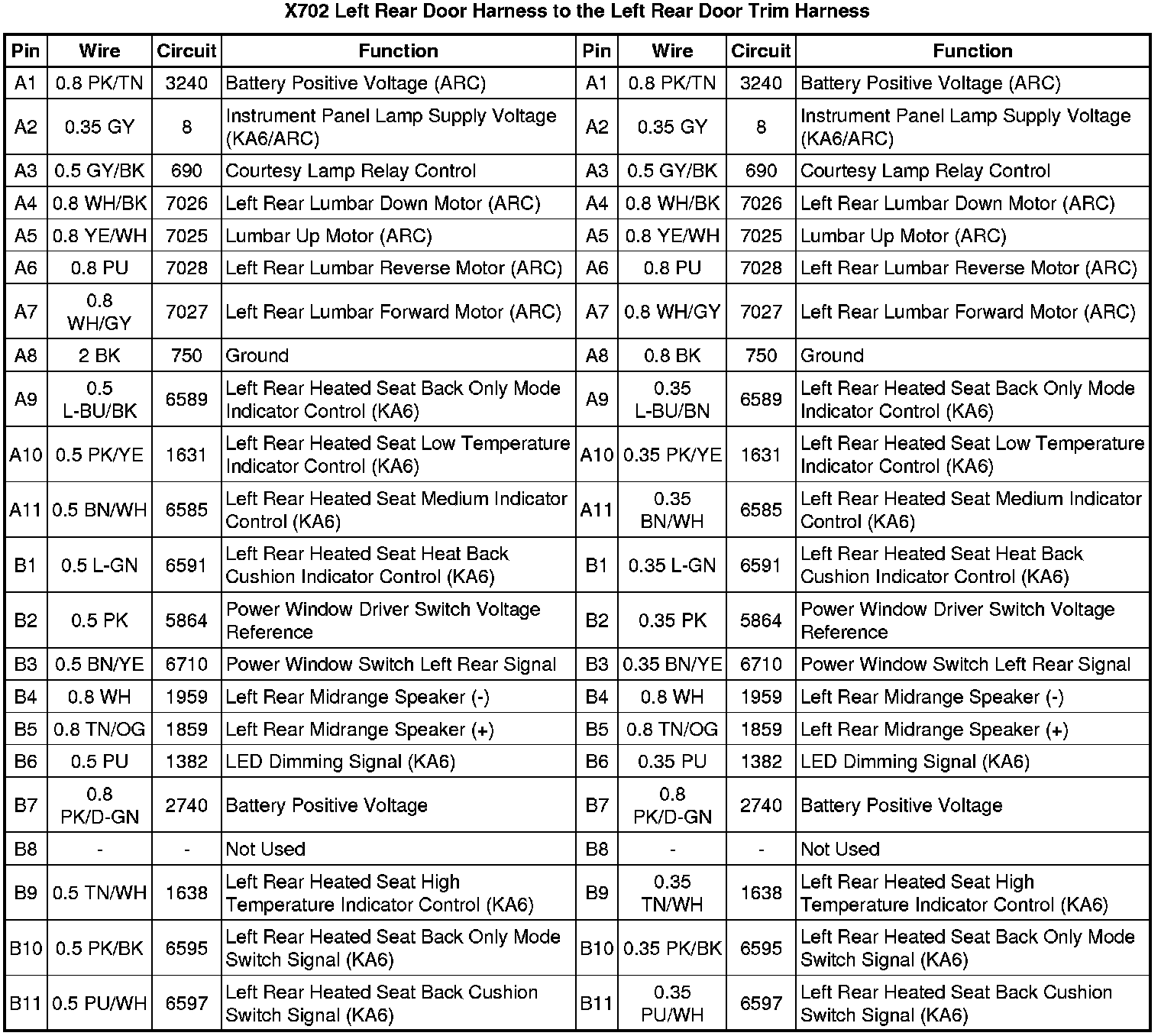

X702 Left Rear Door Harness to the Left Rear Door Trim Harness
