X504
X504

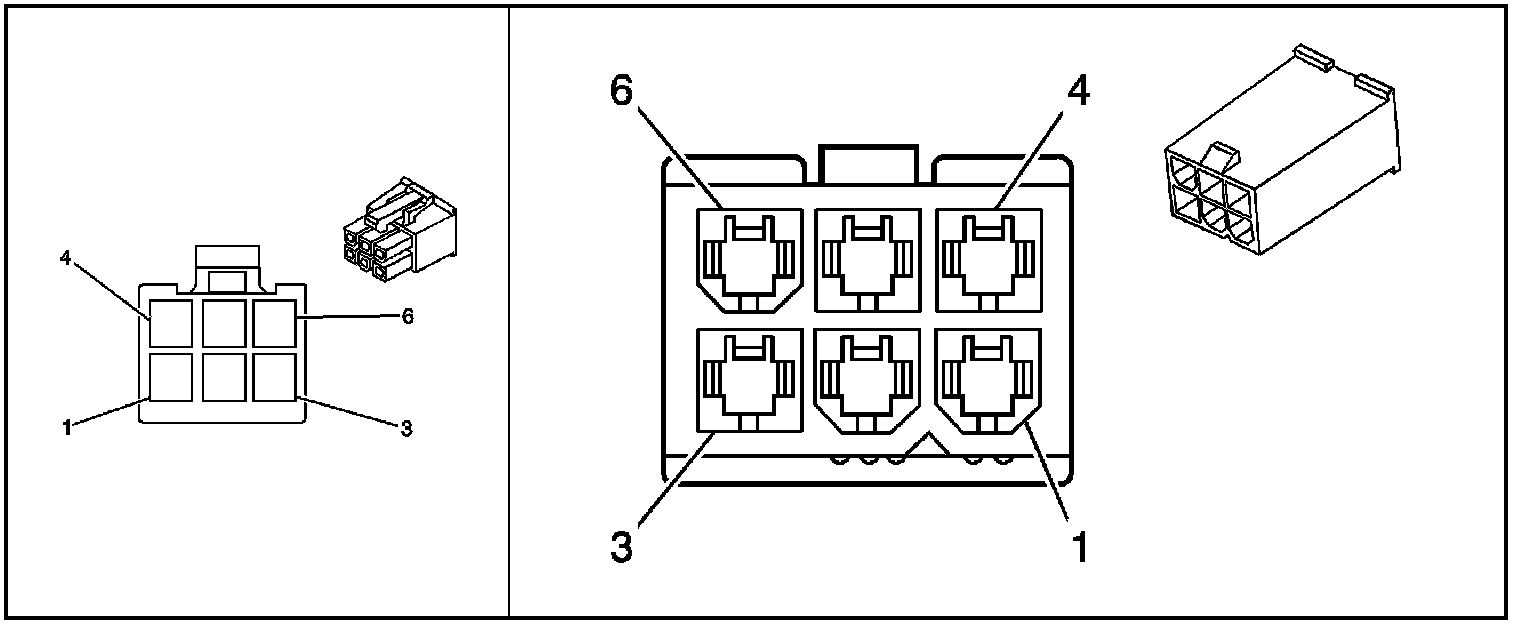

Inline Harness Connector End Views

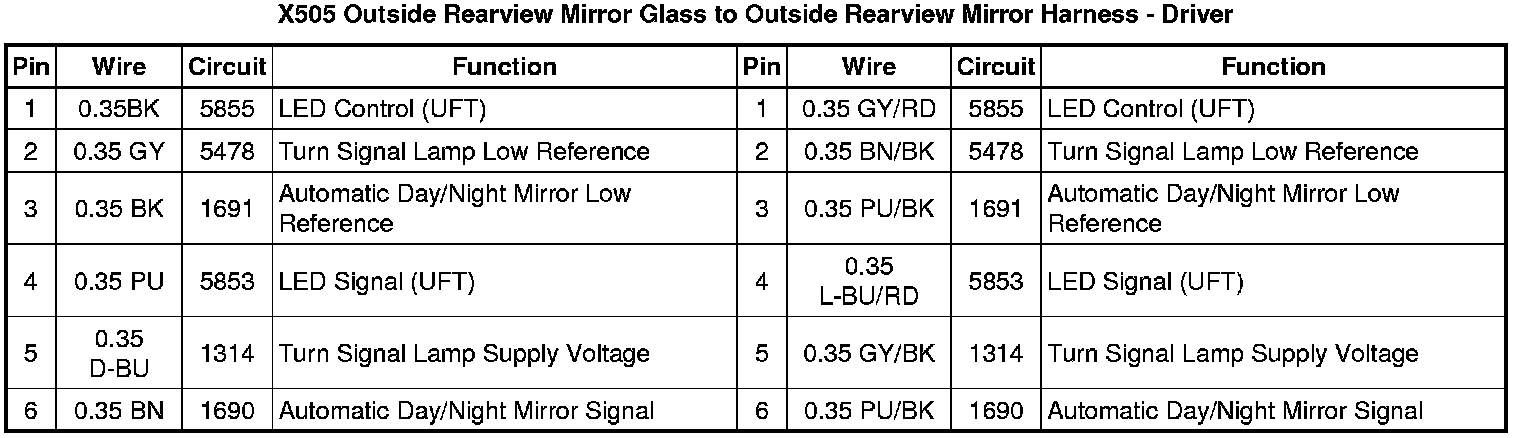

X505 Outside Rearview Mirror Glass to Outside Rearview Mirror Harness - Driver
