X352

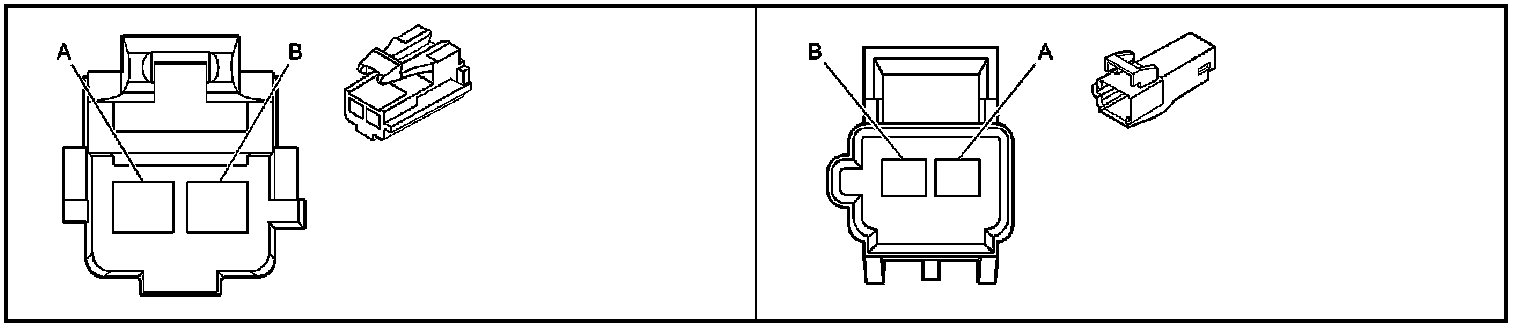

Inline Harness Connector End Views

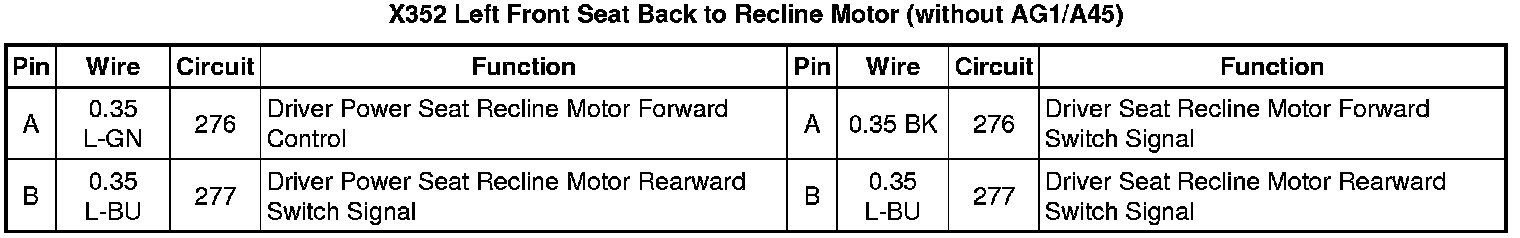

X352 Left Front Seat Back to Recline Motor (without AG1/A45)
