X334

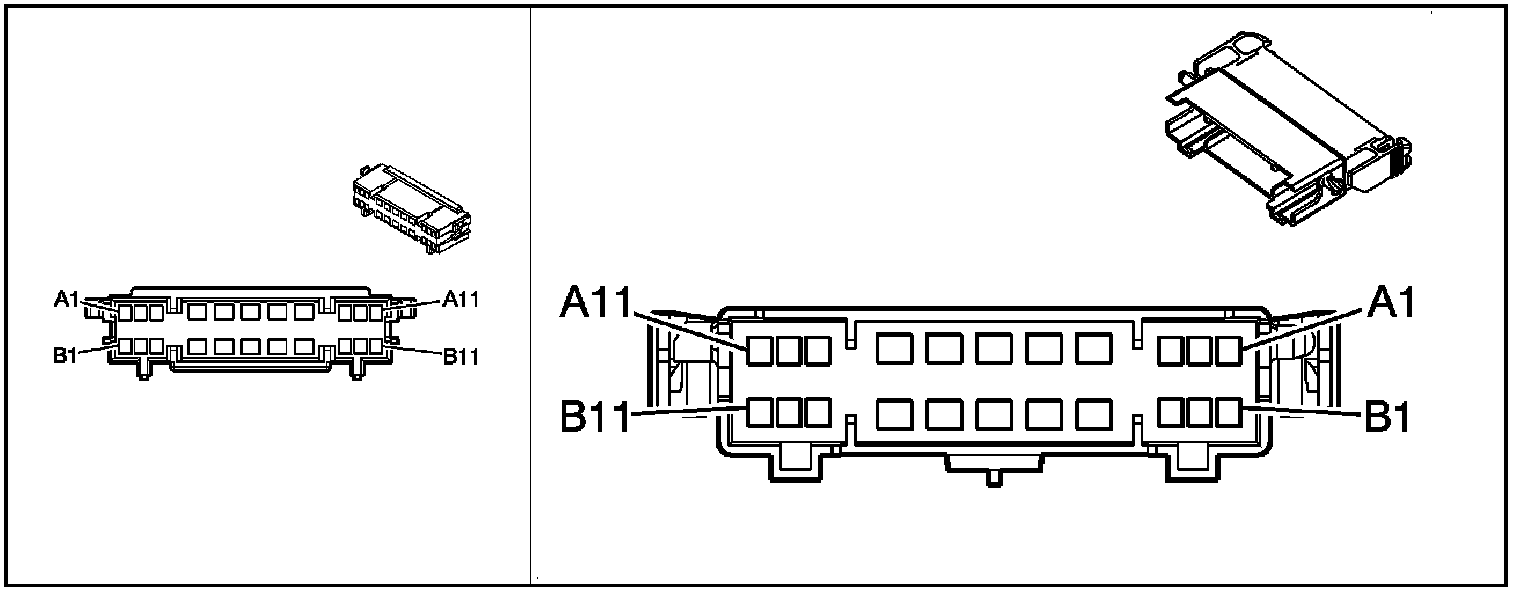

Inline Harness Connector End Views

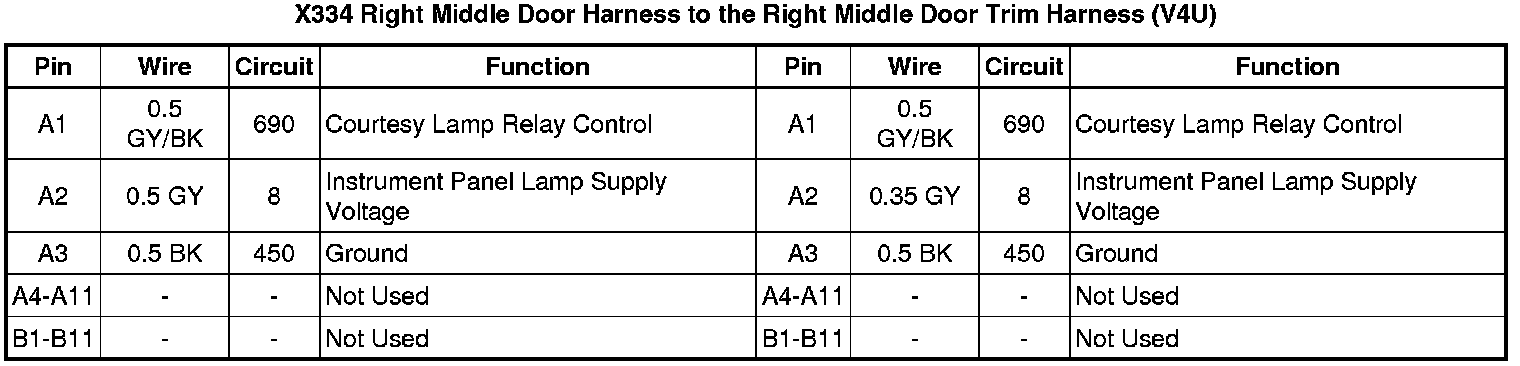

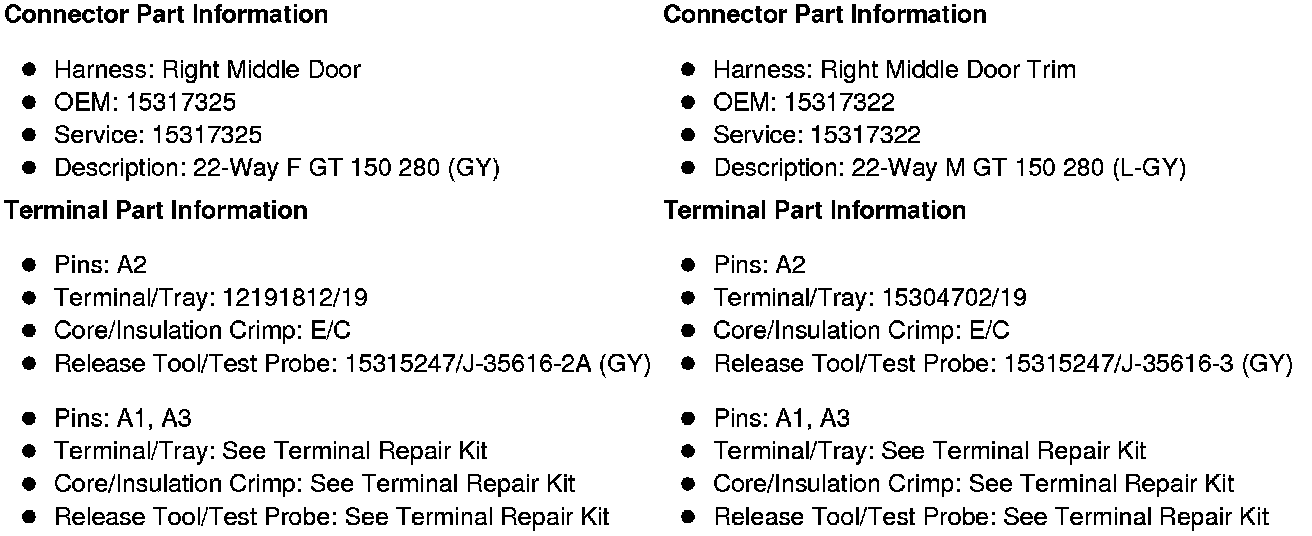

X334 Right Middle Door Harness to the Right Middle Door Trim Harness (V4U)
