X324

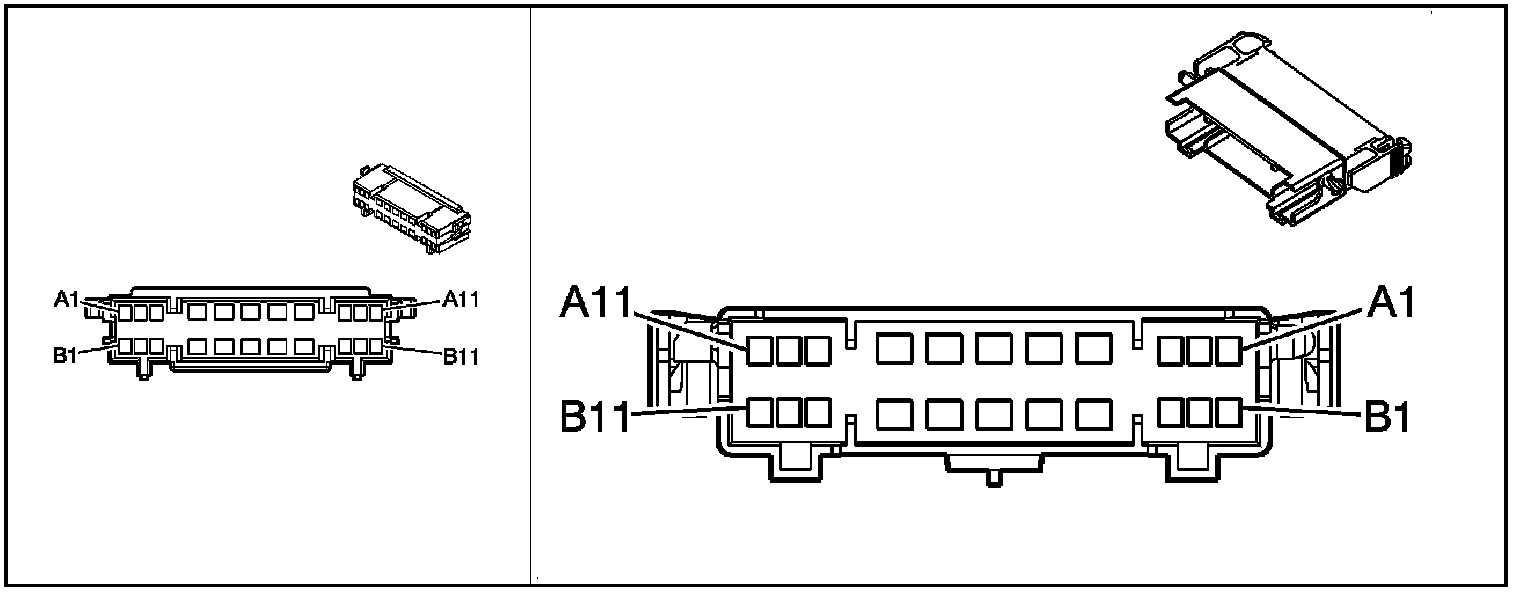

Inline Harness Connector End Views

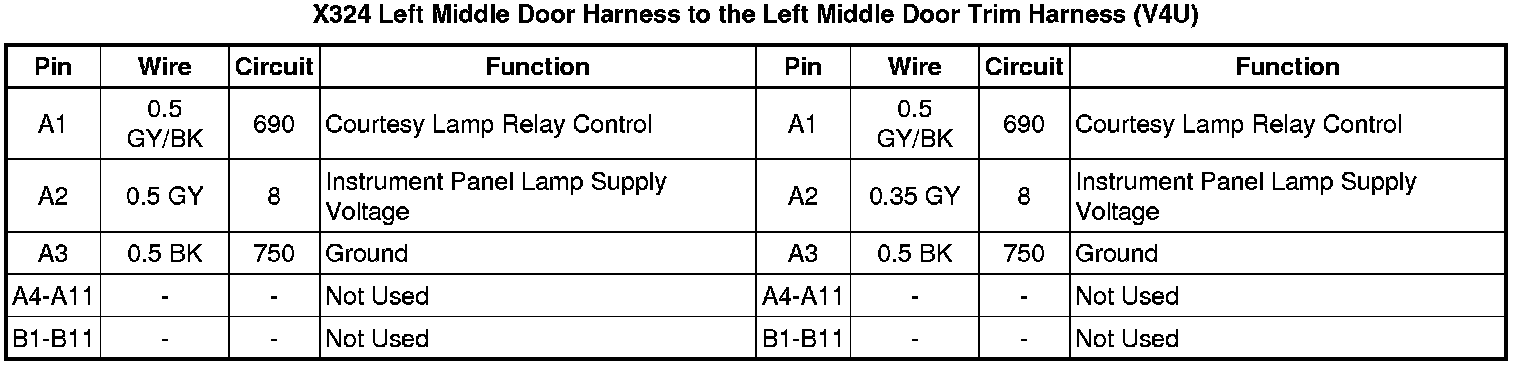

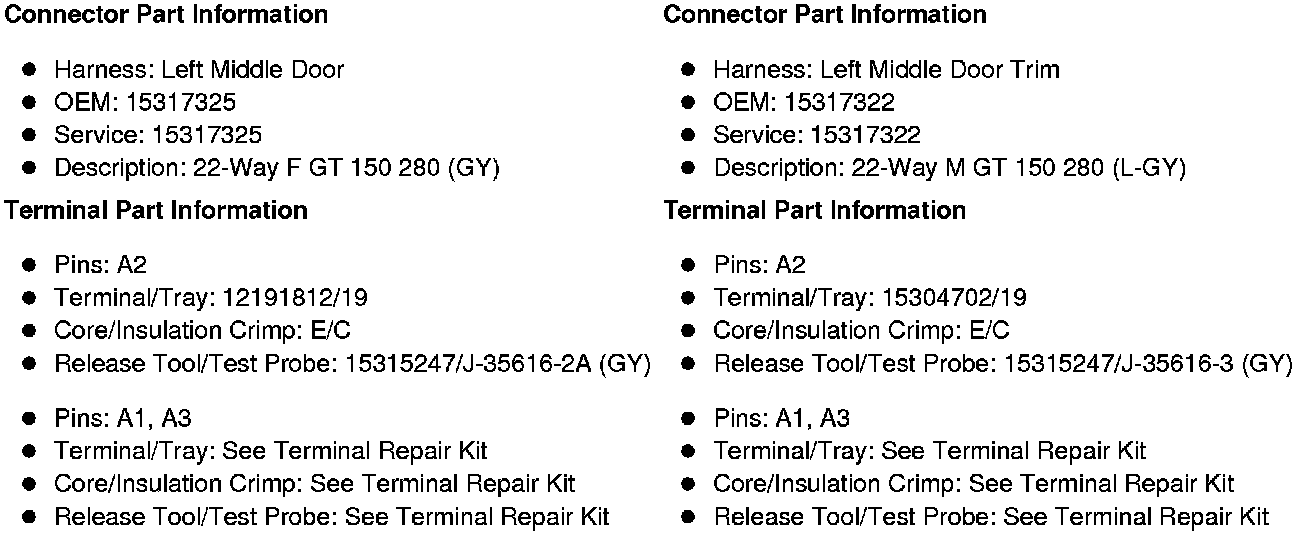

X324 Left Middle Door Harness to the Left Middle Door Trim Harness (V4U)
