X318

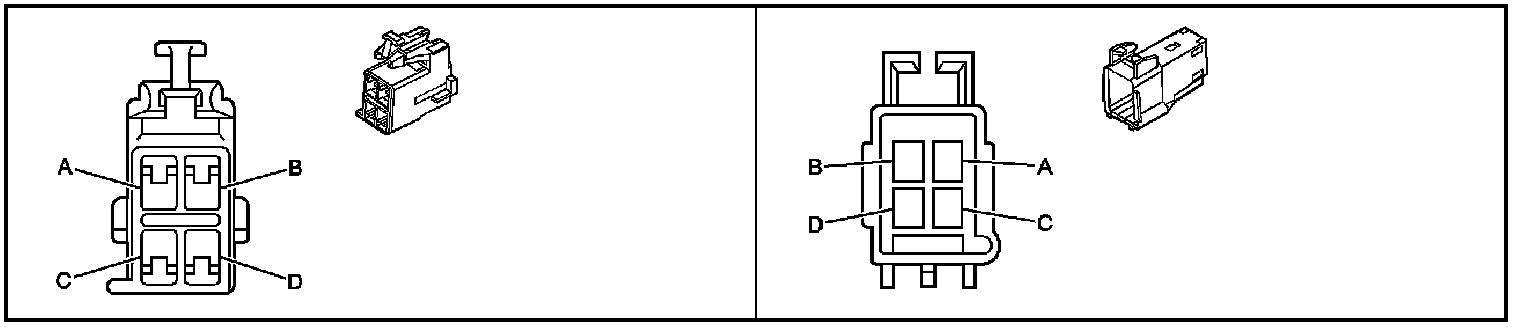

Inline Harness Connector End Views

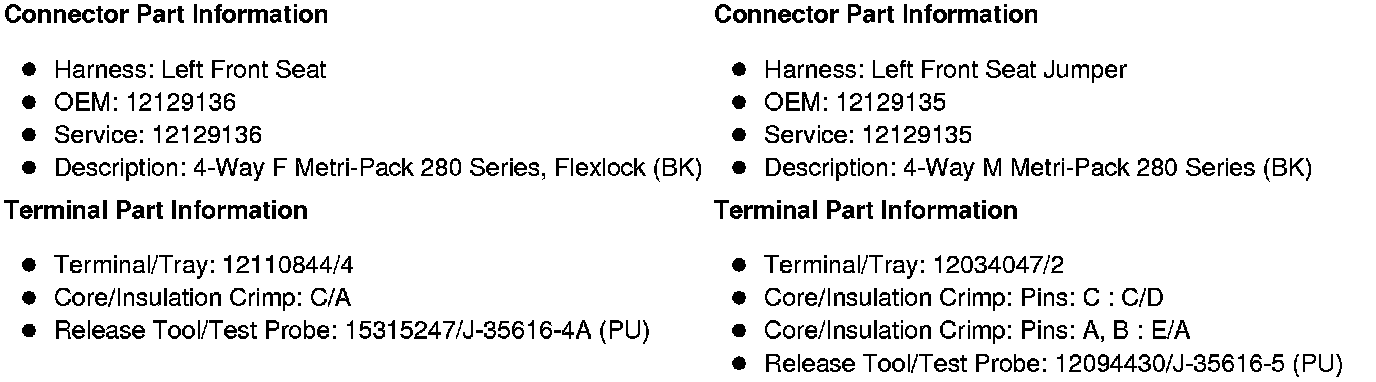

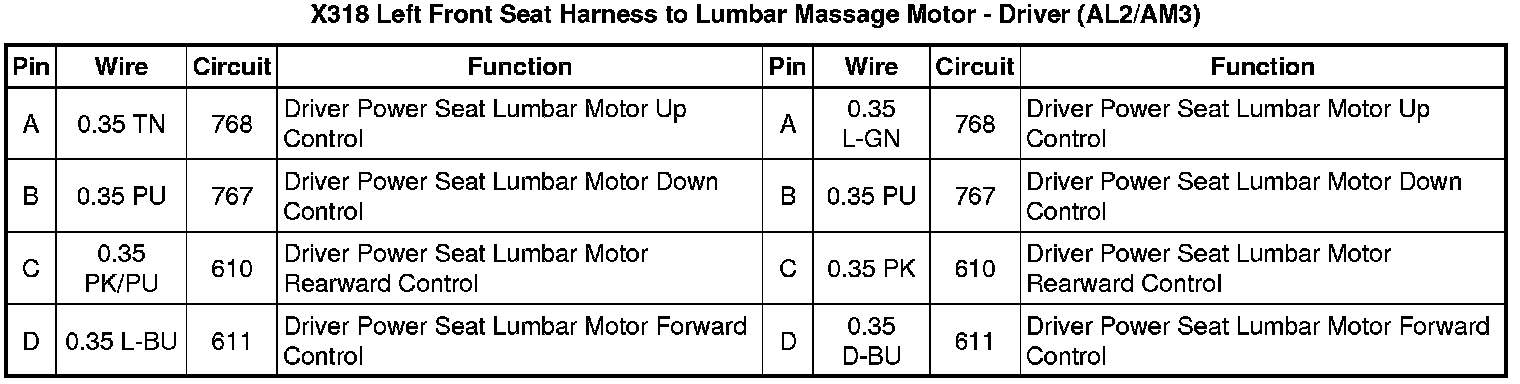

X318 Left Front Seat Harness to Lumbar Massage Motor - Driver (AL2/AM3)
