X311

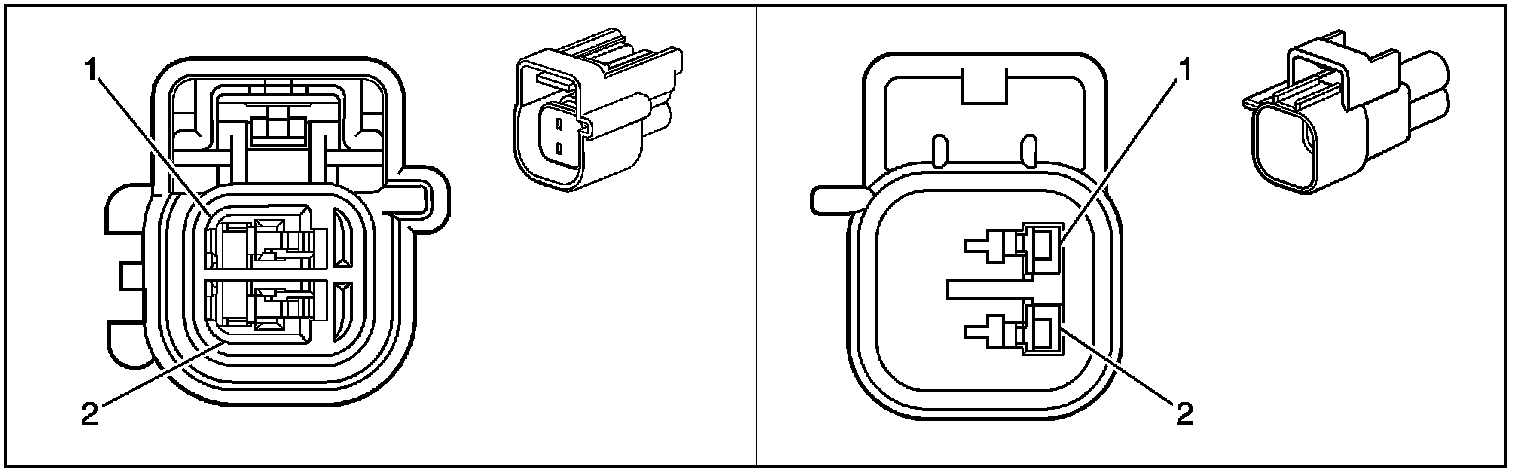

Inline Harness Connector End Views

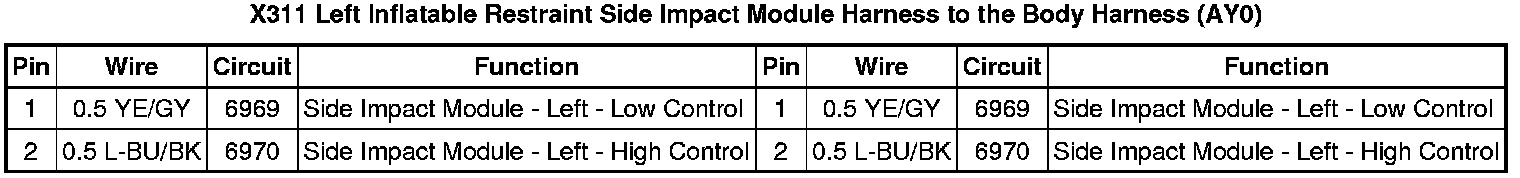

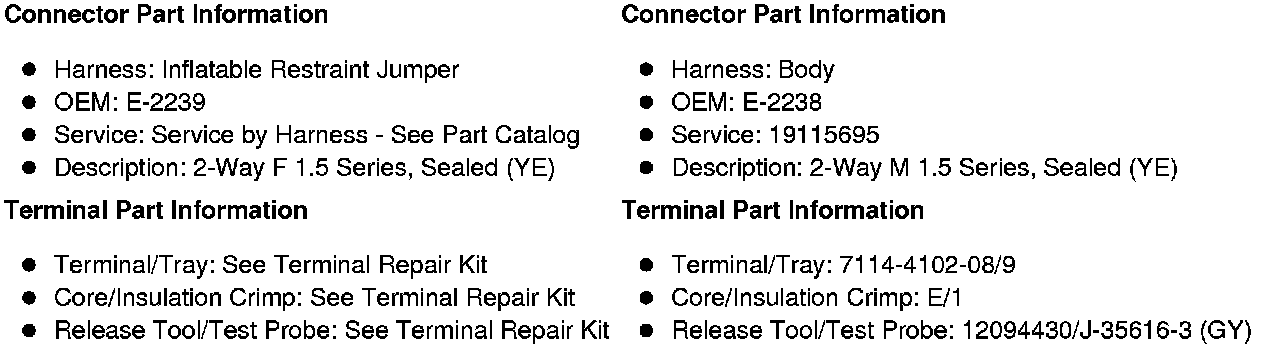

X311 Left Inflatable Restraint Side Impact Module Harness to the Body Harness (AY0)
