X305

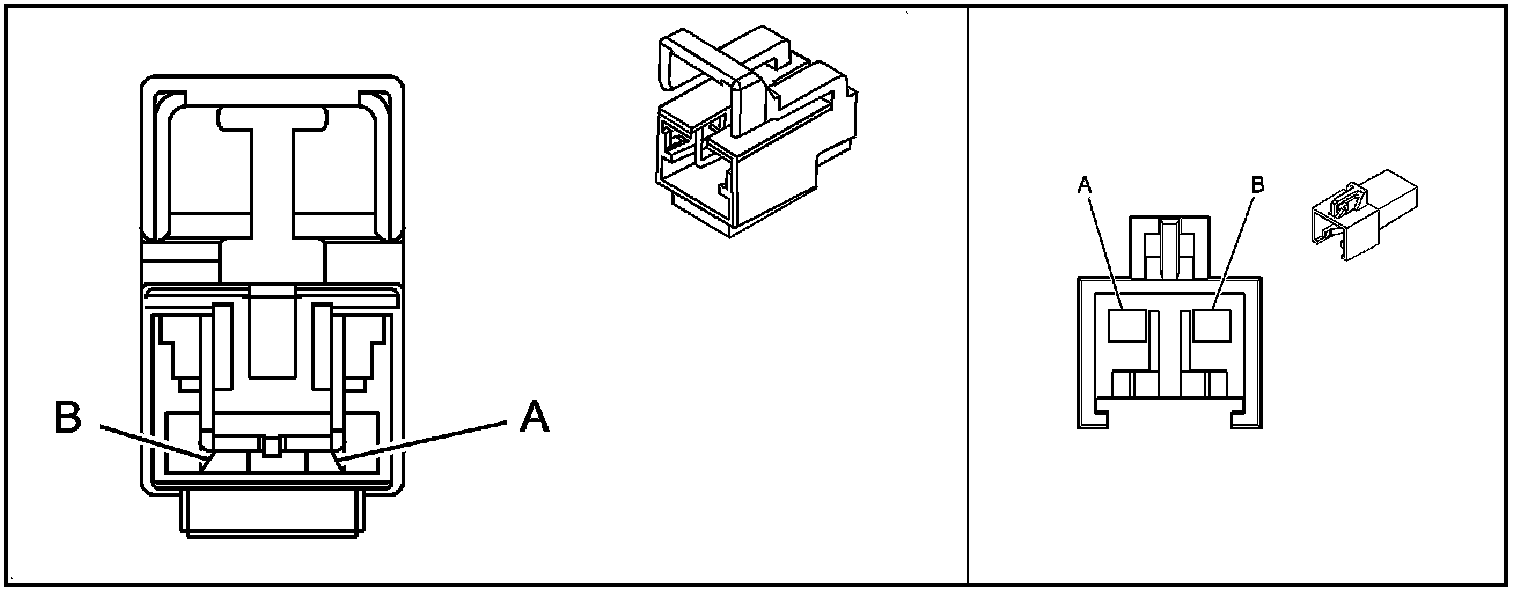

Inline Harness Connector End Views

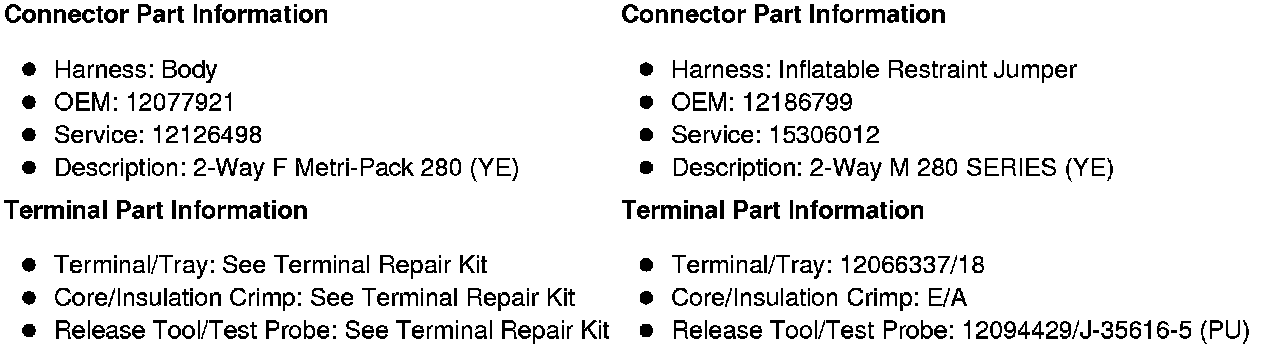

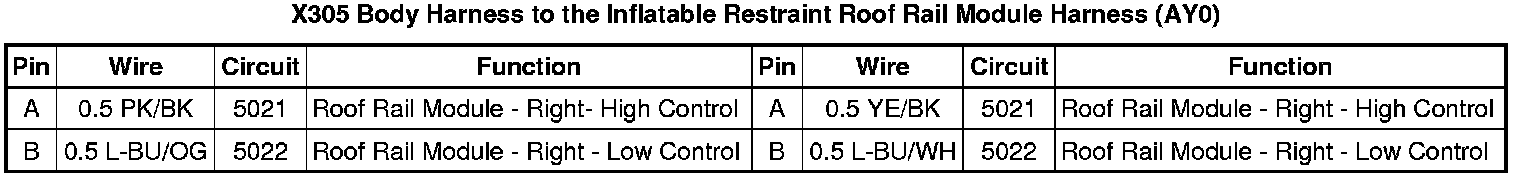

X305 Body Harness to the Inflatable Restraint Roof Rail Module Harness (AY0)
