X276

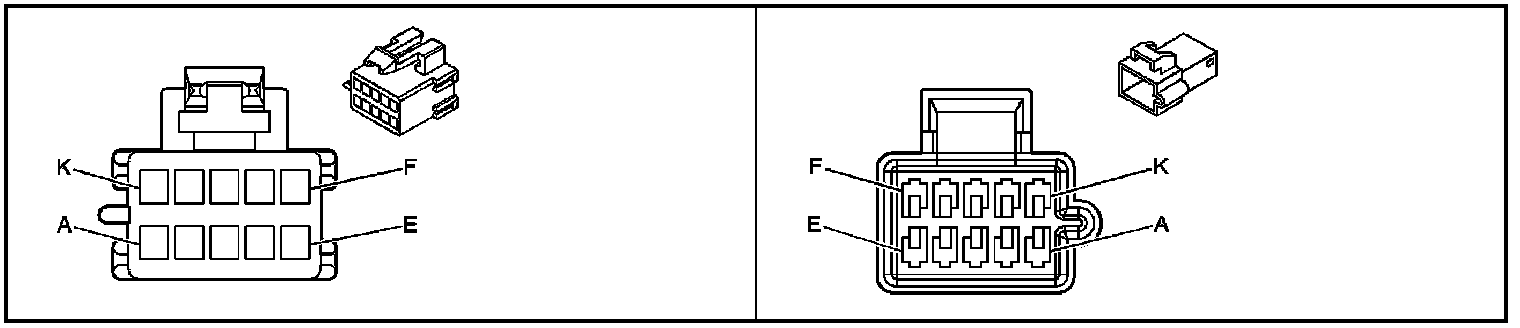

Inline Harness Connector End Views

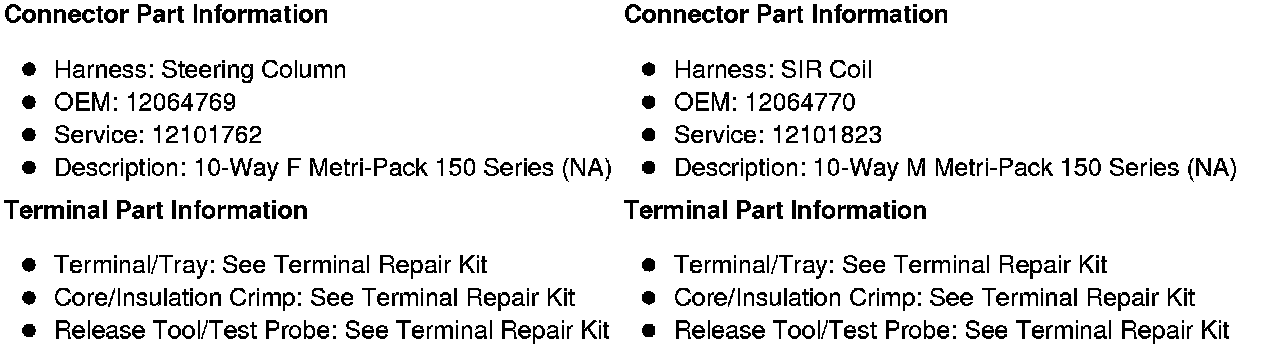

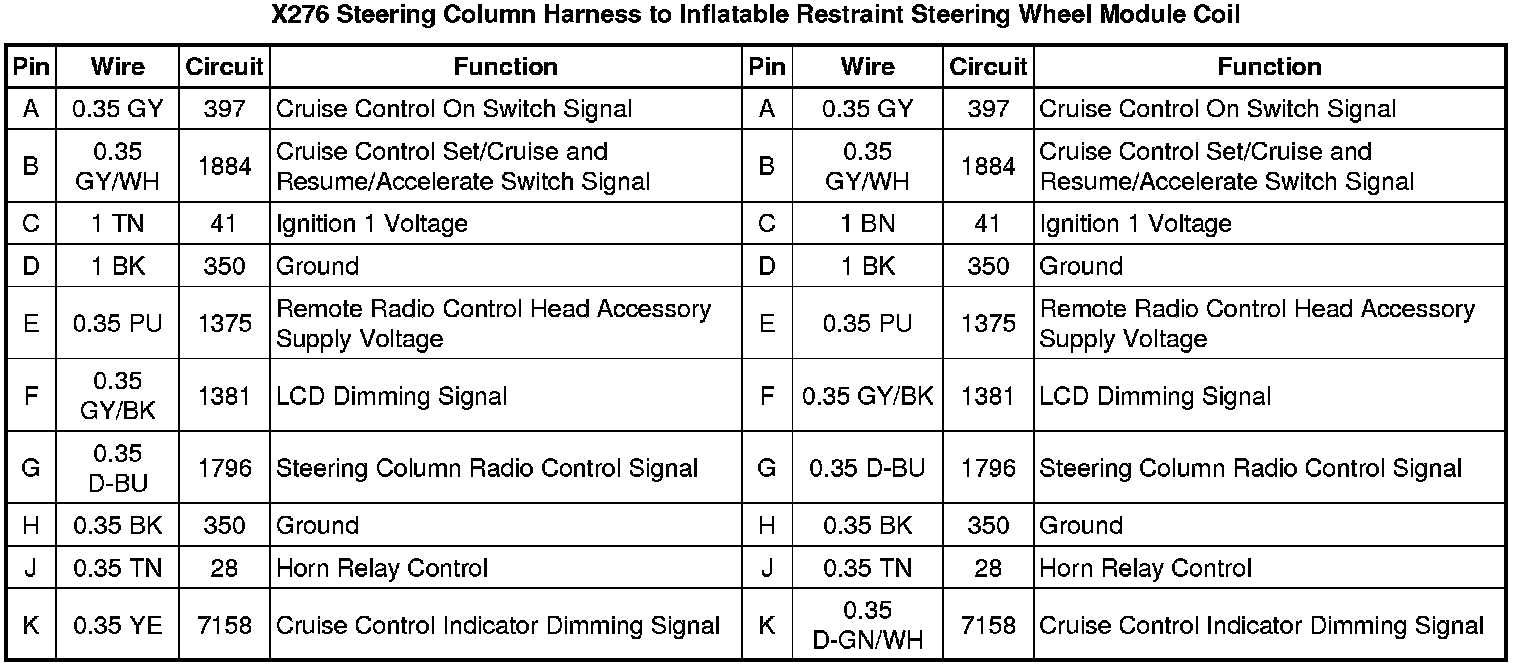

X276 Steering Column Harness to Inflatable Restraint Steering Wheel Module Coil
