X210

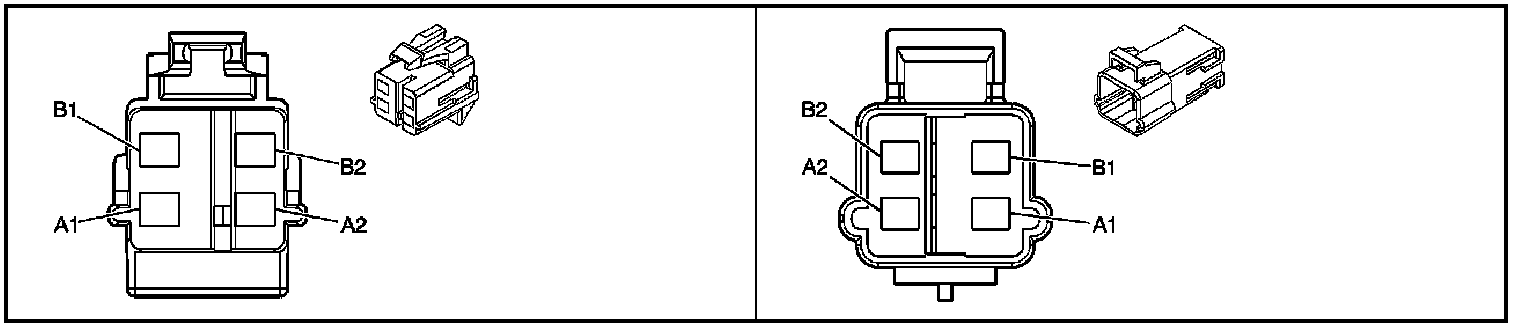

Inline Harness Connector End Views

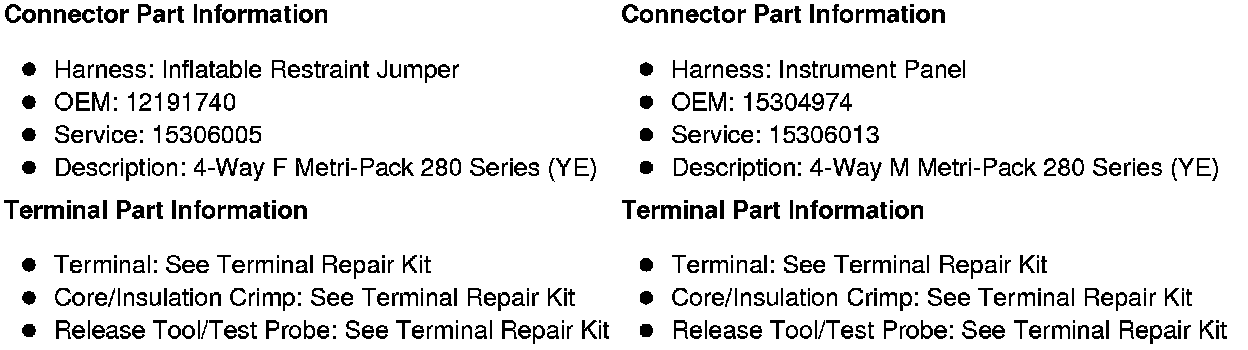

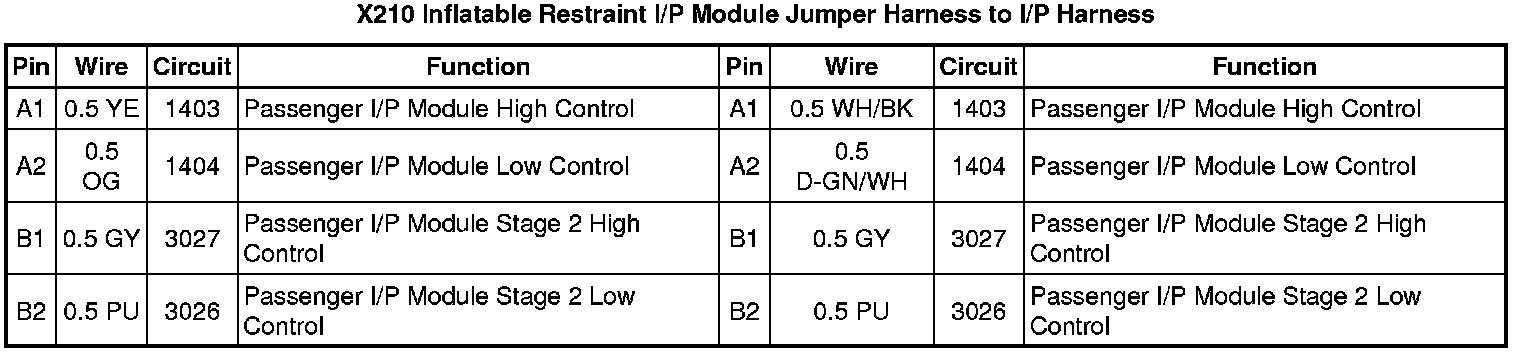

X210 Inflatable Restraint I/P Module Jumper Harness to I/P Harness
