X117

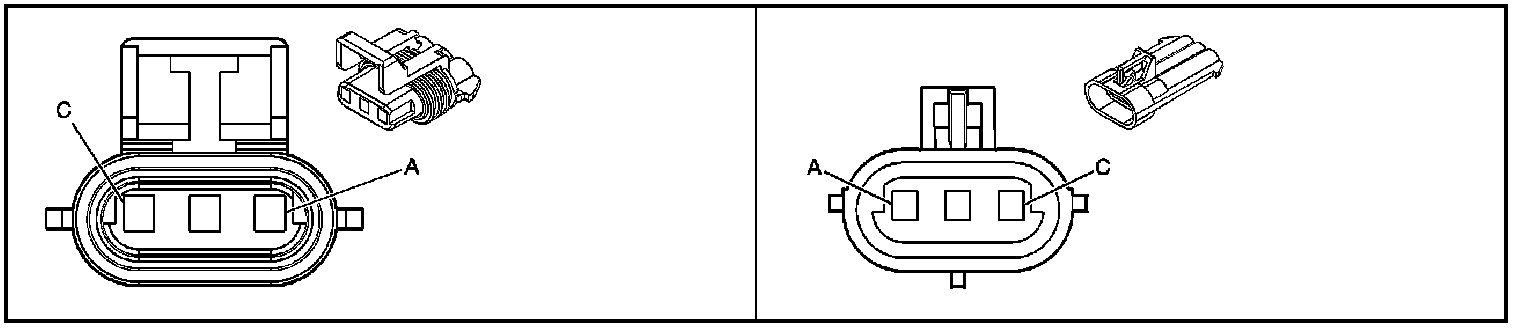

Inline Harness Connector End Views

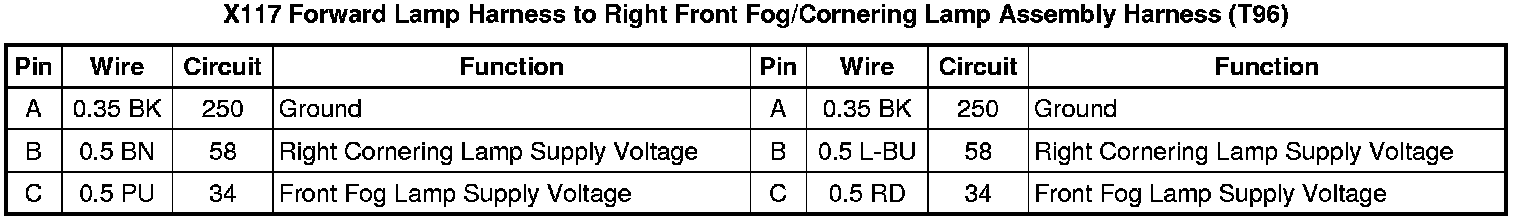

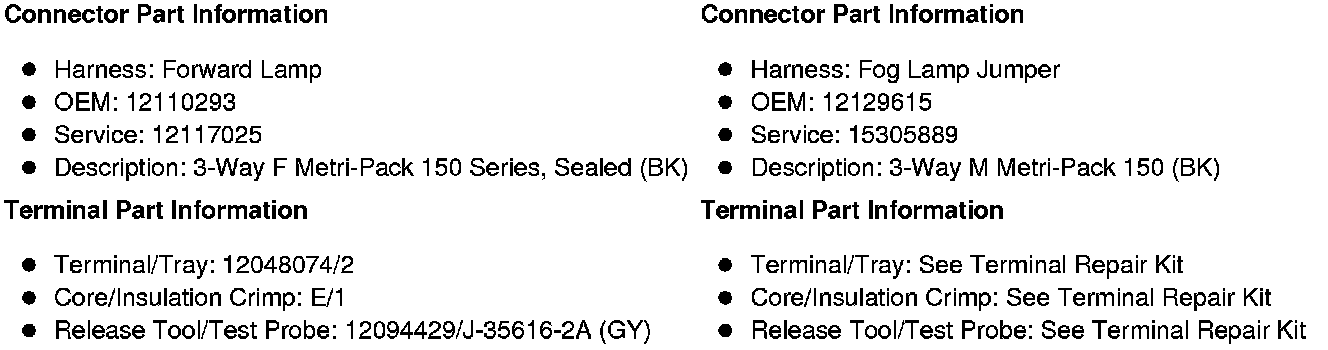

X117 Forward Lamp Harness to Right Front Fog/Cornering Lamp Assembly Harness (T96)
