X114




Inline Harness Connector End Views

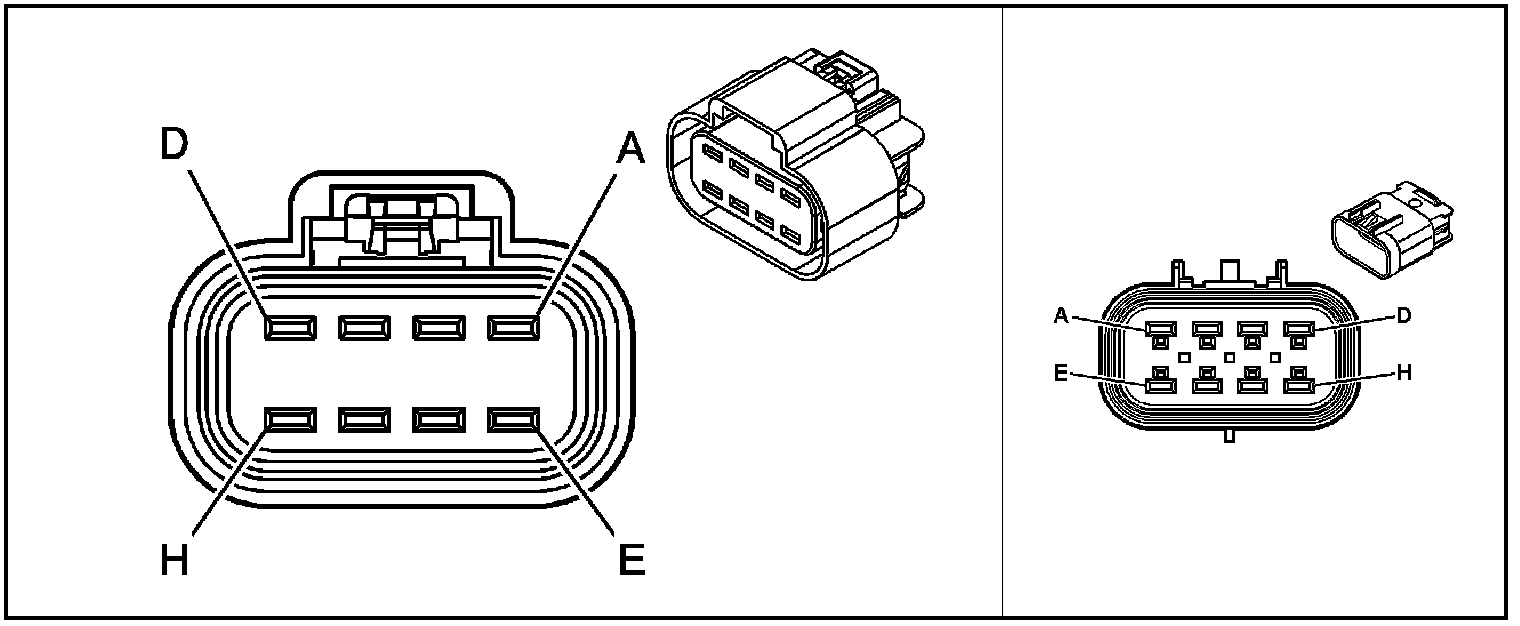

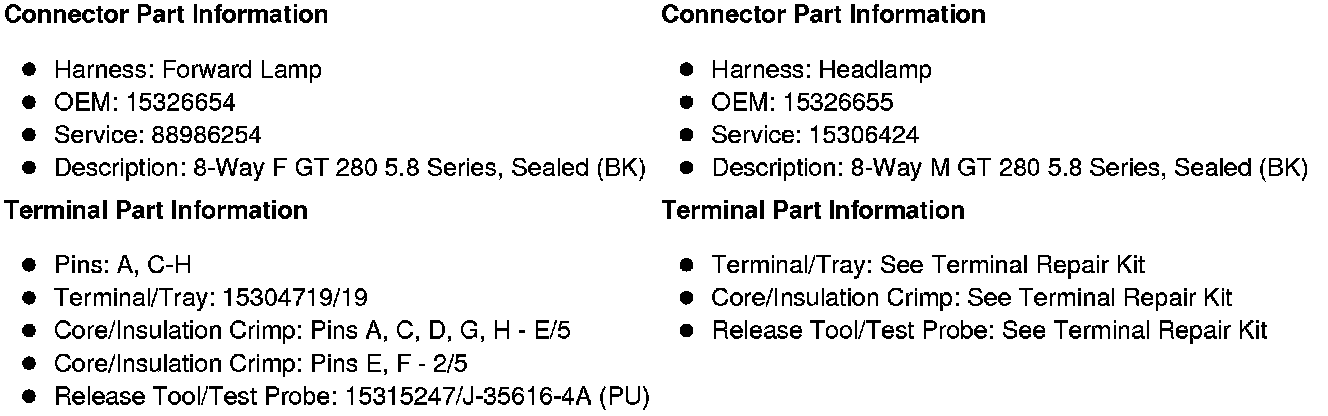

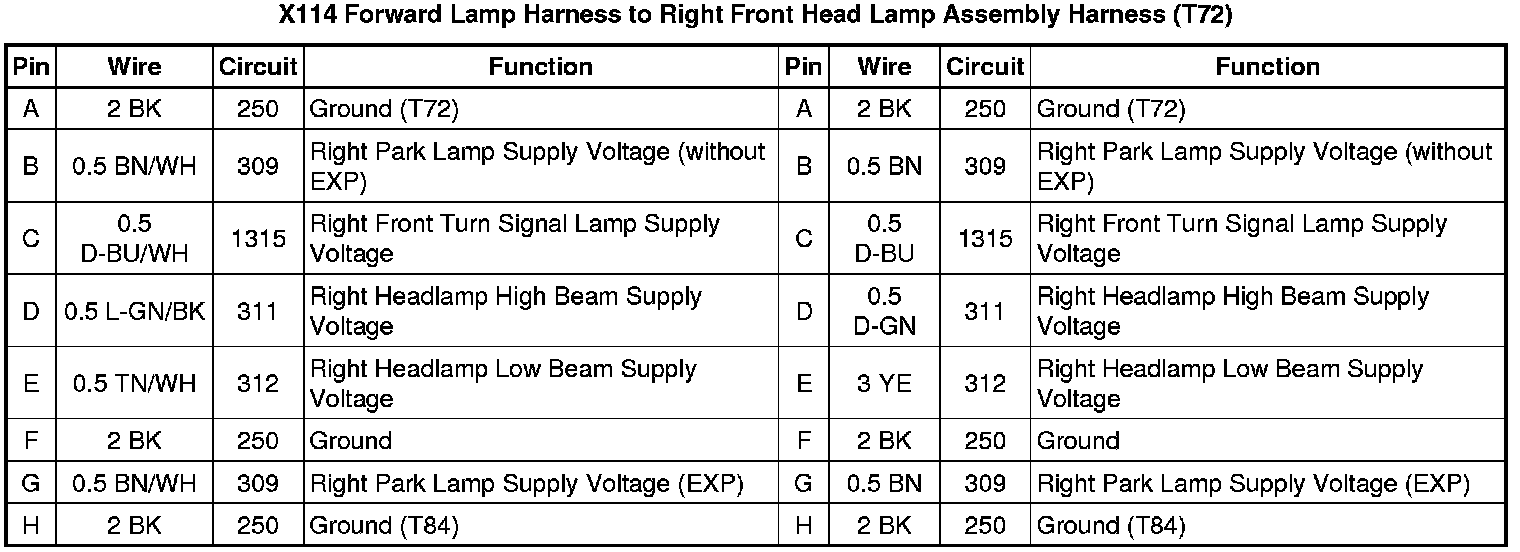

X114 Forward Lamp Harness to Right Front Head Lamp Assembly Harness (T72)

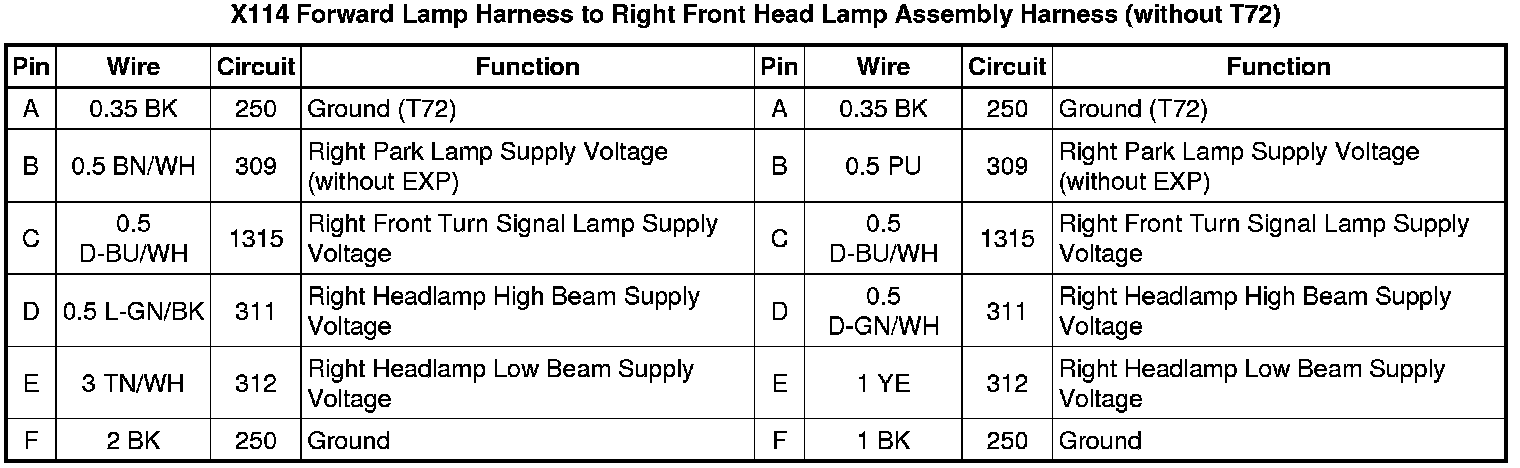

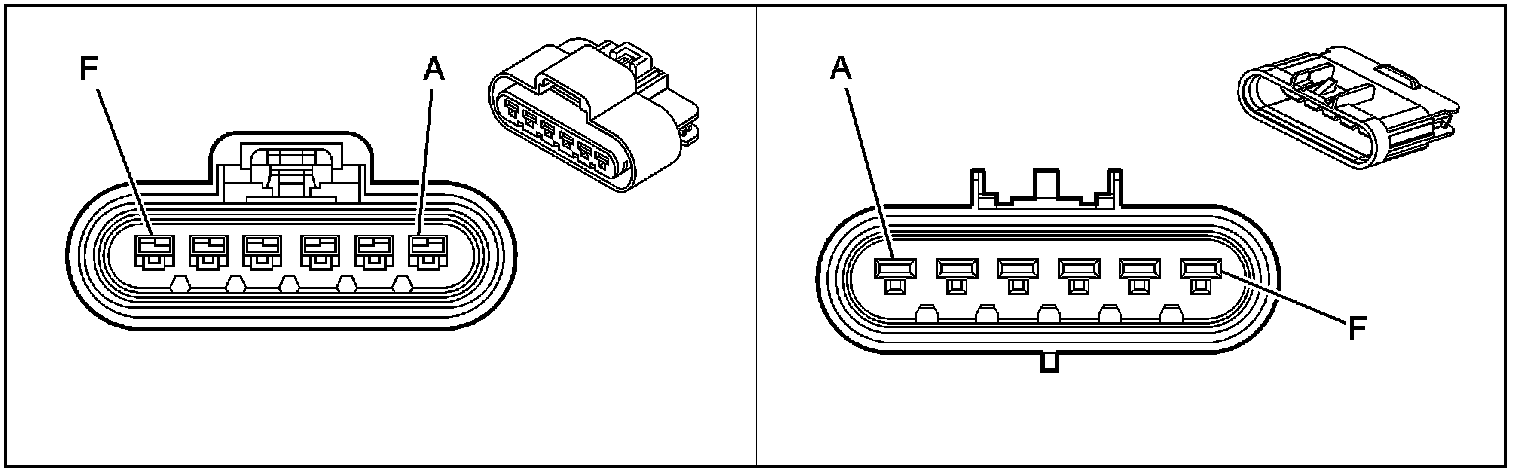

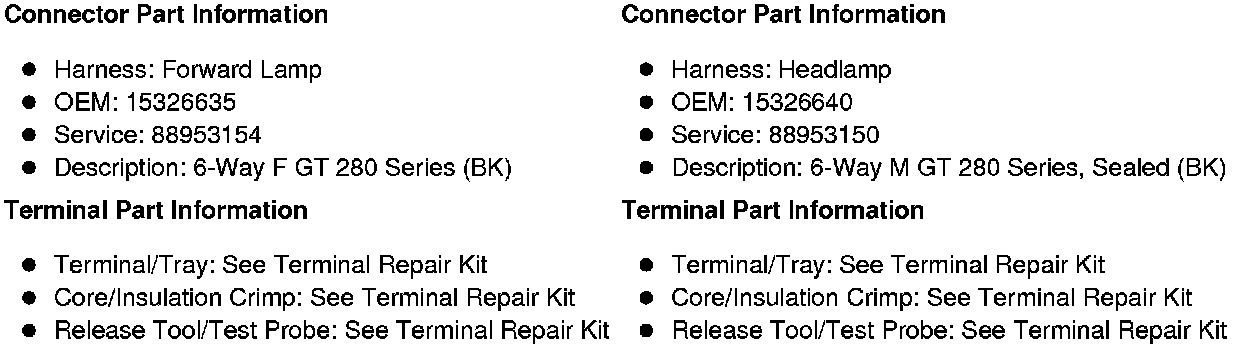

X114 Forward Lamp Harness to Right Front Head Lamp Assembly Harness (without T72)
