X113




Inline Harness Connector End Views

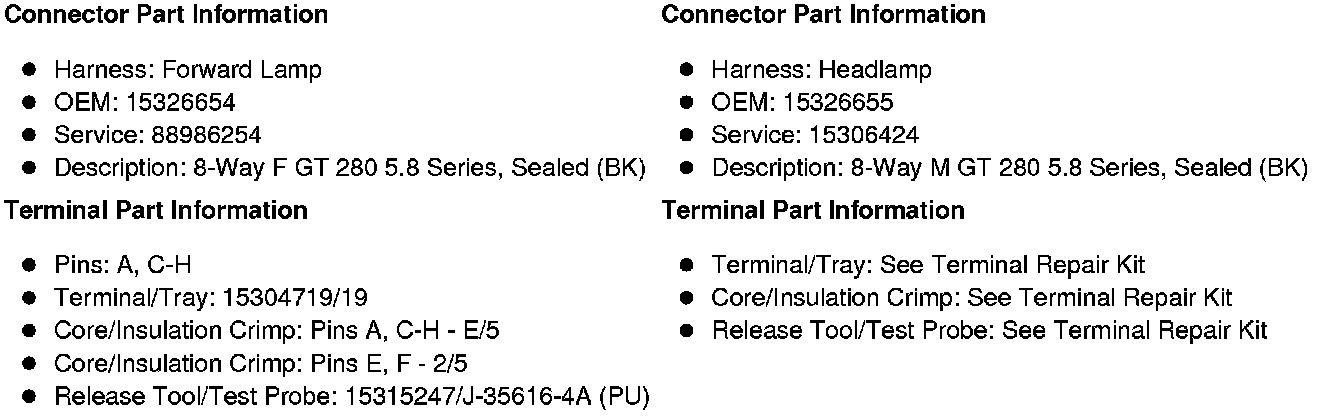

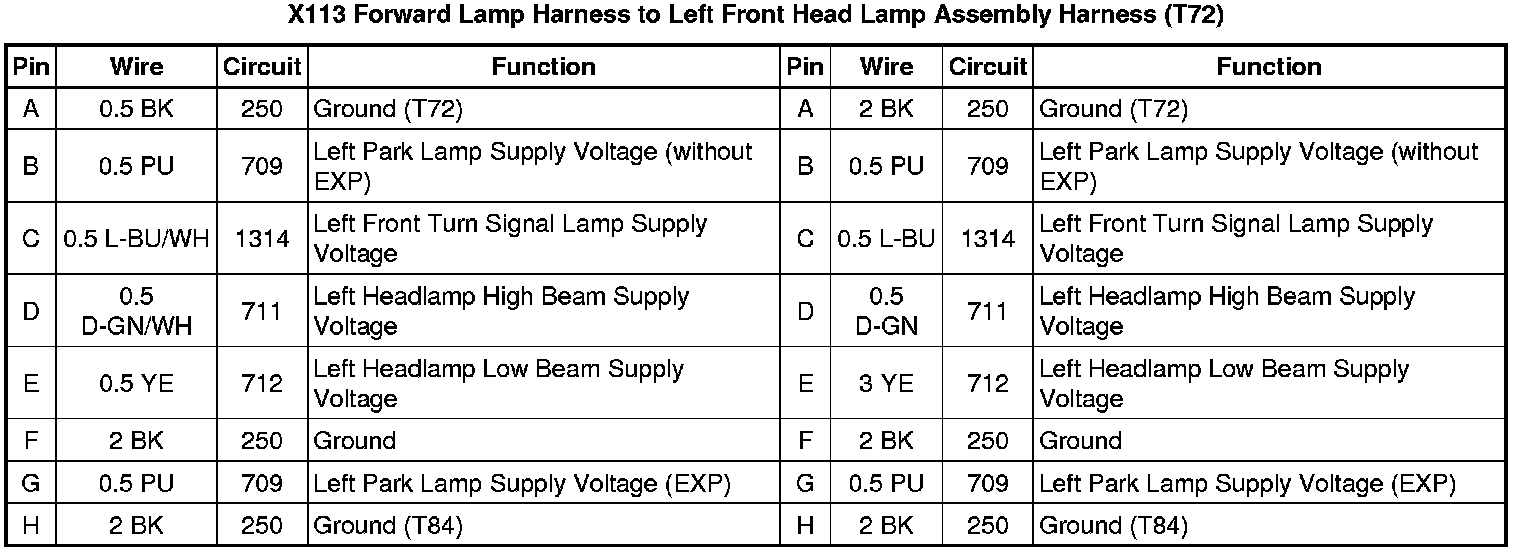

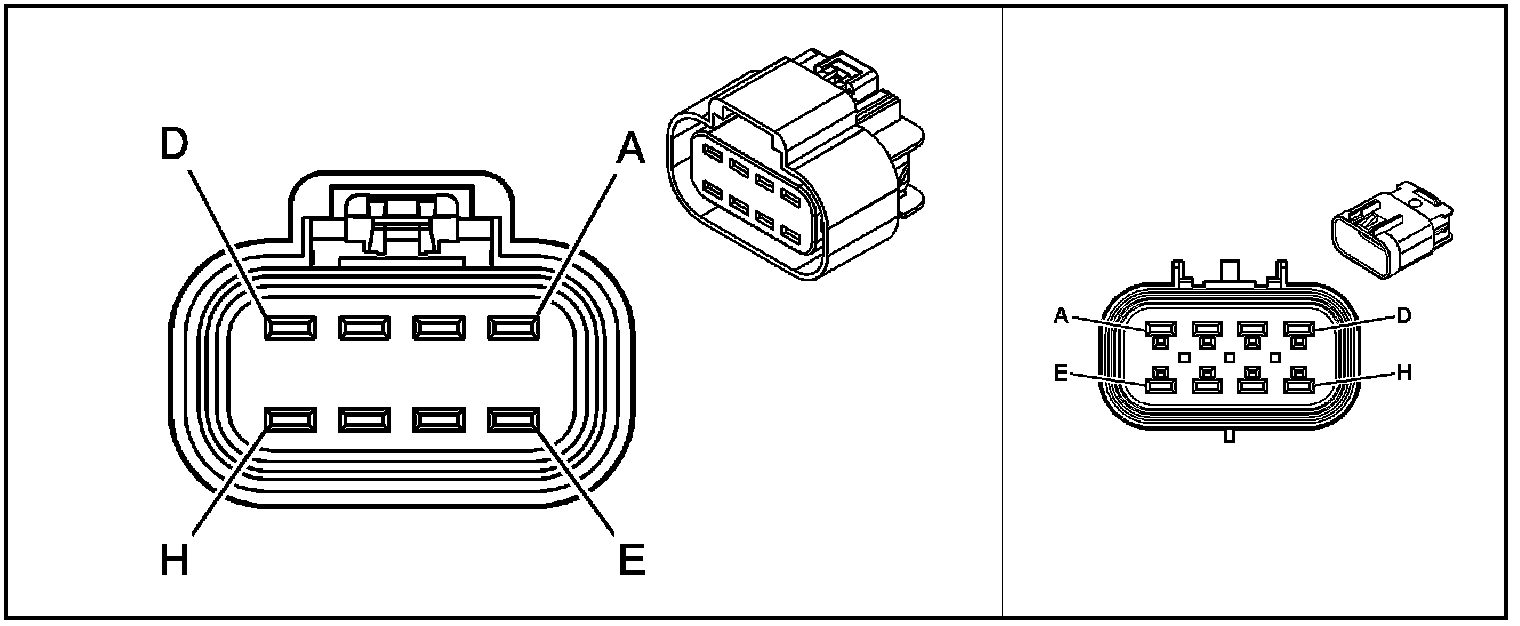

X113 Forward Lamp Harness to Left Front Head Lamp Assembly Harness (T72)

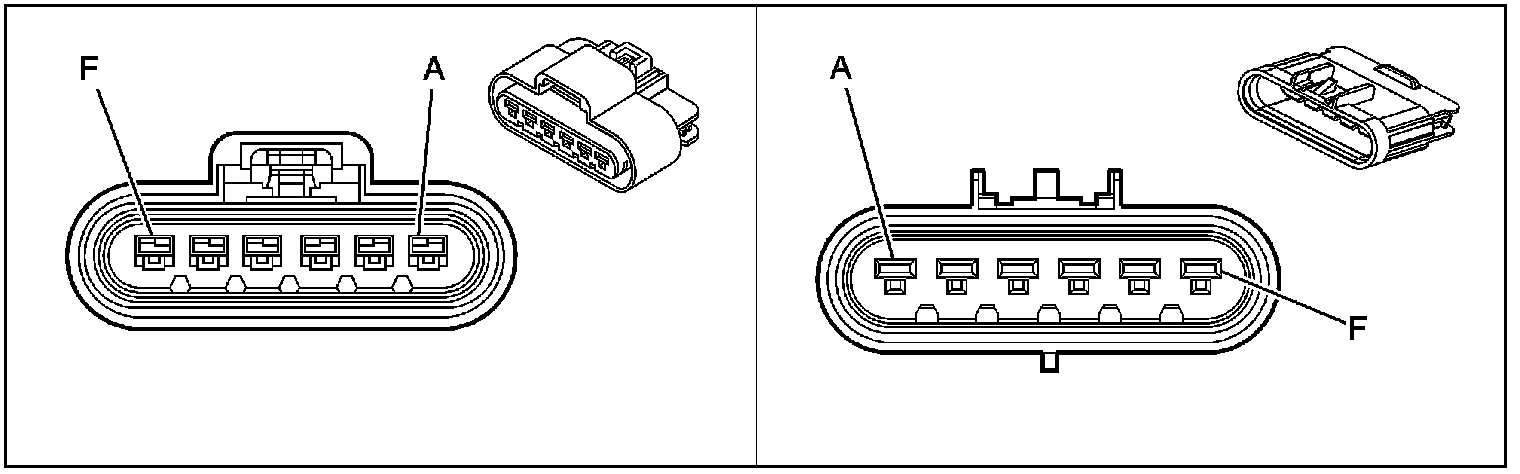

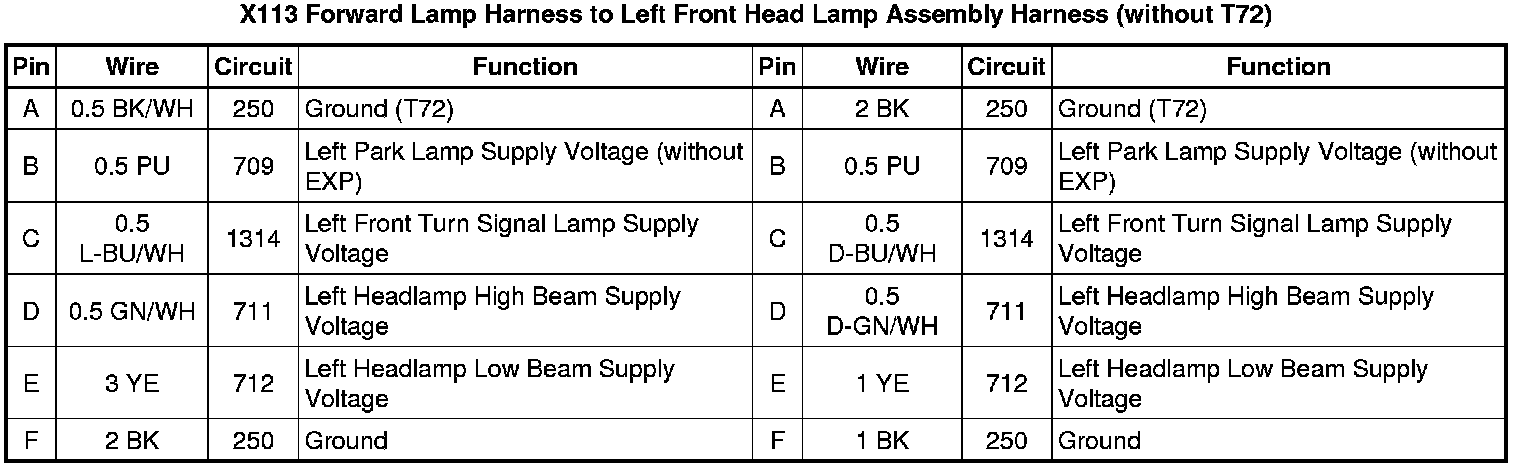

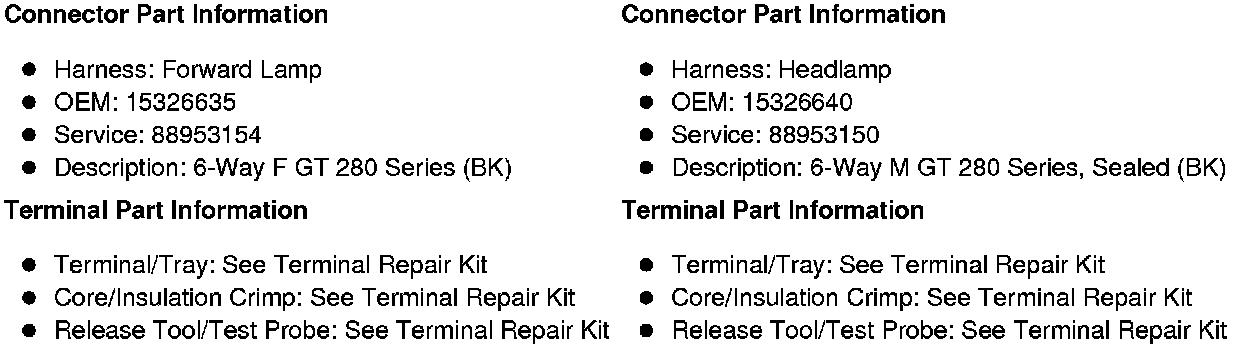

X113 Forward Lamp Harness to Left Front Head Lamp Assembly Harness (without T72)
