Hood Front Seal Replacement

Hood Front Seal Replacement

Removal Procedure

1. Open the hood.

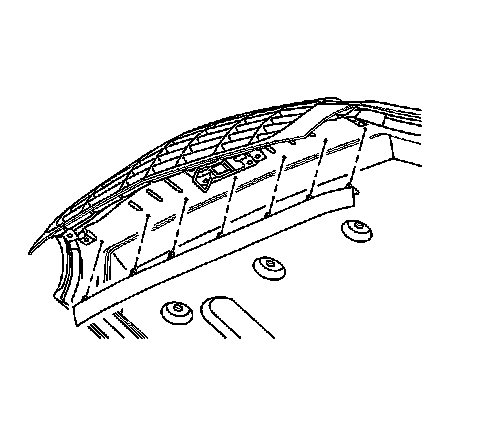

2. Remove the push in retainers that secure the front hood seal to the hood.
3. Remove the front hood seal from the hood.

Installation Procedure




1. Install the front hood seal to the hood.
2. Install the push in retainers in order to secure the front hood seal to the hood.
3. Close the hood.
